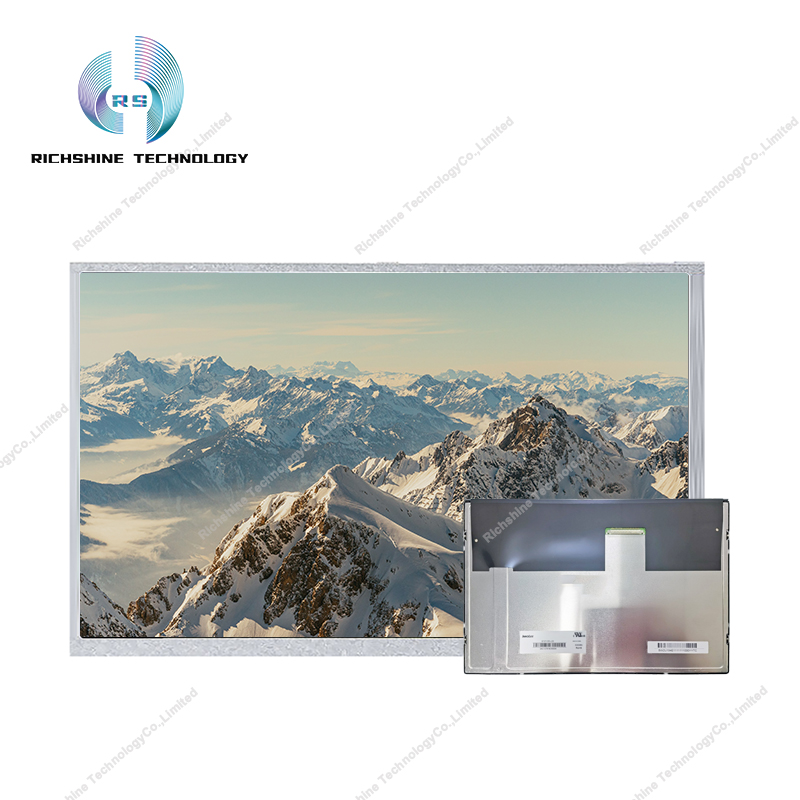

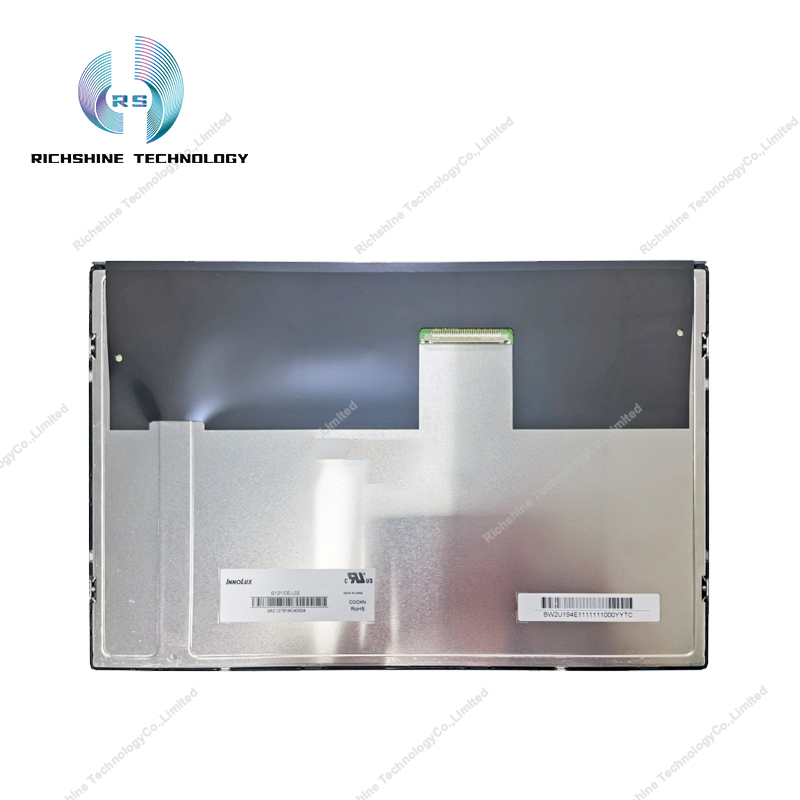

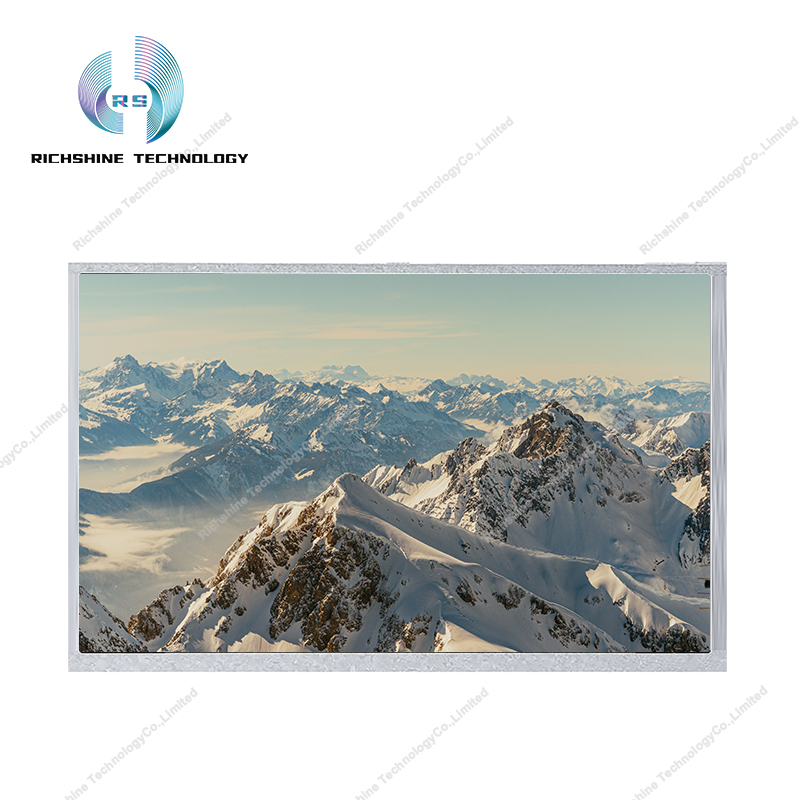

G121ICE-LH2 is a 12.1 inch a-Si TFT-LCD LCD module product introduced by Innolux. It is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -30 ~ 80 ° C, the storage temperature is -30 ~ 85 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: wide temperature, high brightness, white LED backlighting, life of more than 50,000 hours, including LED drive, 180 degree flip display, 6 / 8 bit grey scale optional, surface fog surface, OD follow G121I1-L01. This model is used in industry.The G121ICE-LH2 has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 261.12 × 163.2 (width × height) mm,The visible dimension is 26412 × 166.2 (wide × high) mm, the appearance dimension is 278 (wide) × 184 (high) × 9.61 (thick) mm, and the surface treatment is haze, Hard coating (3H), and the net weight of the product is 470 / 490 g (Typ. / Max.).Backlight aspect of this product uses WLED light source, light source life of 50K hours, including LED driver. The G121ICE-LH2 features an LVDS (1ch, 6 / 8-bit) signal interface, a total of 30 pins, with terminal connections, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
