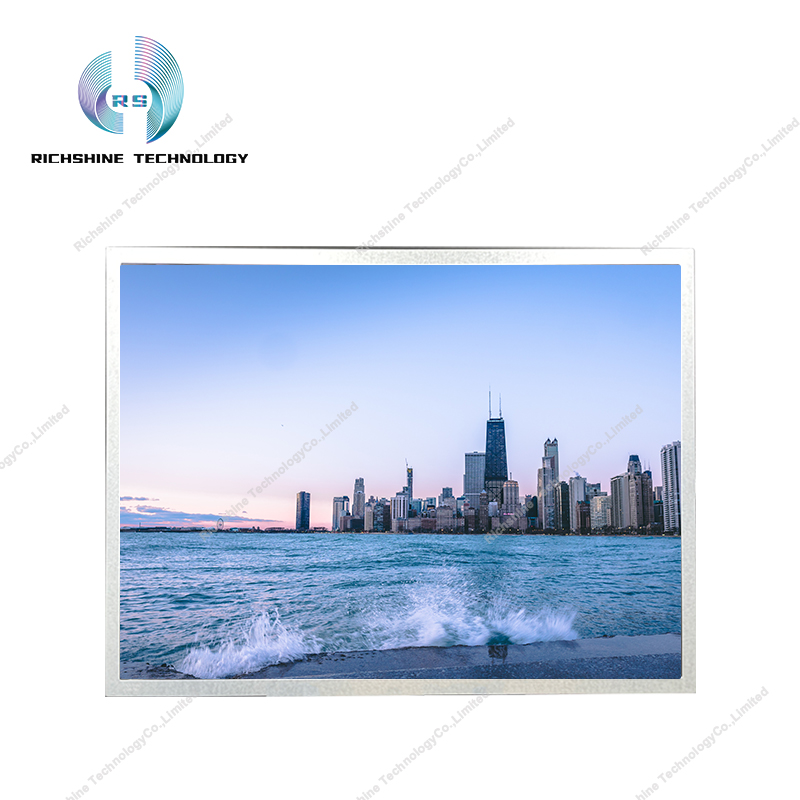

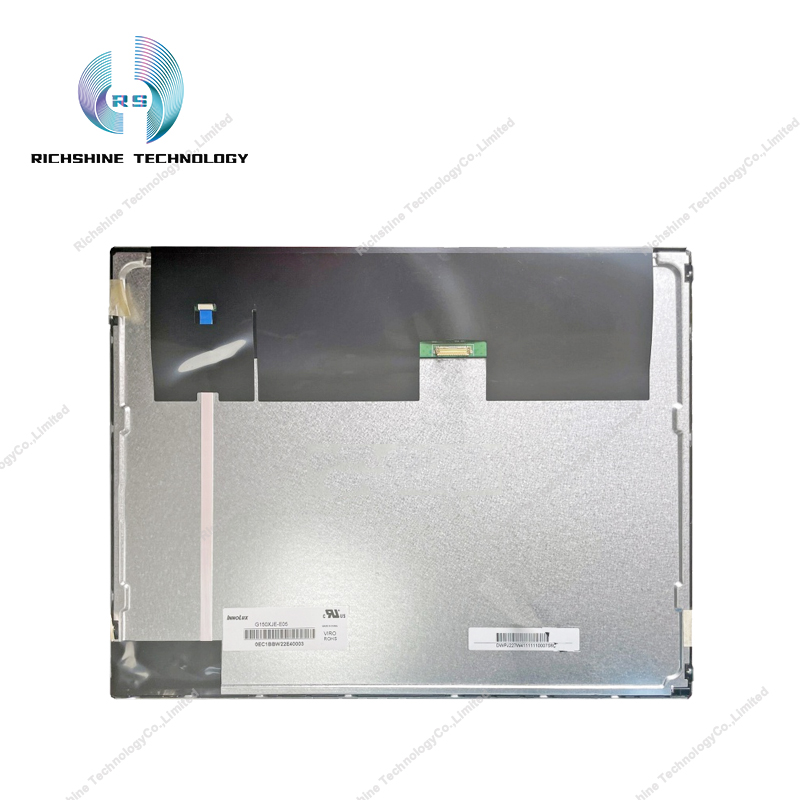

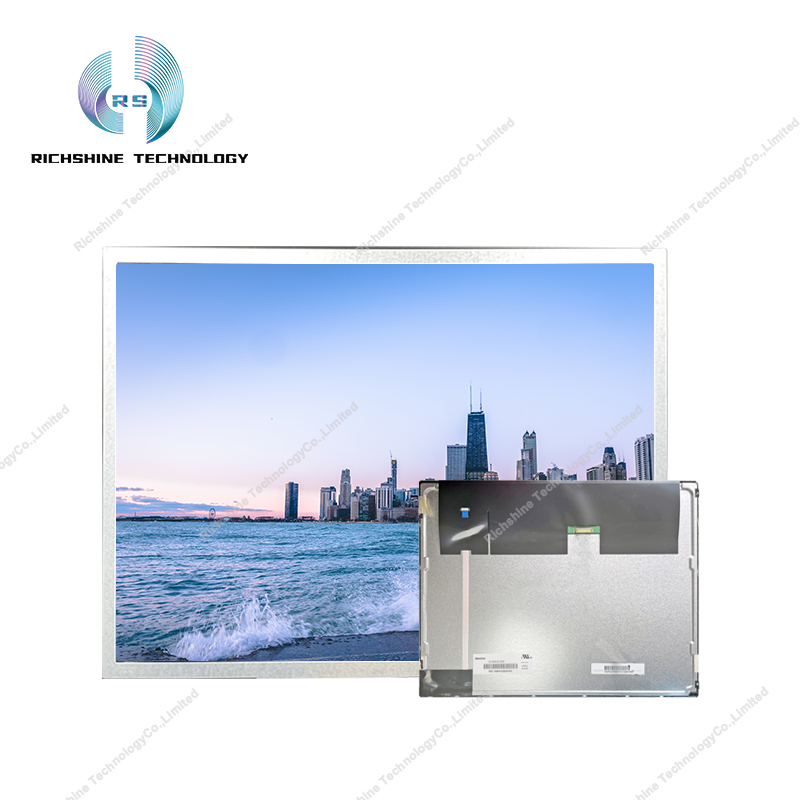

G154ICE-LH1 is a 15.4 inch a-Si TFT-LCD LCD module product introduced by Innolux. It is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -30 ~ 80 ° C, the storage temperature is -30 ~ 80 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: wide temperature, white LED backlight, life more than 50,000 hours, including LED drive, terminal formal, 180 degrees flip display, 6 / 8 gray scale optional, surface fog surface, PSWG. This model is used in industrial and other products.The G154ICE-LH1 has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 331.2 (width) x 207 (height) mm,Exterior size is 352 (wide) x 230 (high) x 10 (thick) mm, visible size is 334.5 (wide) × 2103 (high) mm, surface treatment is fog coating (3H), net weight is 771 / 809 g (Typ. / Max.).Backlight side of this product uses WLED light source (bottom), the service life of the light source is 50K hours, including LED driver. The G154ICE-LH1 uses an LVDS (1ch, 8-bit) signal interface with a total of 30 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
