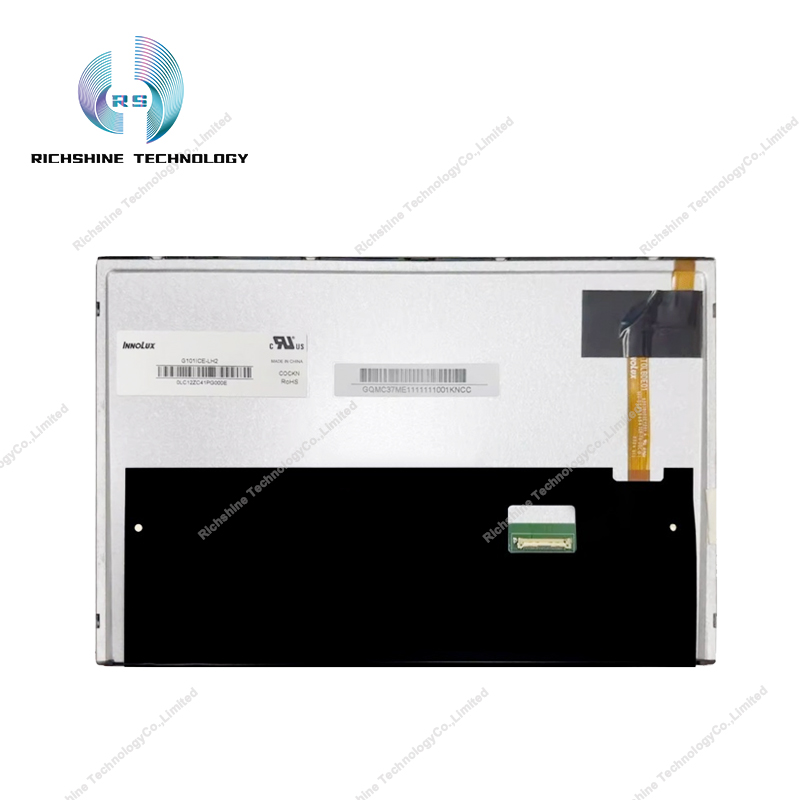

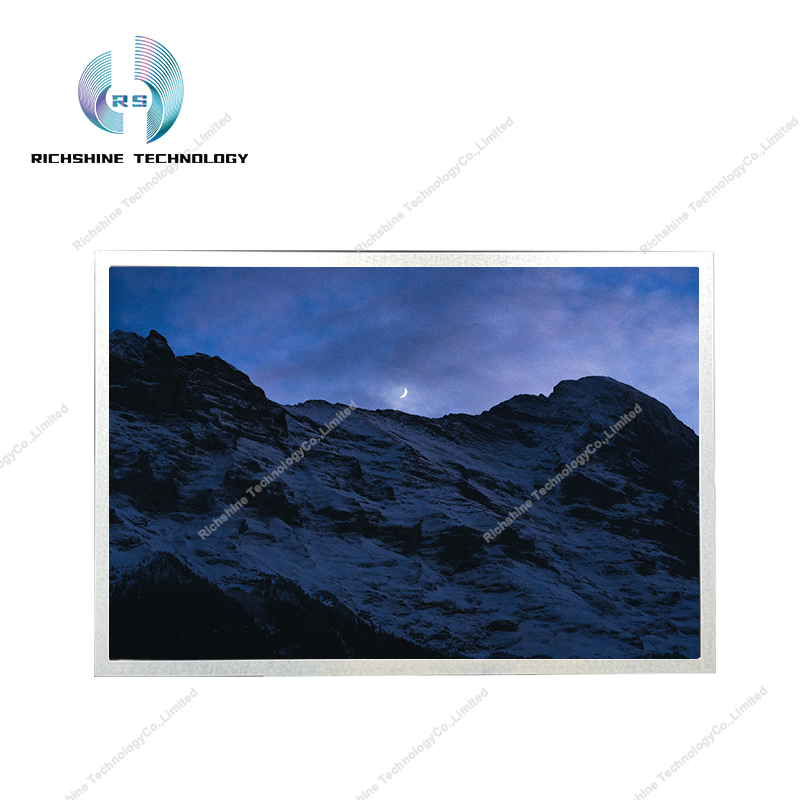

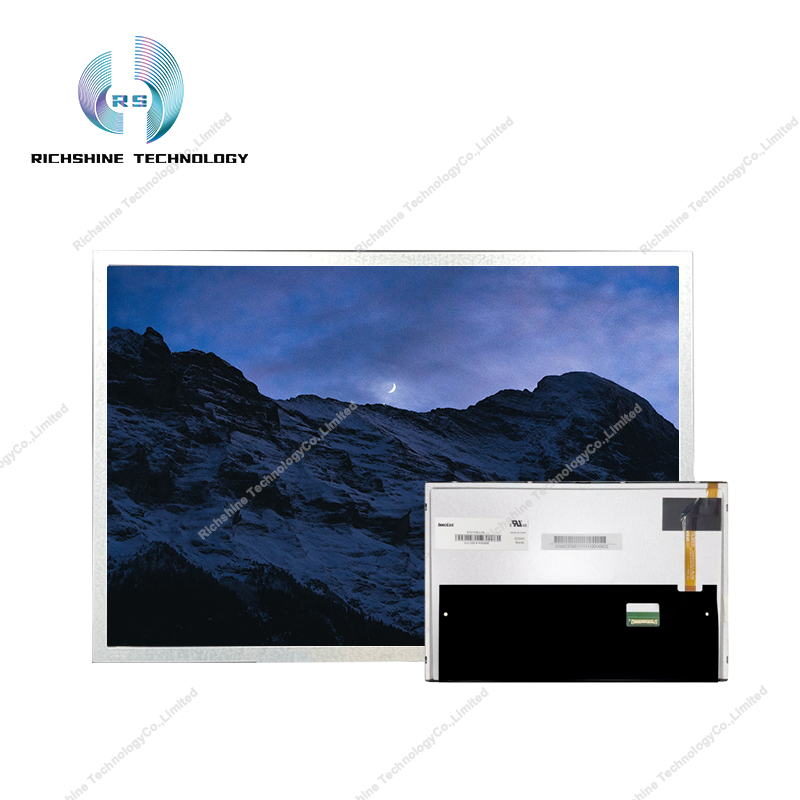

G101ICE-LH2 is a 10.1-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with WLED backlighting, LED-powered backlighting and touchless.The display resolution is 1280 (RGB) × 800 (WXGA), with an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 216.96 × 135.6 (Width × Height) mm, visible size 218.96 × 137.6 (Width × High) mm, exterior size 230.7 × 152.55 (Width × H) × 7 (Thickness) mm, surface treatment a fog face, Hard coating (3H), net weight 300 / 315 g (Typ. / Max.). The backlight aspect of this product uses 11S4P WLED light source, the service life of the light source is 50K hours, including LED driver. The G101ICE-LH2 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 30 pins, with terminal connections and a drive voltage of 5.0 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -40 ~ 80 ° C, storage temperature is -40 ~ 85 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on its wide temperature, ultra-high brightness, white LED backlighting, life of greater than 50,000 hours, including LED drive, terminal backing, 180 degree flip display, 6 / 8 bit gray scale optional, surface fog surface, etc., this model is recommended for use in industrial, outdoor high brightness.
