G101ICE-LM1 10.1 inch WXGA IPS
- Model:
- G101ICE-LM1
G101ICE-LM1 - Related Model
| Model | Version | |
|---|---|---|
| G101ICE-LM1 | Ver0.0 |

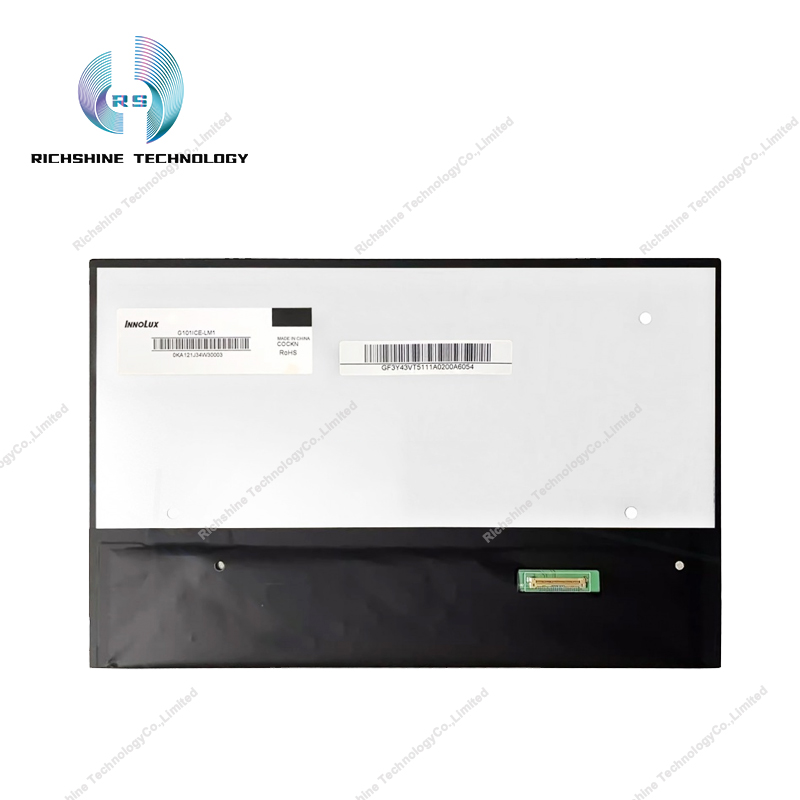

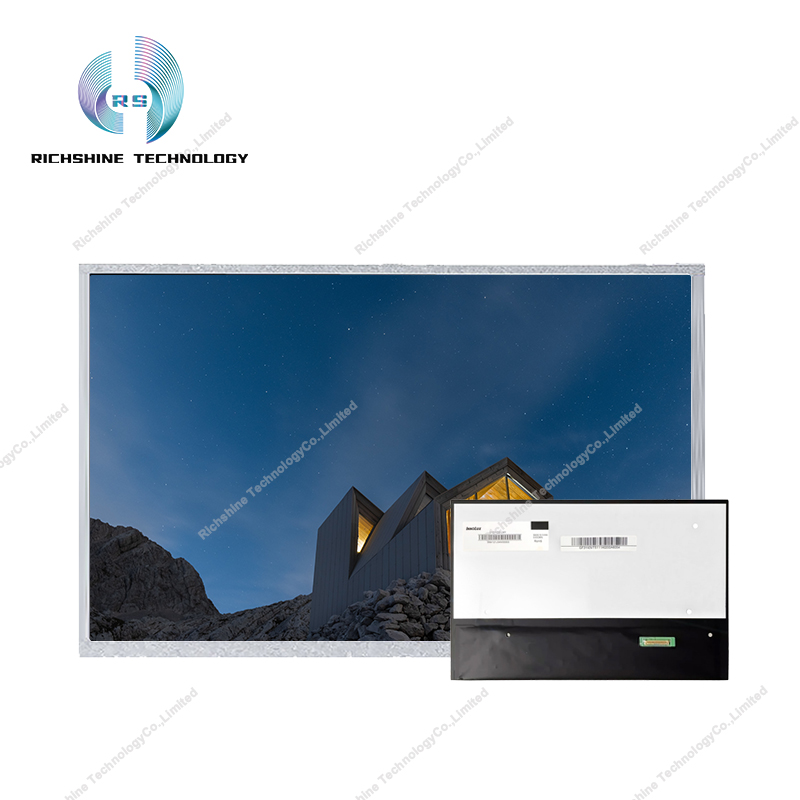

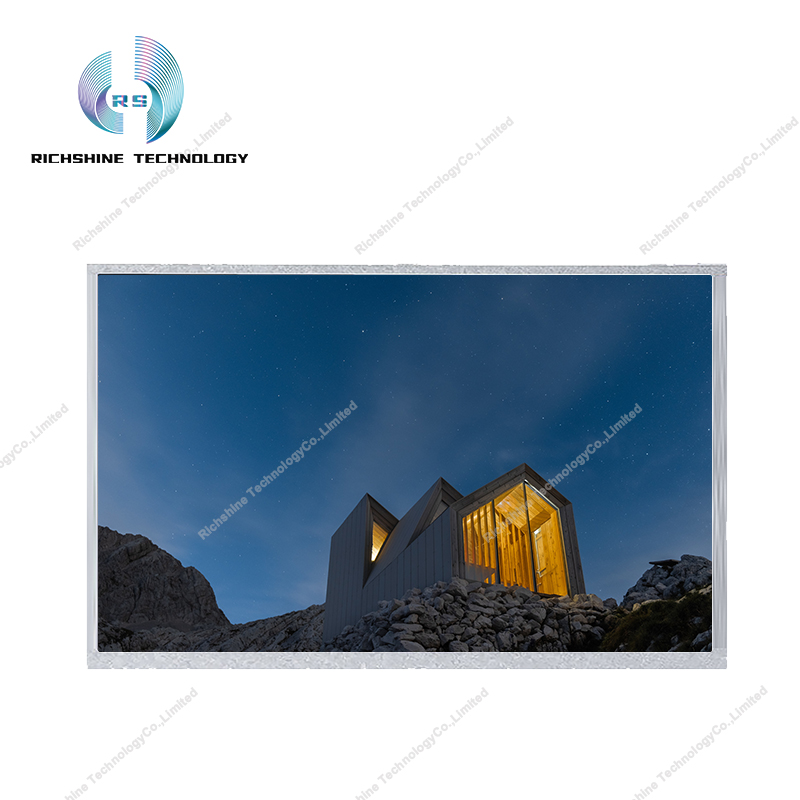

G101ICE-LM1 is a 10.1 inch a-Si TFT-LCD LCD module product introduced by Innolux. It is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -10 ~ 60 ° C, the storage temperature is -20 ~ 70 ° C, and the vibration resistance is 1.5G (14.7m / s2).Its typical features are: white LED backlight, including LED driver, terminal flip, 180 degrees flip display, 6 / 8 gray scale optional, surface fog. This model is used in industrial and other products., G101ICE-LM1 display resolution of 1280 (RGB) × 800 (WXGA), aspect ratio of 1610 (width: height), pixels are arranged in RGB vertical strip.It has a display area dimension of 216.96 (wide) × 135.6 (high) mm, an appearance dimension of 227.42 (wide) x 47.69 (high) × 4.85 (thick) mm, a surface treatment with a fog coating (3H), and a net product weight of 183 / 190 g (Typ. / Max.).The backlight aspect of this product uses a 10S3P WLED light source, the service life of the light source is 12K hours, including LED driver. The G101ICE-LM1 features an LVDS (1ch, 6 / 8-bit) signal interface, a total of 30 pins, with terminal connections and a drive voltage of 5.0 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- G101ICE-LM1 Category :
- Industrial Panel
