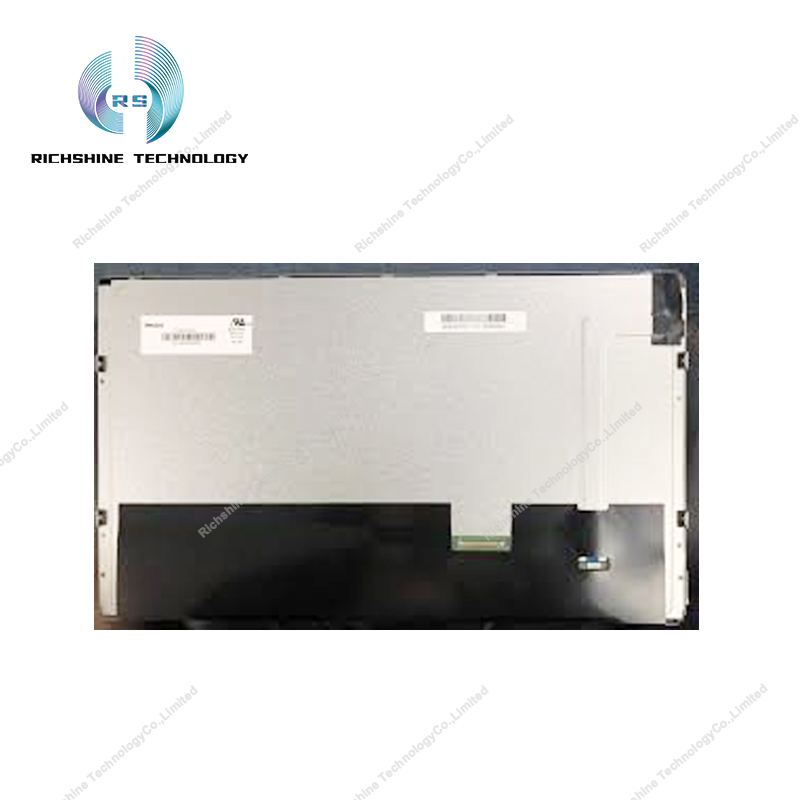

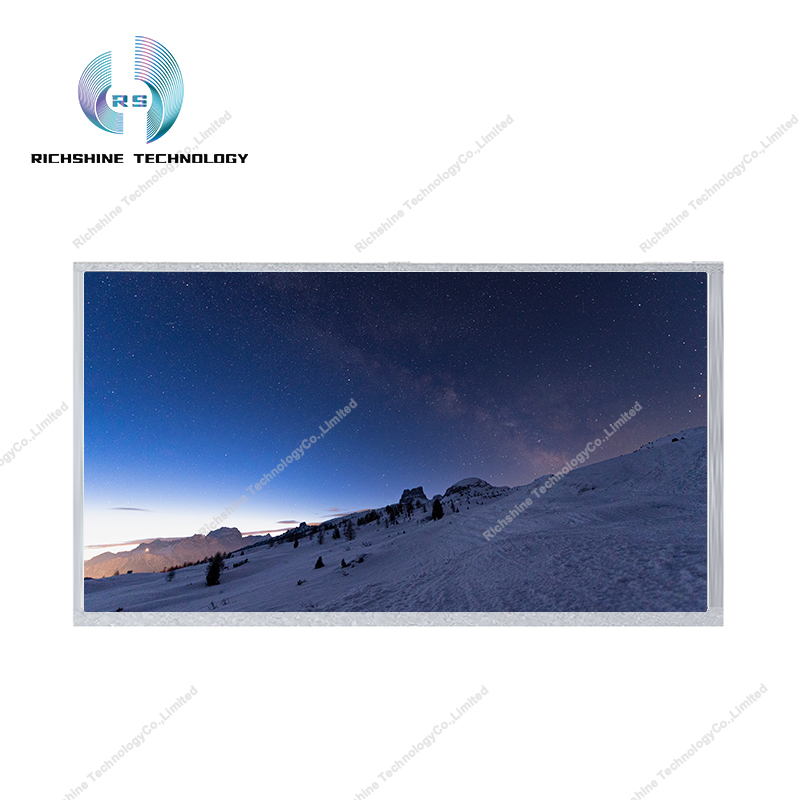

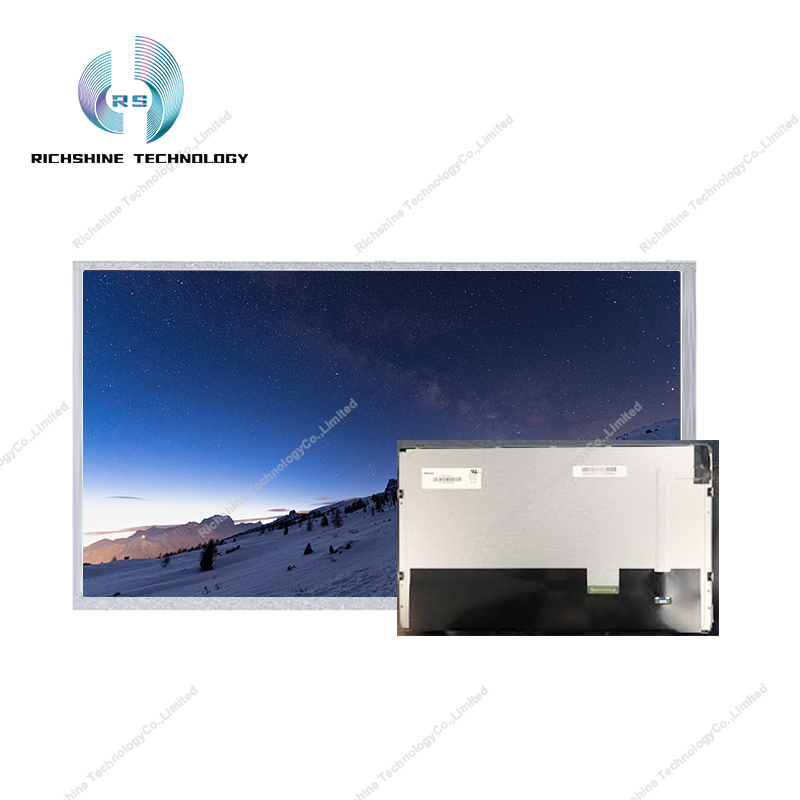

G156HCE-LH1 is a 15.6-inch liquid crystal module product using a-Si TFT-LCD technology by Innolux, Inc., which is fitted with WLED backlighting, LED-powered backlighting and touchless.The G156HCE-LH1 displays a resolution of 1920 (RGB) × 1080 (FHD) with an aspect ratio of 16? 9 (W: H) and pixels arranged in RGB vertical strips. It has a display area dimension of 344.16 × 193.59 (wide × high) mm, a viewing dimension of 347.06 × 196.49 (wide × tall) mm, an appearance dimension of 363.8 × 215.9 (wide × h) × 12.5 (thick) mm, and a surface treatment of fog, hard coating (3H), with a net weight of 815 ± 41 g. Backlight aspect of this product uses WLED light source, light source life of 50K hours, including LED driver. The G156HCE-LH1 uses an LVDS (2ch, 8-bit) signal interface with a total of 40 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -30 ~ 80 ° C, storage temperature is -40 ~ 90 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on its wide temperature, ultra-high brightness, white LED backlight, life of more than 50,000 hours, including LED drive, surface fog surface and other characteristics, this model is recommended for industrial, outdoor highlights, games.
