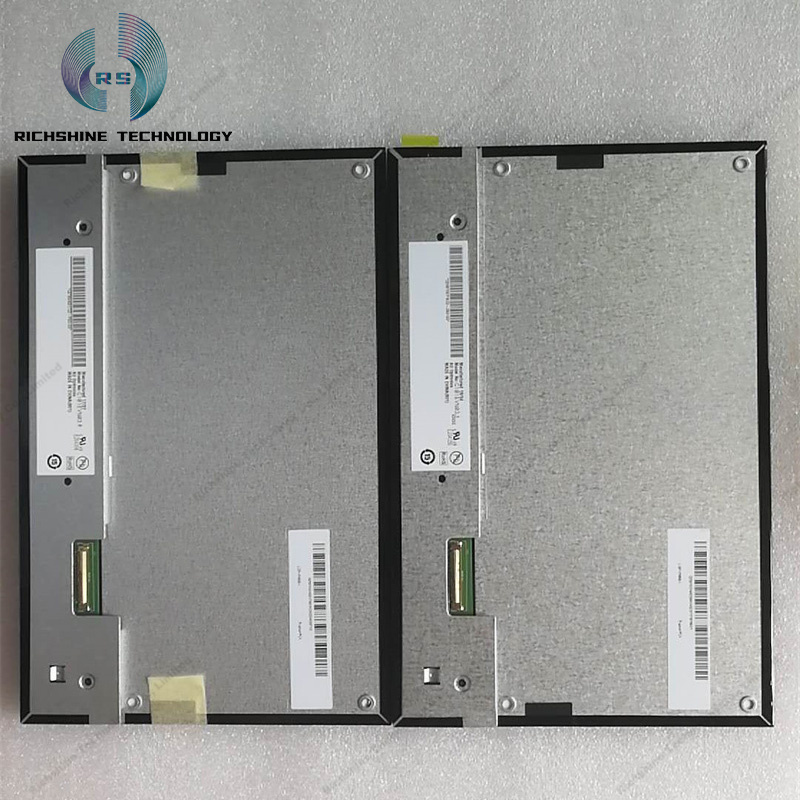

G101STN01.D (product code: AUO10D2) is a 10.1-inch a-Si TFT-LCD liquid crystal module product launched by AUO, featuring WLED backlighting, including an LED driver for backlighting, and no touch functionality. This product operates within a temperature range of -10 to 60°C for operation and -30 to 70°C for storage, with vibration resistance of 1.5G (14.7 m/s²). Its typical features include white light LED backlighting, a lifespan of over 50,000 hours, an LED driver, reverse-mounted terminals, 6/8-bit grayscale options, and a matte surface finish. As a TN, full-white display, transmissive LCD module product, G101STN01 .D offers a display brightness of 450 cd/m², a transmittance contrast ratio of 500:1, and viewing angles of 70/70/60/60 (Typ.) (CR ≥ 10) (left/right/top/bottom). Its response time is 7/9 (Typ.) (Tr/Td) ms. Due to the use of 6-bit/6-bit + Hi-FRC gray-scale signals per pixel, this product can display 262K/16.7M colors, with a color saturation of 45% (NTSC). The backlight employs WLED-lit side-illumination sources, with a lifespan of 50K hours and an LED driver included. G101STN01- .D utilizes LVDS (1 channel, 6/8-bit) signal interface with a total of 40 pins, connected via terminals, and operates at a driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz. This model is used in industrial applications.
