G101EVN03.1 10.1 inch WXGA 1280x800
- Model:
- G101EVN03.1
G101EVN03.1 - Related Model
| Model | Version | |
|---|---|---|
| G101EVN03.1 | Final Ver1.2 | |
| G101EVN03.1 |

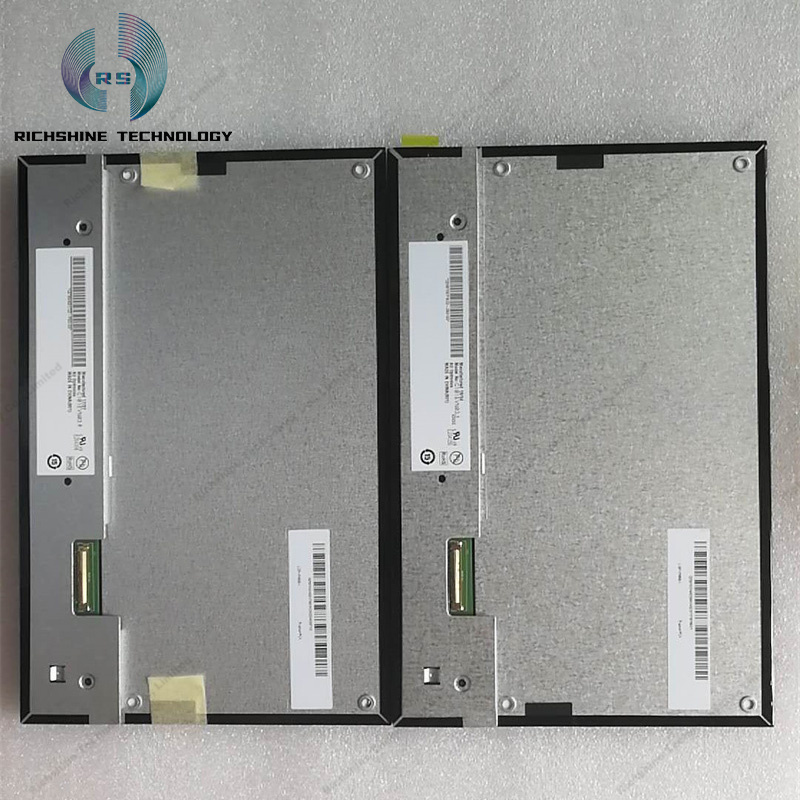

G101EVN03.1 is a 10.1-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with a WLED backlight, no backlight drive, and no touch. As a MVA, constant black display, transmission LCD module product, G101EVN03.1 can provide 1000 cd / m2 display brightness 1300: 1 transmission contrast,As well as the viewing angle of 85 / 85 / (85 (Typ.) (CR ≥ 10) (L / R / U / D), the optimal viewing angle is full view, and its response time is 25 (Typ.)(Tr + Td) ms. With a 6-bit / 6-bit + FRC grayscale signal per pixel, this product can display 262 K / 16.2M color, and its display color saturation reaches 45% (NTSC). Backlight aspect of this product uses WLED light source, the service life of the light source is 50K hours, without backlight drive. The G101EVN03.1 features an LVDS (1ch, 6 / 8-bit) signal interface, 40 pins in total, with terminal connections, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -20 ~ 70 ° C, storage temperature is -30 ~ 70 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on its ultra-high brightness, white LED backlighting, life of greater than 50,000 hours, terminal backing, 6 / 8 bit grey scale optional, surface mirroring, and other features, this model is recommended for use in industrial, outdoor high-brightness products.
