G101EVN01.3 10.1 inch WXGA 1280x800
- Model:
- G101EVN01.3
G101EVN01.3 - Related Model
| Model | Version | |
|---|---|---|
| G101EVN01.3 | Ver1.1 | |
| G101EVN01.3 |

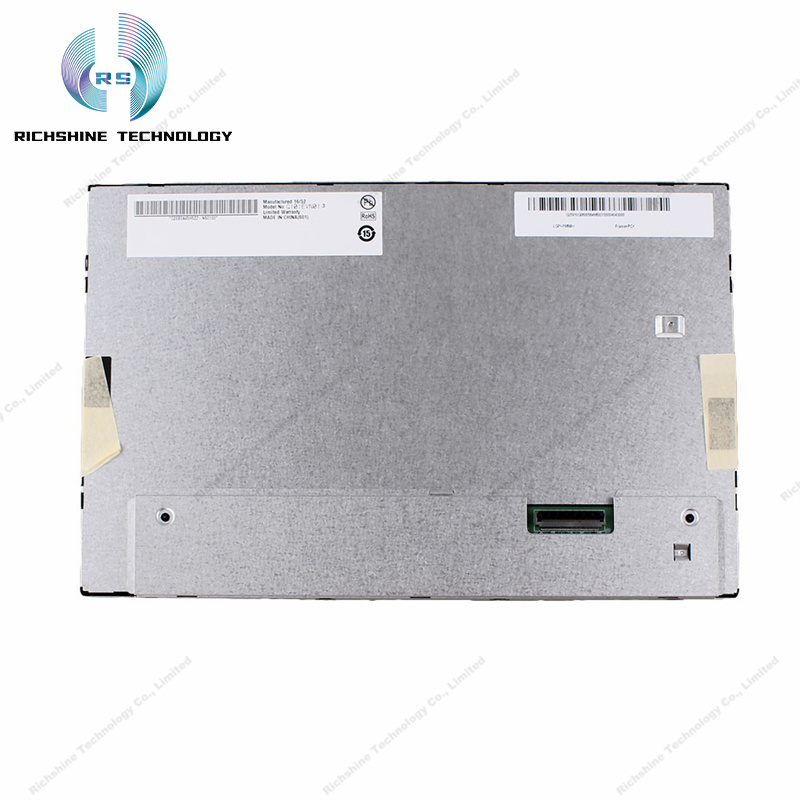

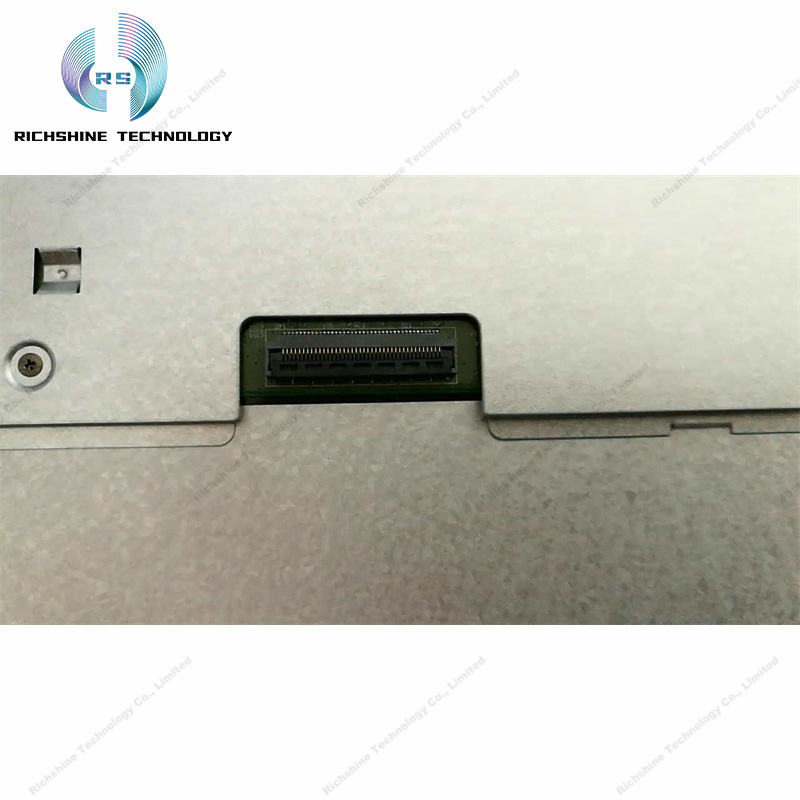

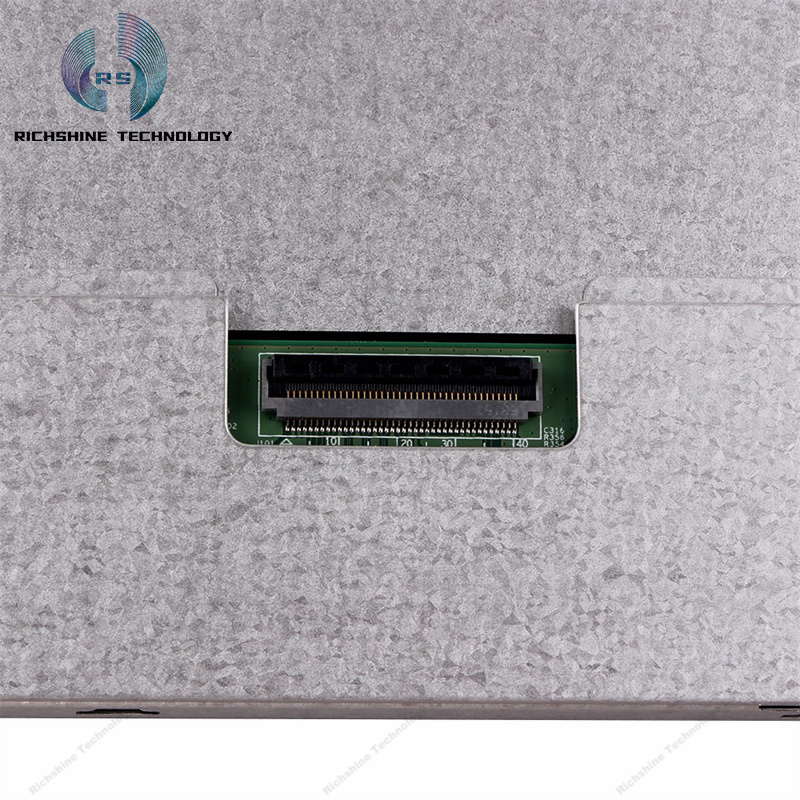

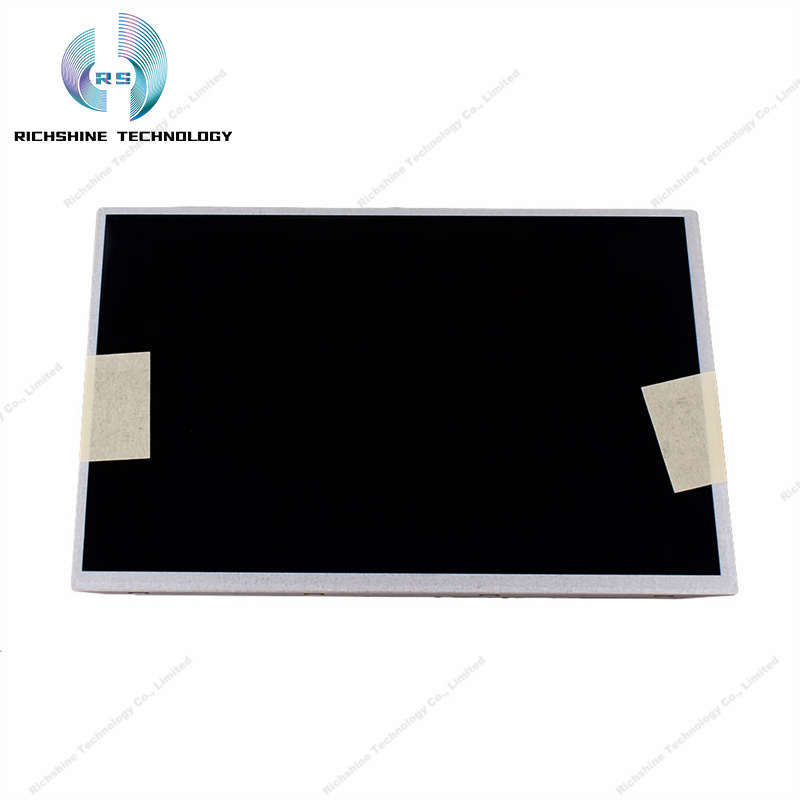

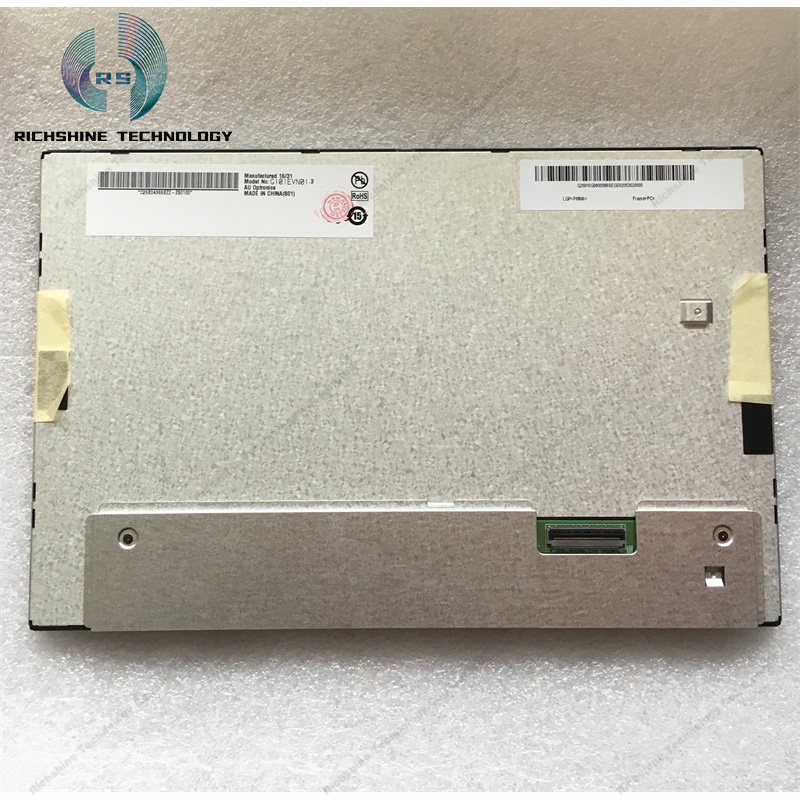

G101EVN01.3 is a 10.1-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with WLED backlighting, LED-powered backlighting and touchless.The display resolution is 1280 (RGB) × 800 (WXGA), with an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 216.96 × 135.6 (Width × Height) mm, visible size 220.36 × 139.1 (Width × High) mm, exterior size 227.91 × 148 (Width × H) × 8.34 (Thickness) mm, surface treatment Hard coating, reflectance 1.5% (Typ.), net product weight 350g (Max.). Backlight side of this product uses WLED light source, the service life of the light source is 50K hours, including LED driver. The G101EVN01.3 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 40 pins, terminal connections, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -20 ~ 70 ° C, and its storage temperature is -30 ~ 80 ° C.Based on its white LED backlight, life more than 50,000 hours, including LED driver, terminal flip, 6 / 8 gray scale optional features, this model is recommended for industrial use.
- G101EVN01.3 Category :
- Other
- Specification
