V236BJ1-LE2 23.6 inch WXGA IPS
- Model:
- V236BJ1-LE2
V236BJ1-LE2 - Related Model
| Model | Version | |
|---|---|---|
| V236BJ1-LE2 | Ver2.0 |

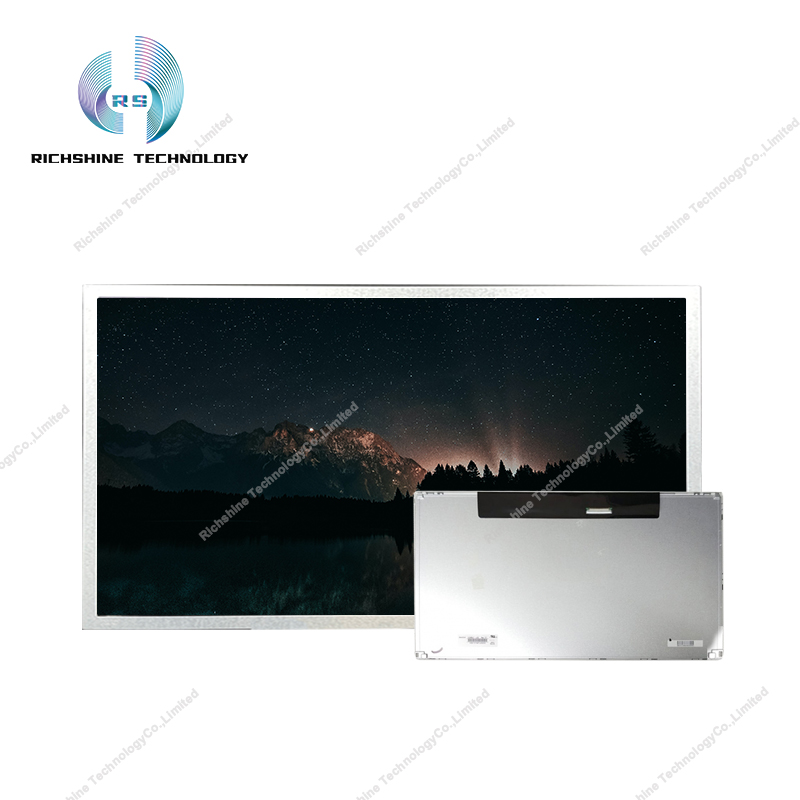

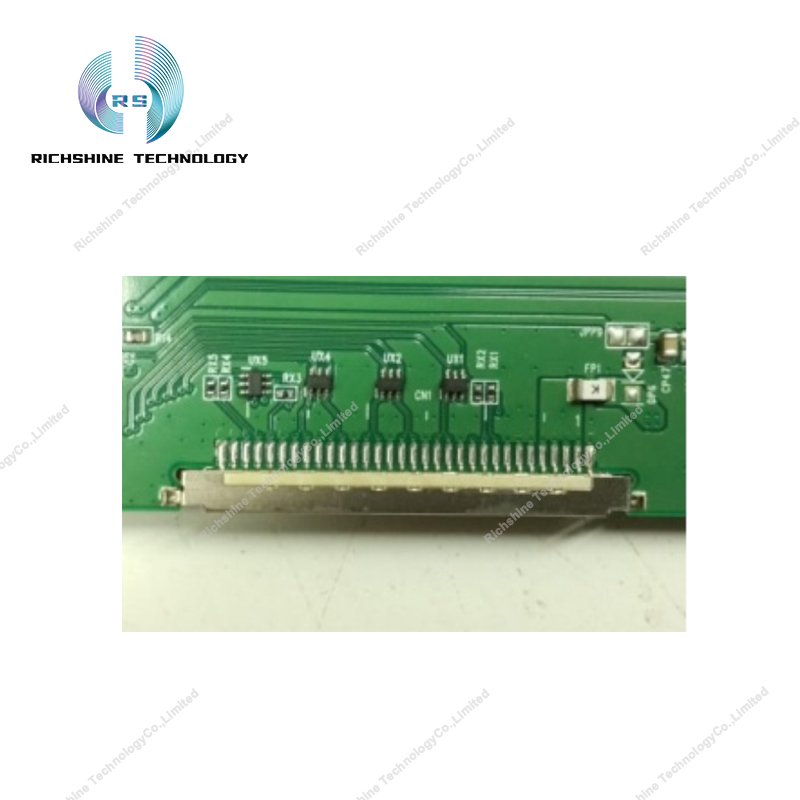

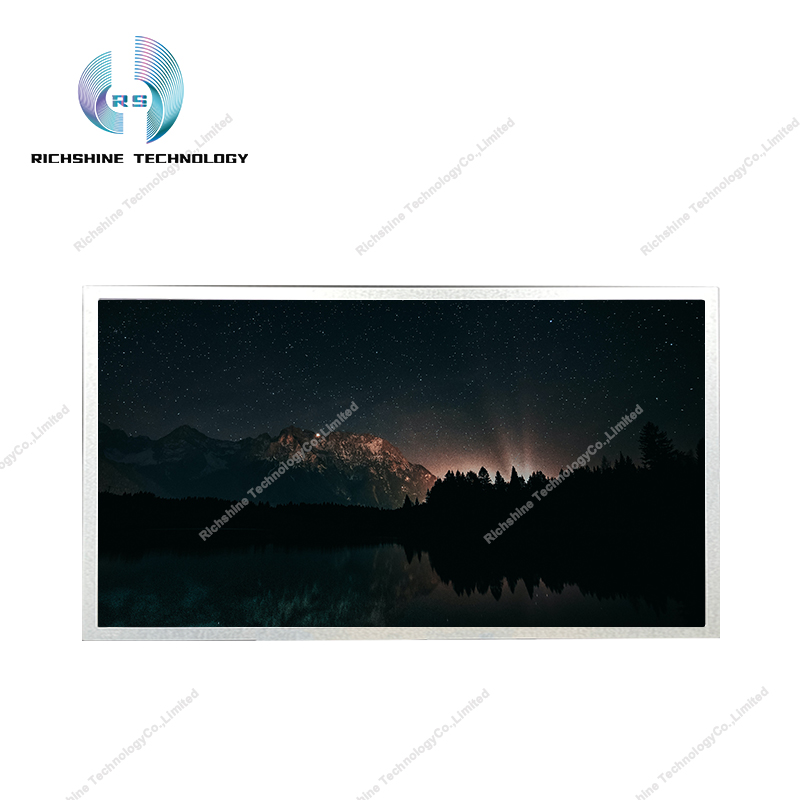

V236BJ1-LE2 is a 23.6 inch LCD module using a-Si TFT-LCD technology by Innolux. It is equipped with WLED backlight, no backlight driver, no touch. Its typical features are: white LED backlight, terminal formal, surface fog.Its working temperature is 0 ~ 50 ° C, and its storage temperature is -20 ~ 60 ° C. This model is suitable for use in televisions.The V236BJ1-LE2 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. It has a display area dimension of 521.471 × 293.184 (wide × high) mm, a viewing dimension of 525.22 × 297.22 (wide × tall) mm, an appearance dimension of 544.8 (wide) × 320.5 (high) × 12.4 (thick) mm, and a surface treatment of fog (Haze 1%), Hard coating (3H), Product net weight 2.10 ± 0.09 Kgs.The backlight aspect of this product uses a WLED light source (right), the service life of the light source is 30K hours, without backlight drive. The V236BJ1-LE2 uses an LVDS (1ch, 8-bit) signal interface, a total of 30 pins, terminal connection, drive screen voltage of 12.0 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- V236BJ1-LE2 Category :
- Monitor Panel
- Specification
