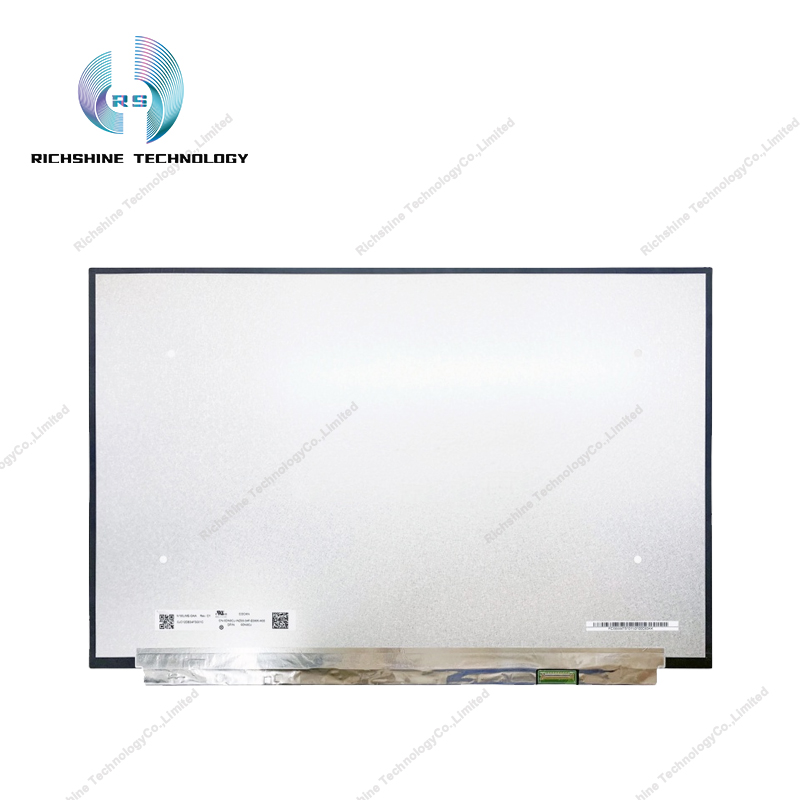

The N180JME-GAA is a 18.0-inch LCD module product launched by Innolux that employs LTPS TFT-LCD technology. It features WLED backlighting, including an LED driver for backlighting, and is non-touch. Its typical characteristics are: DCI-P3, sRGB, 480Hz, white light LED backlight, with an LED driver, reverse-mounted terminals, matte surface finish, DCI-P3 100% LBL, 480Hz, eDP1.4b. Its operating temperature range is 0 to 50°C, storage temperature range is -20 to 60°C, and it is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). This model is suitable for use in laptops and gaming. The N180JMEA-GAA has a display resolution of 1920 (RGB) × 1200 (WUXGA), a 16:10 (width: height) aspect ratio, and RGB vertical stripe pixel arrangement. Its display area dimensions are 387.763 × 242.352 (width × height) mm, and the visible area dimensions are 390.36 × 244.95 (width × height) mm. The physical dimensions are 394.26 (width) × 264.3 (height) × 3 (thickness) mm, with a matte surface finish and a hard coating (3H). The product weighs 610/620g (typ./max.). In terms of backlighting, this product uses WLED-lit side-illuminated light sources. The light source’s lifespan is 15K hours, and it includes an LED driver. The N180JMA-GAA utilizes an eDP (4 lanes) signal interface with a total of 40 pins and is connected via terminals. The driving voltage is 3.3V (typ.). Its typical vertical refresh rate Fv is 480Hz.
