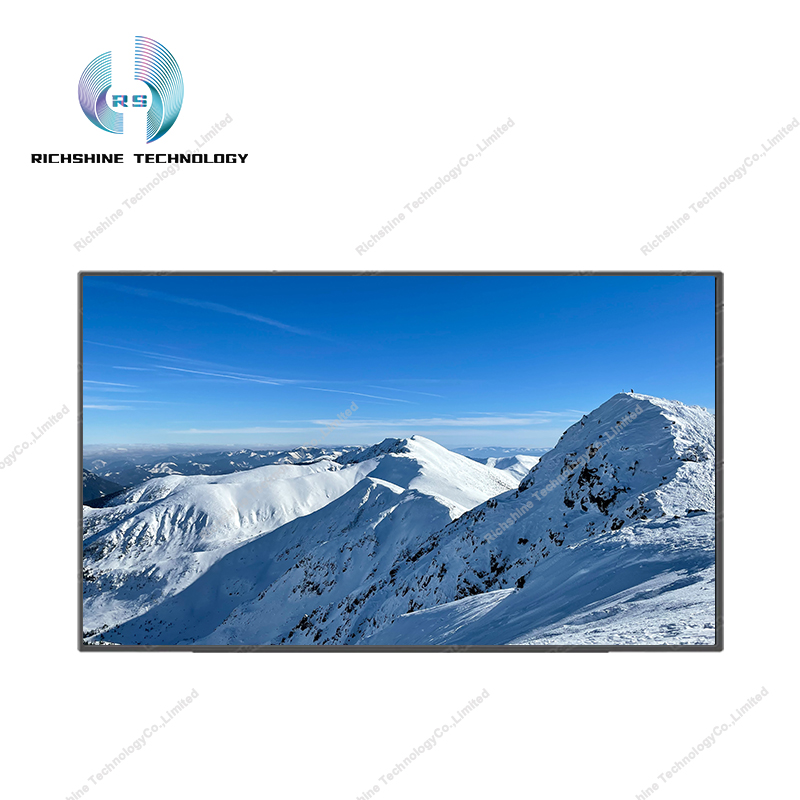

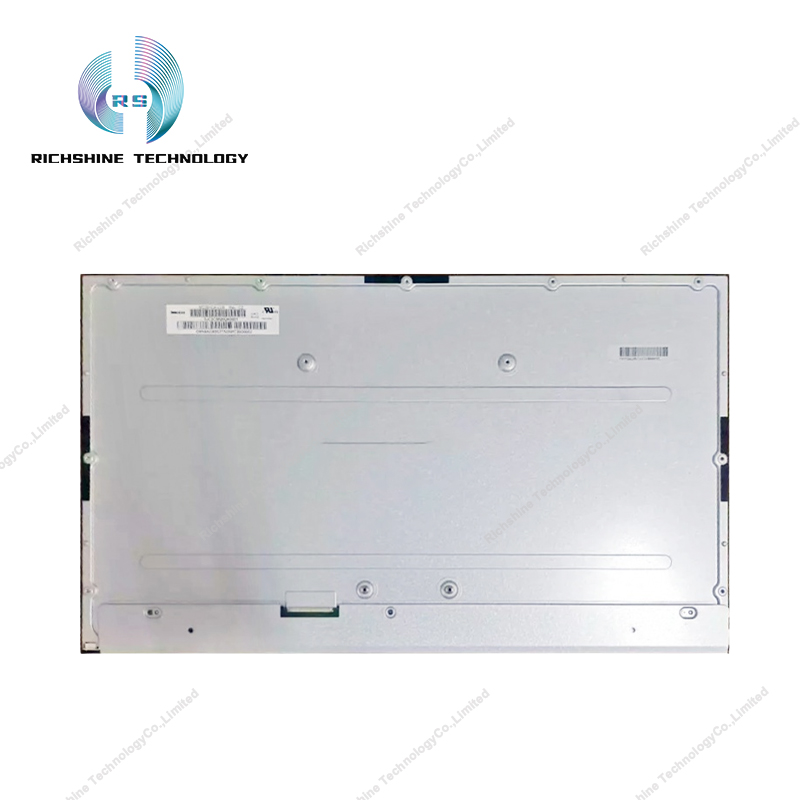

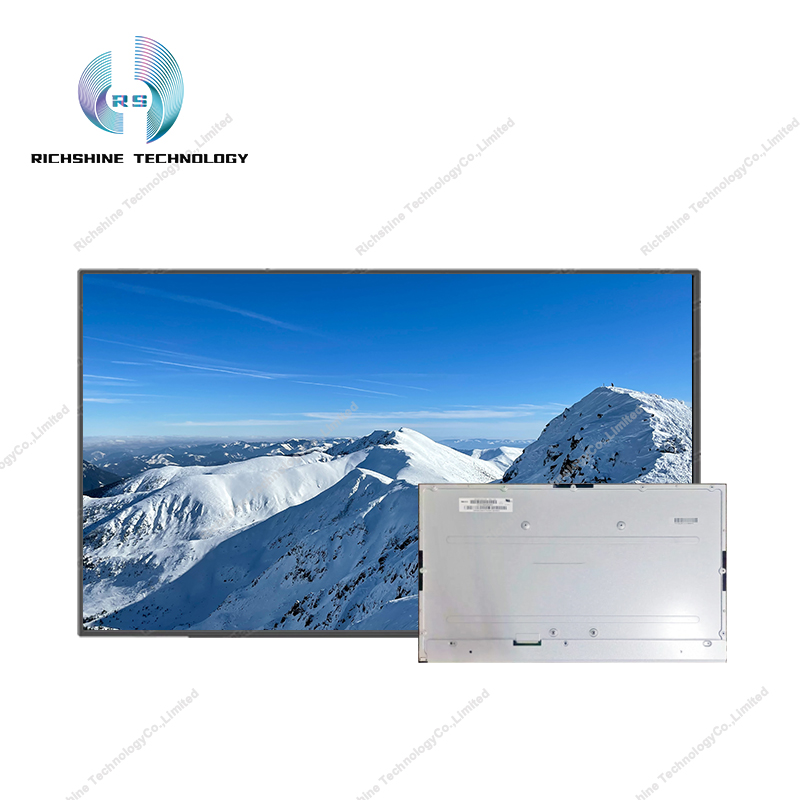

The M270HCA-L7B is a 27.0-inch LCD module product from Innolux that employs a-Si TFT-LCD technology. It features WLED backlighting, no backlight driver, and no touch functionality. Its typical characteristics include: sRGB, HDR400, 3-sided bezels, 144Hz, white light LED backlight, reverse-mounted terminals, matte surface finish, 3-sided borderless, TCO 7.0 compliance, Eye comfort TUV 2PFG2383 LBL compliance, 144Hz. Its operating temperature range is 0 to 50°C, storage temperature range is -20 to 60°C, and it is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). This model is suitable for use in computer monitors and gaming. The M270HCA- L7B has a display resolution of 1920 (RGB) × 1080 (FHD), a 16:9 aspect ratio (width: height), and RGB vertical stripe pixel arrangement. Its display area dimensions are 597.888 × 336.312 (width × height) mm, and its physical dimensions are 607.13 (width) × 354.11 (height) × 13.3 (thickness) mm. The surface treatment is matte (Haze 25%) and hard coating (3H). The product weighs 2.87/3.01 kg (typ./max.). In terms of backlighting, this product uses 4 strings of WLED light sources that emit light from the side (bottom). The light source’s lifespan is 30,000 hours, and it does not include a backlight driver. The M270 HCA-L7B utilizes an LVDS (4 channels, 8-bit) signal interface with a total of 92 pins and is connected via terminals. The driving voltage is 12.0V (typ.). Its typical vertical refresh rate Fv is 144Hz.
