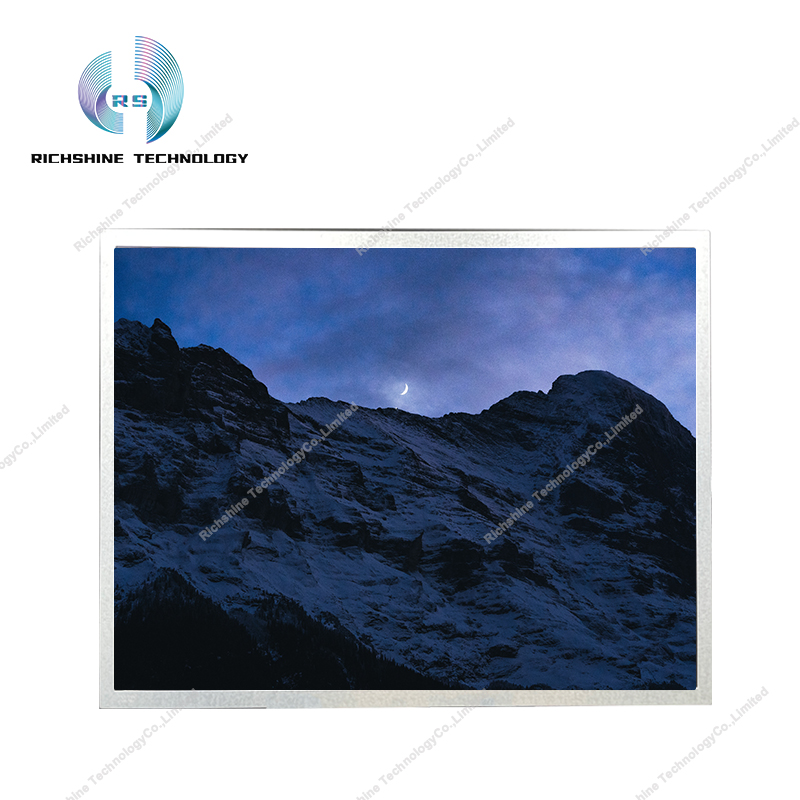

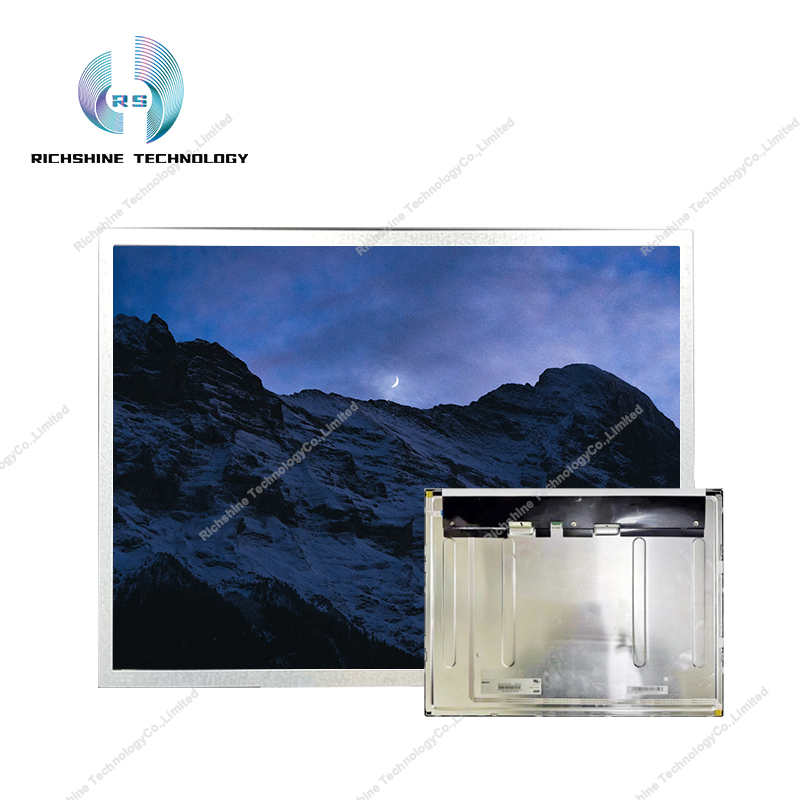

R213UCE-L02 21.3 inch UXGA IPS
- Model:
- R213UCE-L02
R213UCE-L02 - Related Model
| Model | Version | |
|---|---|---|
| R213UCE-L02 | Rev3.1 |
The R213UCE-L02 is a 21.3-inch a-Si TFT-LCD LCD module product launched by Innolux. It features WLED backlighting, including an LED driver for the backlight, and is non-touch. This product operates within a temperature range of 0 to 50°C for operation and -20 to 60°C for storage. Its key characteristics include extremely high brightness, white LED backlight, a lifespan of over 50,000 hours, an LED driver, and a matte surface finish. This model is used in products such as medical imaging. The R213UCE-L02 has a display resolution of 1600 (RGB) × 1200 (UXGA), a 4:3 (width: height) aspect ratio, and RGB vertical stripe pixel arrangement. Its display area dimensions are 432 (width) × 324 (height) mm, and its physical dimensions are 457 (width) × 350 (height) × 19.79 (thickness) mm. The surface treatment is matte, with a hard coating (3H). The product weighs 2.18 ± 0.10 kg net. In terms of backlighting, the R213UCE-L02 employs WLED-lit side-illumination sources, with a lifespan of 50K hours and an LED driver. It utilizes LVDS (2 channels, 8-bit) signal interface with a total of 30 pins, connected via terminals, and operates at a driving voltage of 12.0V (typical). Its typical vertical refresh rate Fv is 60Hz.
- R213UCE-L02 Category :
- Monitor Panel
- Specification
