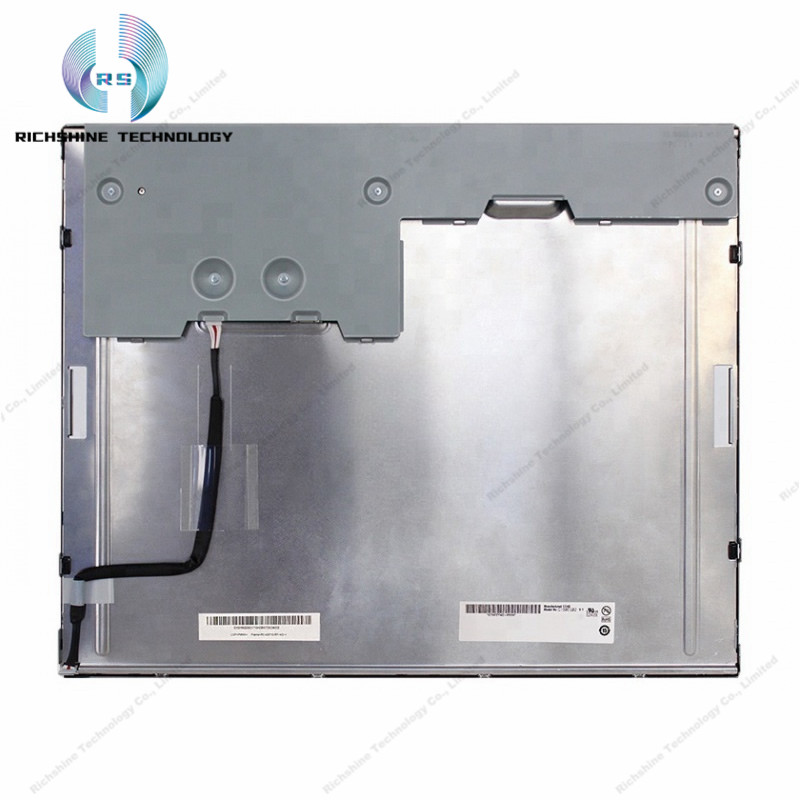

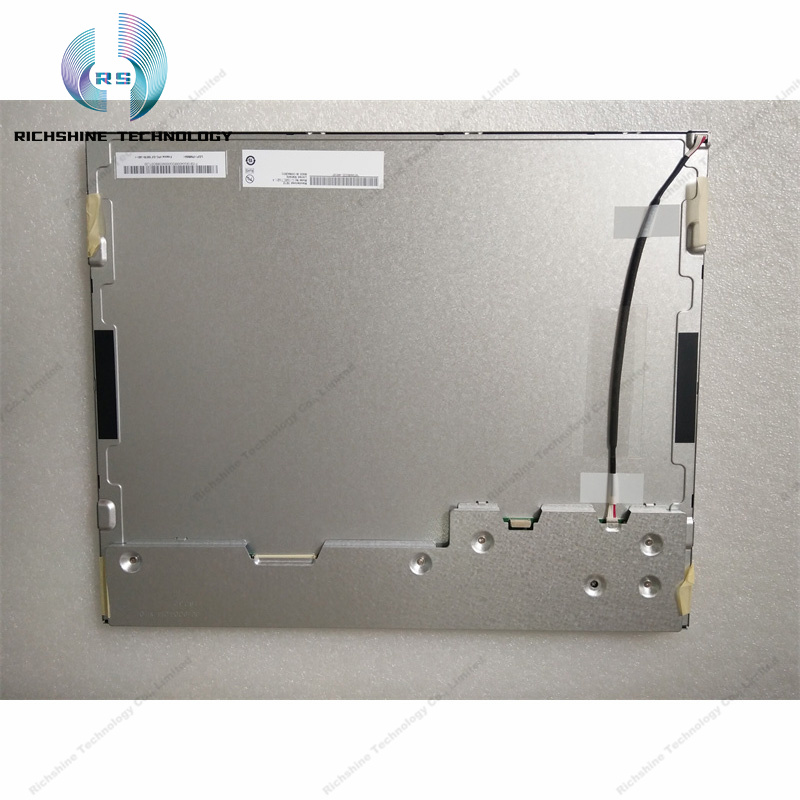

G190ETN01.4 is a 19.0-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with WLED backlighting, including LED driver backlighting, and touchless.The display has a resolution of 1280 (RGB) × 1024 (SXGA), an aspect ratio of 5: 4 (width: height), and pixels are arranged in RGB vertical strips. It has a display area dimension of 376.32 × 301.056 (wide × high) mm, a viewing dimension of 379.72 × 304.46 (wide × tall) mm, an appearance dimension of 396 × 324 (wide × height) × 13.38 (thick) mm, and a surface treatment of fog, Hard coating (3H) and a net product weight of 1.80 Kgs (Typ.). The backlight aspect of this product uses 4 strings WLED light source (bottom), the service life of the light source is 50K hours, including LED driver. The G190ETN01.4 features an LVDS (2ch, 8-bit) signal interface, a total of 30 pins, with terminal connections, and a drive voltage of 5.0 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.It has a working temperature of -30 ~ 85 ° C, a storage temperature of -30 ~ 85 ° C and a vibration resistance of 1.5G (14.7m / s2).Based on its wide color gamut, DCI-P3, sRGB, wide temperature, white LED backlighting, life of more than 50,000 hours, including features such as LED drive, terminal fitting, surface fog surface, etc., this model is recommended for use in industry.
