E080AWAA R1 8 inch WXGA IPS
- Model:
- E080AWAA R1
E080AWAA R1 - Related Model
| Model | Version | |
|---|---|---|
| E080AWAA R1 | Rev.00 |

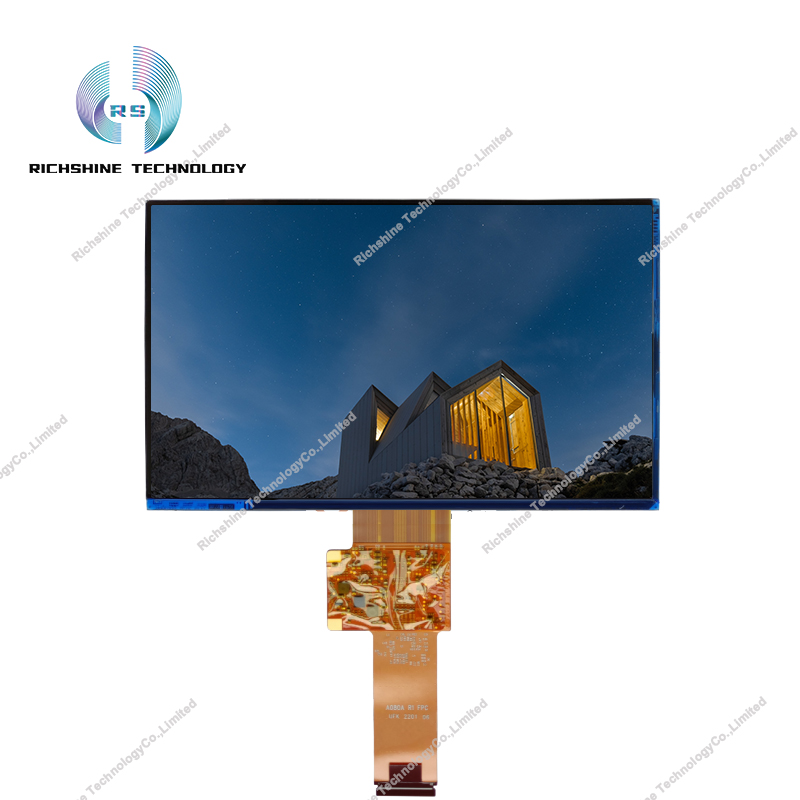

The E080AWAA R1 is an 8.0-inch a-Si TFT-LCD liquid crystal glass product launched by Long Teng (IVO). It does not have a backlight or touch functionality. The operating temperature range is -30 to 85°C, and the storage temperature range is -40 to 90°C. Its typical features include wide temperature range, top/bottom, left/right flip display, matte surface finish. This model is used in vehicle displays, digital frames, and portable DVDs. The product is bonded with 1 source + 2 gate chips driving ICs. The E080AWAA R1 can achieve a transmittance contrast ratio of 900:1 and viewing angles of 85/85/85/85 (Typ.) (CR ≥ 10) (left/right/top/bottom), with the best viewing angle being full-angle. Its response time is 35 (Max.) (Tr+Td) ms. Due to the use of 8-bit gray-scale signals per pixel, the product can display 16.7M colors, with a color saturation of 75% (NTSC). The product does not have a backlight. The E080AW AA R1 uses an LVDS (1 channel, 8-bit) signal interface with a total of 40 pins, connected via FPC, and operates at a screen driving voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.
- E080AWAA R1 Category :
- Laptop panel
- Specification
