ZE050NA-08G 5 inch VGA TN
- Model:
- ZE050NA-08G
ZE050NA-08G - Related Model
| Model | Version | |
|---|---|---|
| ZE050NA-08G | Ver.01 |

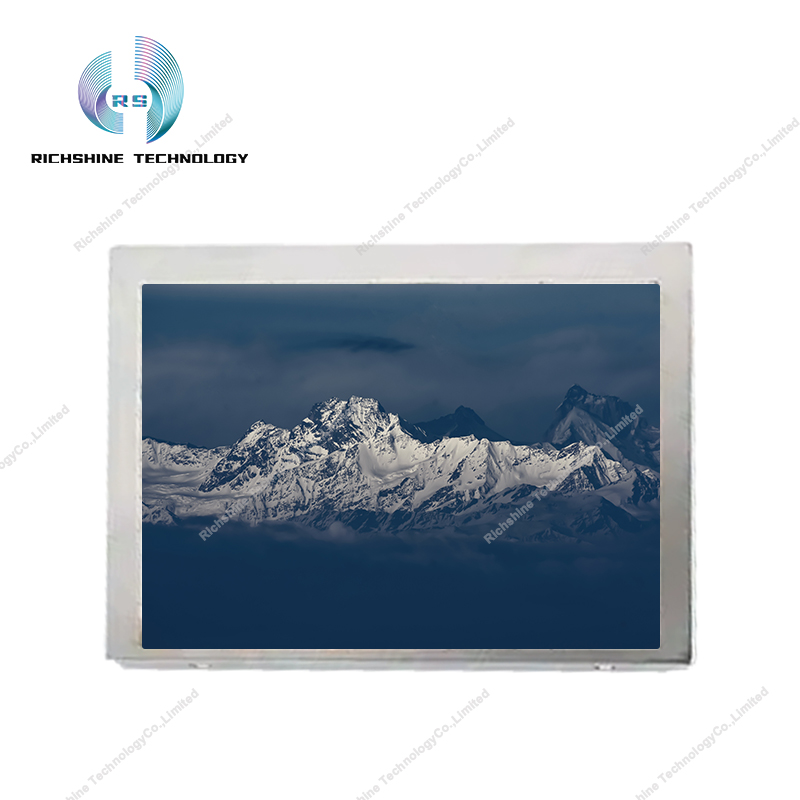

The ZE050NA-08G is a 5.0-inch LCD glass product from Innolux Corporation (Innolux) featuring a-Si TFT-LCD technology. It lacks a backlight and touch functionality, and has been bonded with one source chips driving IC. The ZE050NA-08 G has a display resolution of 640 (RGB) × 480 (VGA), a 4:3 (width: height) aspect ratio, and RGB vertical stripe-based pixel arrangement. Its display area dimensions are 101.76 × 76.32 (width × height) mm, and its physical dimensions are 109.55 × 85.86 (width × height) × 1.23 (thickness) mm. The surface treatment is matte. The product’s net weight is TBD, and it utilizes a glass substrate with a thickness of 0.40 + 0.40 mm. This product does not have a backlight. The ZE050 NA-08G employs a Parallel RGB (1 channel, 8-bit) signal interface with a total of 50 pins, connected via FPC. The driving voltage for the screen is 3.3/10.4/17/-7.0V (typical) (DVDD/AVDD/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz. It operates within a temperature range of -20 to 70°C for operation and -30 to 80°C for storage. Given its characteristics such as top/bottom, left/right flip display and matte surface treatment, this model is recommended for use in visual doorbells.
- ZE050NA-08G Category :
- Other
- Specification
