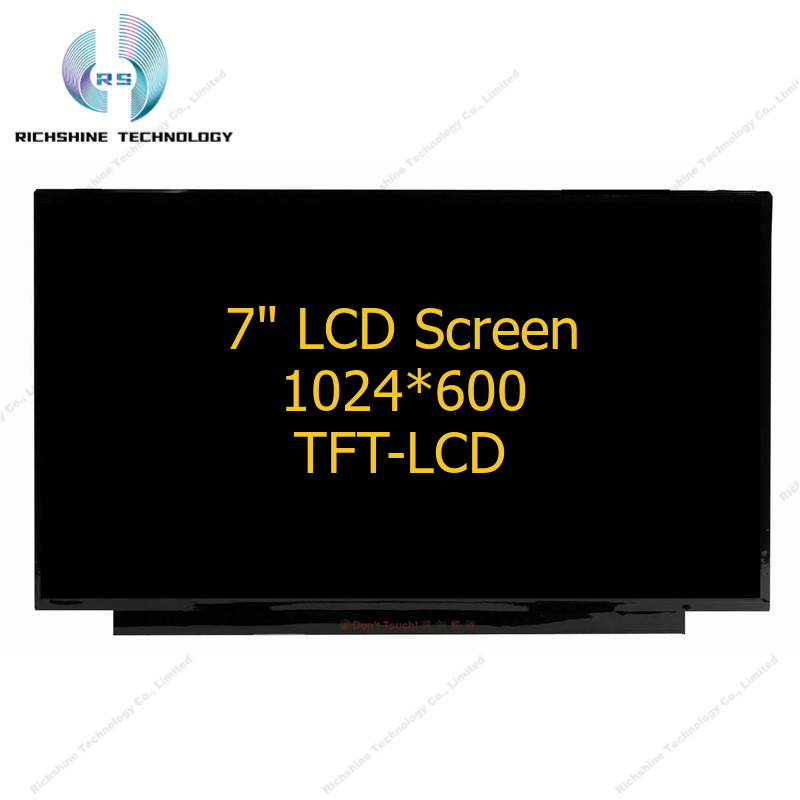

F070A05-601 7 inch WSVGA TN

Brand: Innolux

Model: F070A05-601

Panel Type:a-Si TFT-LCD

Panel structure:liquid crystal glass

panel size: 7"

Pixels H X V: 1024*600

Display Color: 16.7M

Vertical Frequency: -

Response Time:25 ms

Signal voltage:-

Interface Type: -

View Angle:80/80/60/70

Color Space:NTSC 50%

Brightness: 0cd/m²

Contrast Ratio:800:1

Power Dissipation: -

Backlight voltage: -

Backlight Life Time:-

Physical size : 161.814(H)×94.52(V)×0.8(D) mm

T-con board:-

Touch: No

Weight: 840.000 g

Temperature Range:Operating Temp.:-20 °C ~ 70 °C ; Storage Temp.:-30°C ~ 80 °C

Model:: F070A05-601

F070A05-601 - Related Model

Model	Version	PDF
F070A05-601	Ver1.0

F070A05-601 is a 7.0-inch liquid crystal glass product from Innolux Corporation (Innolux), featuring a-Si TFT-LCD technology. It lacks a backlight and a touch interface, and is recommended to use the HX8282-A + HX8696-A driver IC. The display resolution is 1024 (RGB) × 600 (WSVGA), with a 16:9 (width: height) aspect ratio and RGB vertical stripe pixel arrangement. The display area dimensions are 154.214 × 85.92 (width × height) mm, and the physical dimensions are 161.814 × 94.52 (width × height) × 0.8 (thickness) mm. The surface treatment is without a polarizer sheet. The product’s net weight is 843 ± 84 g, and it utilizes a glass substrate with a thickness of 0.40 + 0.40 mm. This product does not have a backlight. Its operating temperature range is -20 to 70°C, and the storage temperature range is -30 to 80°C. This model is recommended for use in automotive displays, digital frames, and portable DVD players.

F070A05-601 Category :: Other
