ZE050NA-01U 5 inch WVGA TN
- Model:
- ZE050NA-01U
ZE050NA-01U - Related Model
| Model | Version | |
|---|---|---|
| ZE050NA-01U | Final Ver.01 |

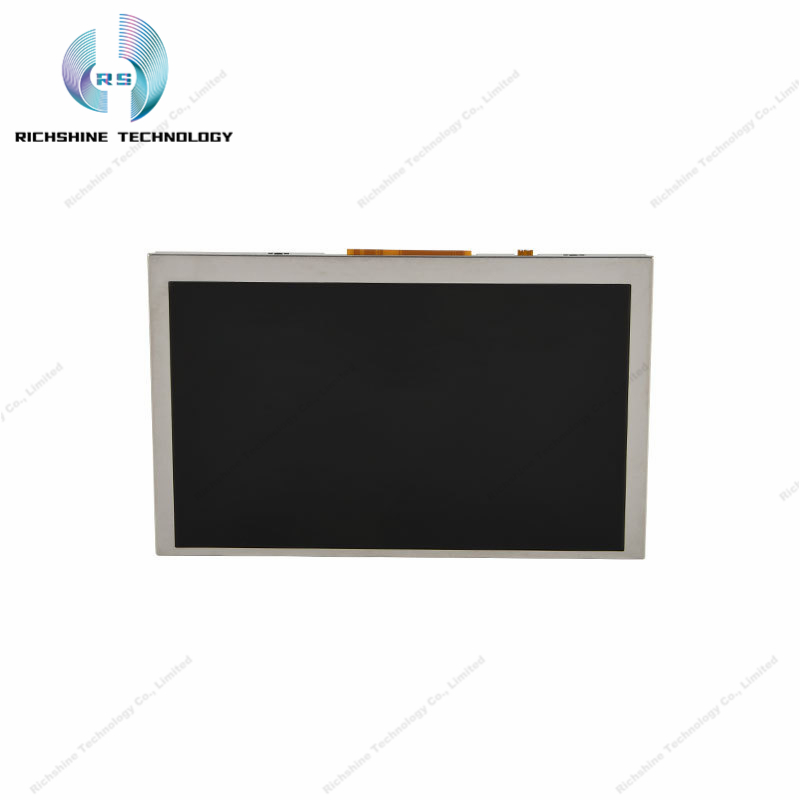

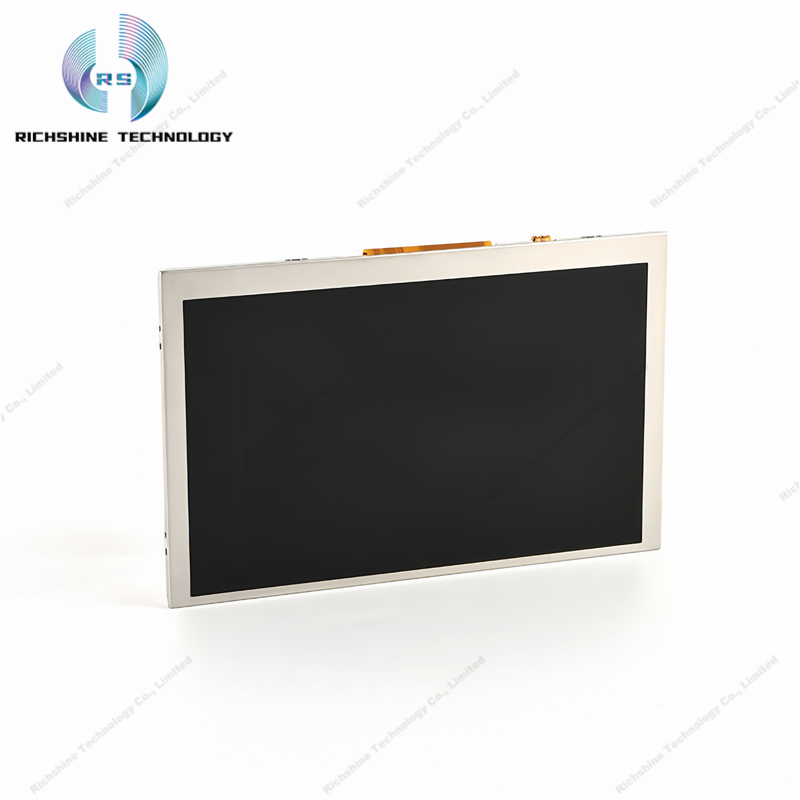

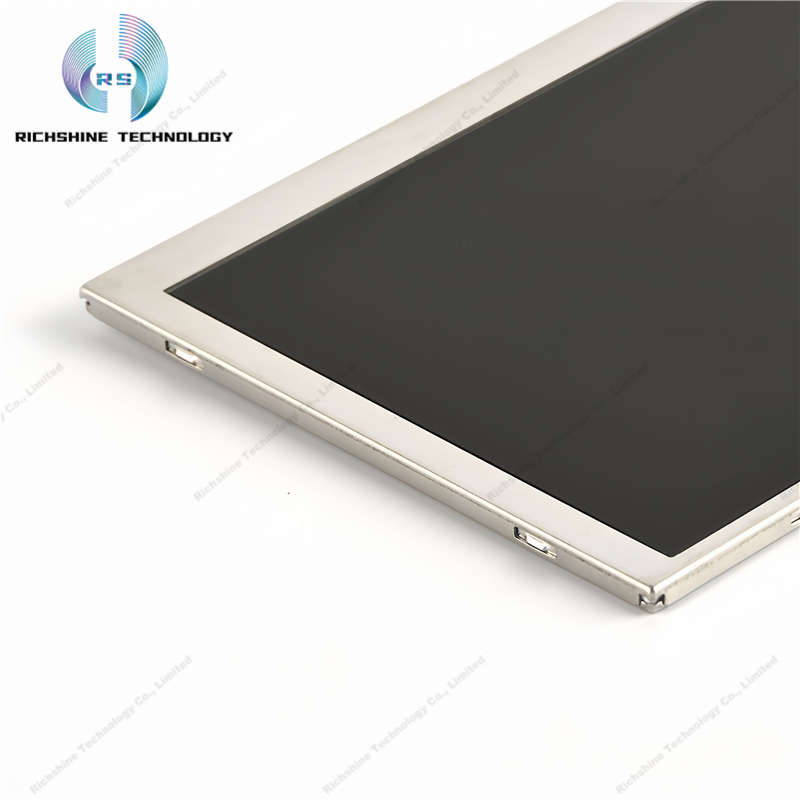

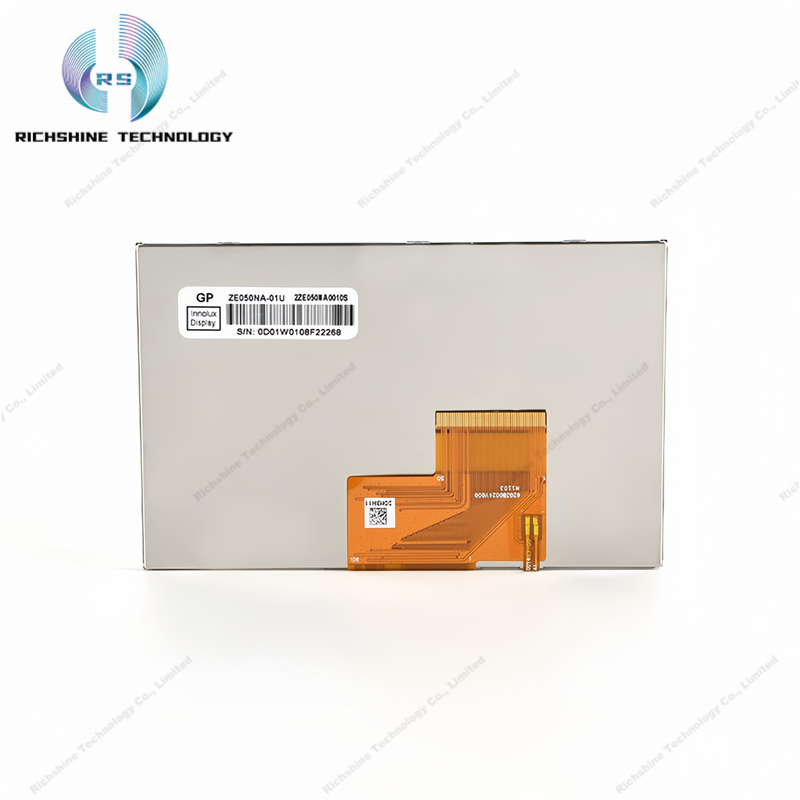

The ZE050NA-01U is a 5.0-inch a-Si TFT-LCD liquid crystal glass product launched by Innolux. It does not have a backlight or touch functionality. The operating temperature range is -20 to 70°C, and the storage temperature range is -30 to 80°C. Its typical features include: top/bottom, left/right flip display, matte surface finish. This model is used in products such as visual doorbells. The product has been bonded with 1 source + 1 gate chips driving ICs. The ZE050NA-01 U has a display resolution of 800 (RGB) × 480 (WVGA), a aspect ratio of 15:9 (width: height), and pixels arranged in vertical RGB stripes. The display area dimensions are 108 (width) × 64.8 (height) mm, and the physical dimensions are 115.6 (width) × 74.38 (height) × 1.42 (thickness) mm. The surface treatment is matte. The product weighs 26.0g (typical). It uses a glass substrate with a thickness of 0.40 + 0.40 mm. The product does not have a backlight. The ZE050 NA-01U employs parallel RGB (1 channel, 8-bit) signal interfaces with a total of 50 pins, connected using FPCs, and has driving voltages of 3.3/10.4/15/-8.0V (typical) (DVDD/AVDD/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz.
