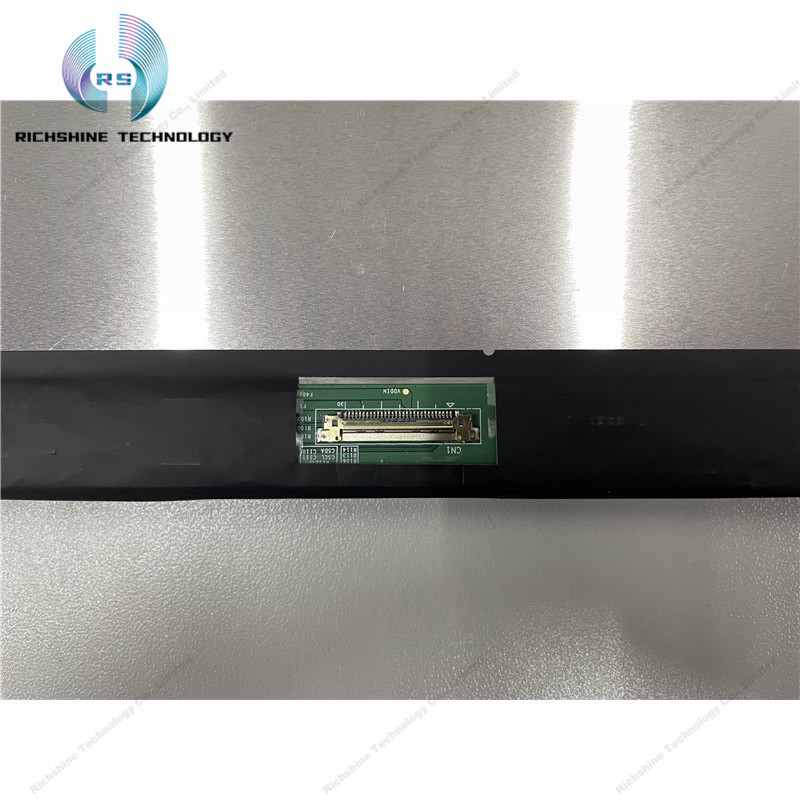

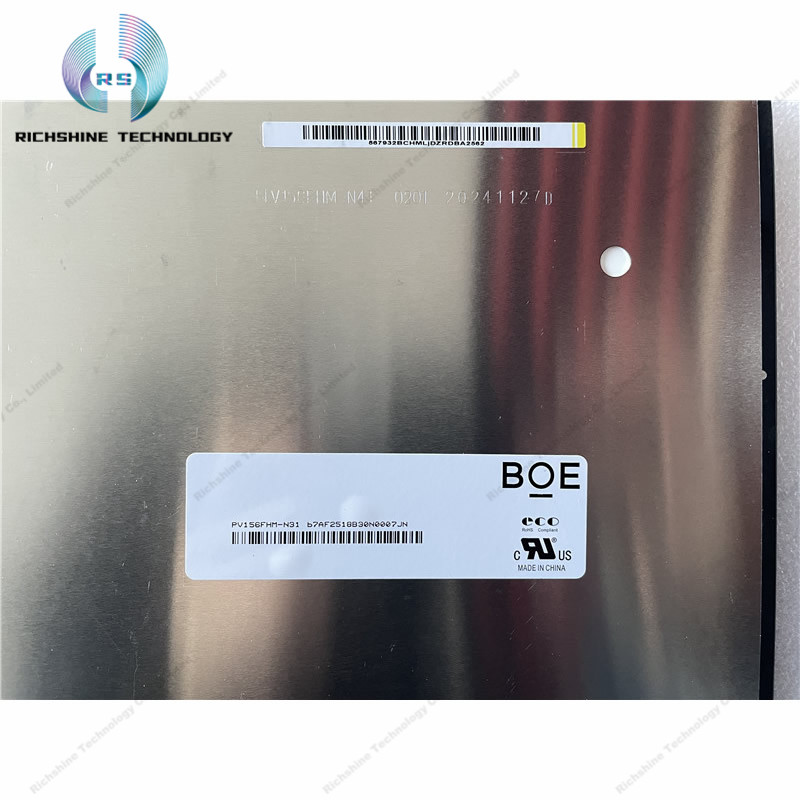

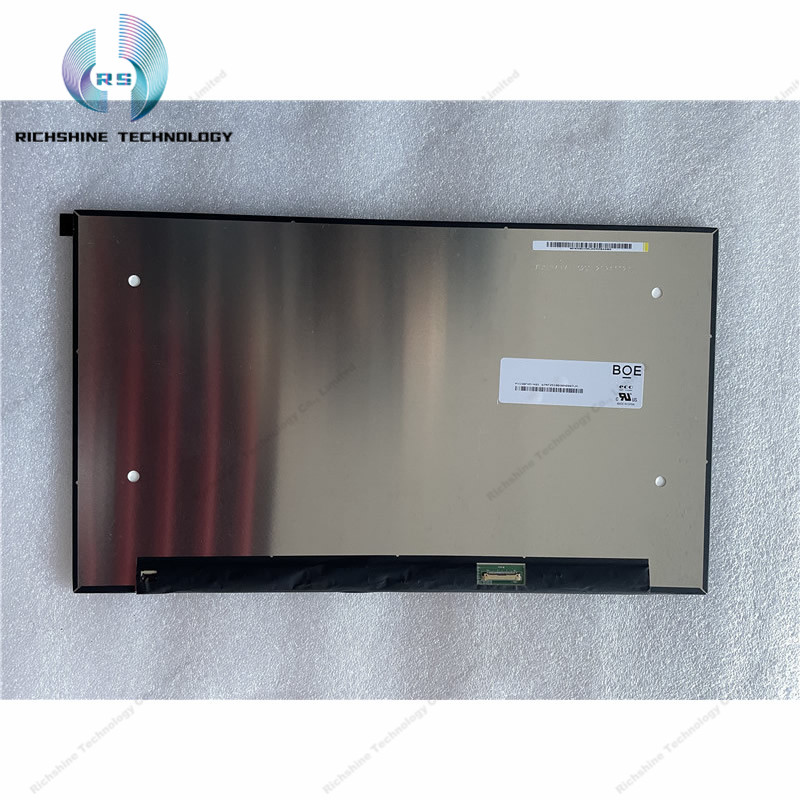

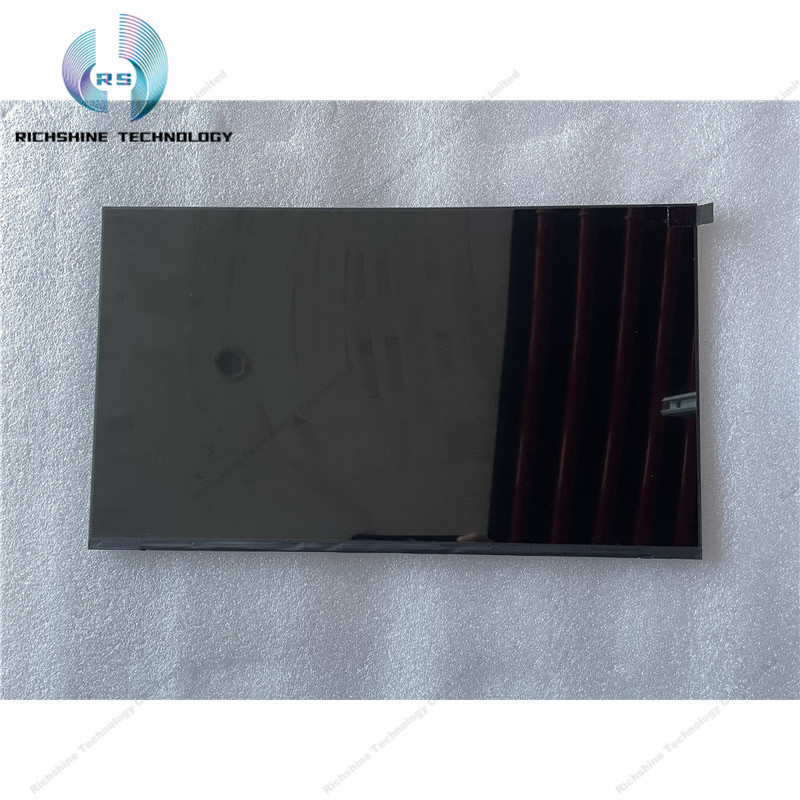

The PV156FHM-N31 is a 15.6-inch a-Si TFT-LCD LCD module produced by BOE Technology. It features WLED backlighting, LED driver backlighting, and no touch functionality. The product operates within a temperature range of 0 to 50°C and stores at -20 to 60°C, with vibration resistance of 1.5G (14.7 m/s²). Its typical features include white LED backlighting with a lifespan of over 50,000 hours, LED driver included, reverse-mounted terminals, matte surface finish, and Application: POS, Cash Register, Electronic Scale, Kiosk, etc. The display resolution is 1920 (RGB) × 1080 (FHD), with a 16:9 (width: height) aspect ratio and RGB vertical stripe pixel arrangement. The display area measures 344.16 (width) × 193.59 (height) mm, and the physical dimensions are 350.66 (width) × 205.24 (height) × 5.8 (thickness) mm. The surface treatment is matte, and the product has a hard coating (3H). The net weight is 340g (typical). In terms of backlighting, this product uses a 11S6P WLED-based side-illuminated light source (bottom), with a lifespan of 50K hours and an LED driver included. The PV156F HM-N31 utilizes an eDP (2 lanes) signal interface with a total of 30 pins and is connected via terminals. The driving voltage is 3.3V (typical). Its typical vertical refresh rate (Fv) is 60Hz. This model is used in industrial and other products.
