NV140FHM-T12 14inch TFT-LCD FHD
- Model:
- NV140FHM-T12
NV140FHM-T12 - Related Model
| Model | Version | |
|---|---|---|
| NV140FHM-T12 |

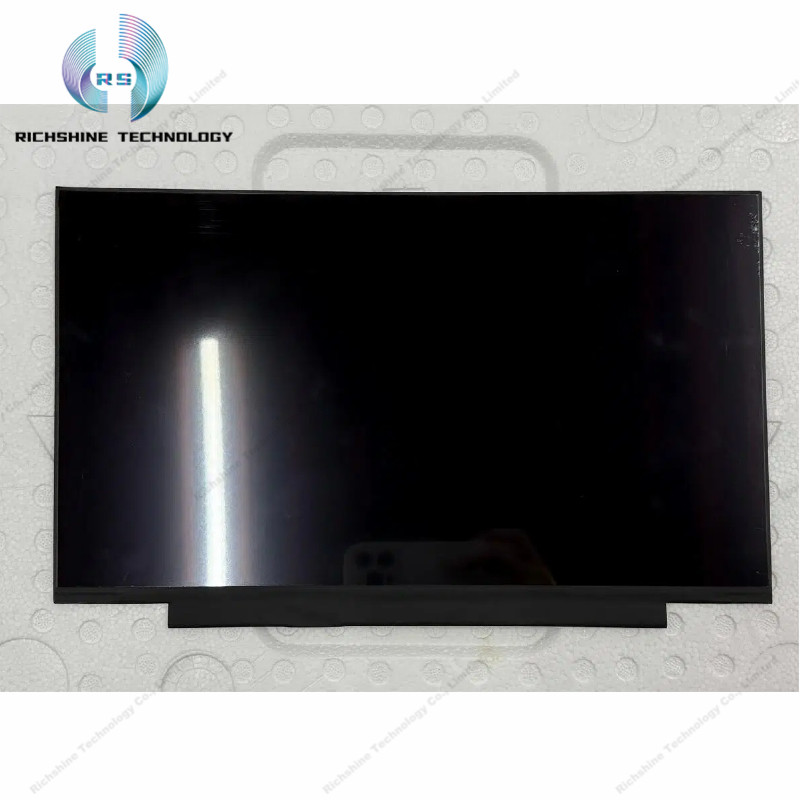

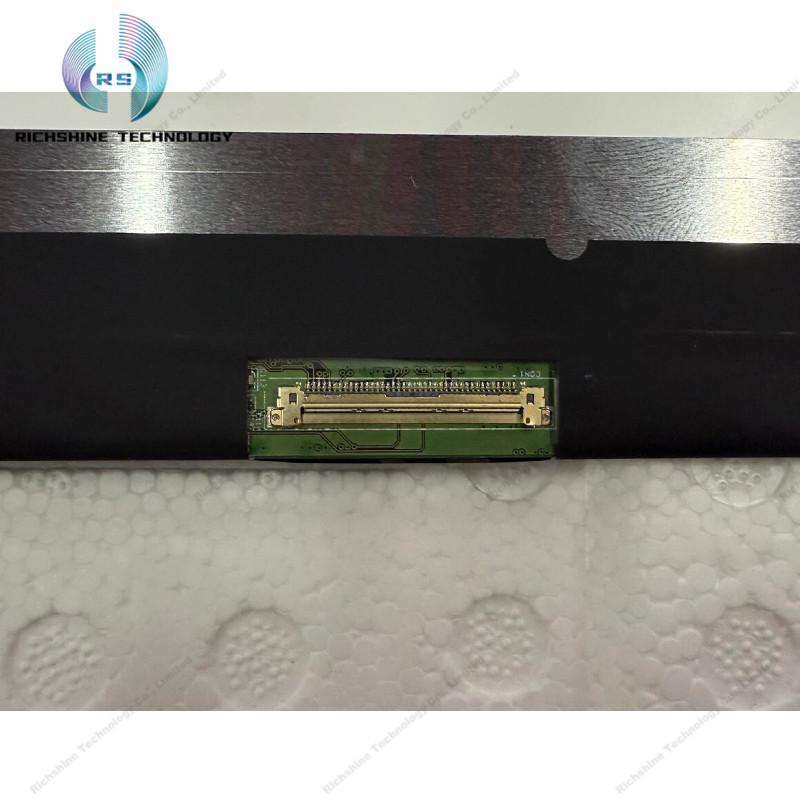

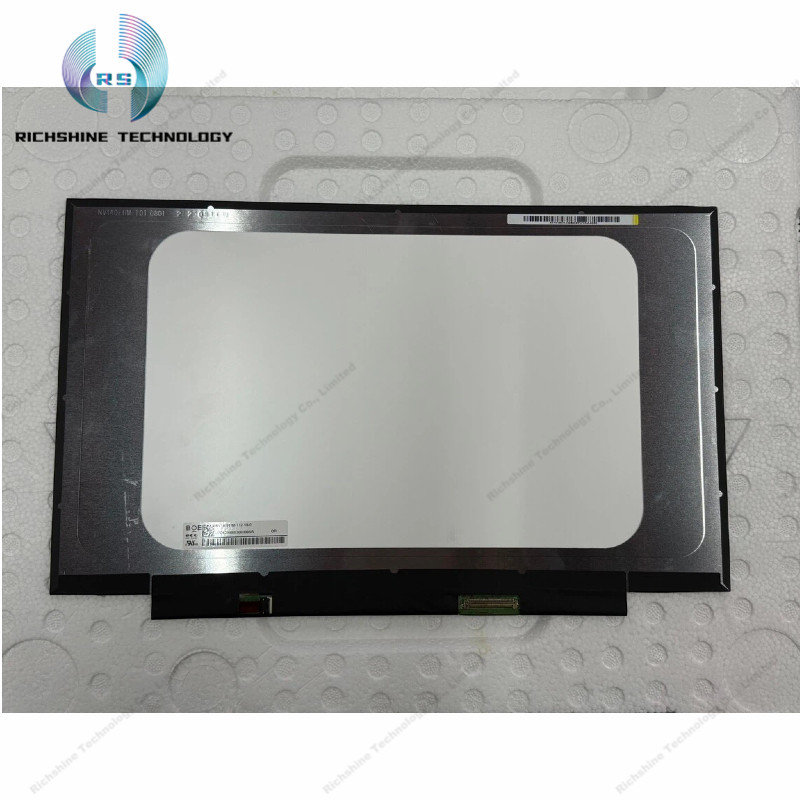

The NV140FHM-T12 is a 14.0-inch LCD module product featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, including an LED driver for backlighting, On-Cell Touch. Its typical features include a touchscreen, white light LED backlight, LED driver, reverse-mounted terminals, and a matte surface finish. Its operating temperature range is 0 to 50°C, and its storage temperature range is -20 to 60°C. It is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). The NV140F HM-T12 has a display resolution of 1920 (RGB) × 1080 (FHD), a 16:9 aspect ratio (width: height), and RGB vertical stripe-based pixel arrangement. Its display area dimensions are 309.31 × 173.99 mm (width × height). The surface treatment is matte, and the hard coating (3H) has a thin profile (PCBA flat, thickness ≤3.2 mm). In terms of backlighting, this product uses WLED-lit side-illuminated light sources (bottom). The light source’s lifespan is 15,000 hours, and it includes an LED driver. The NV140 FHM-T12 employs an eDP (2 lanes) signal interface with a total of 40 pins and uses terminal connections. The driving voltage for the display is 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz. This model is suitable for use in laptops.
- NV140FHM-T12 Category :
- Panel
- Specification
