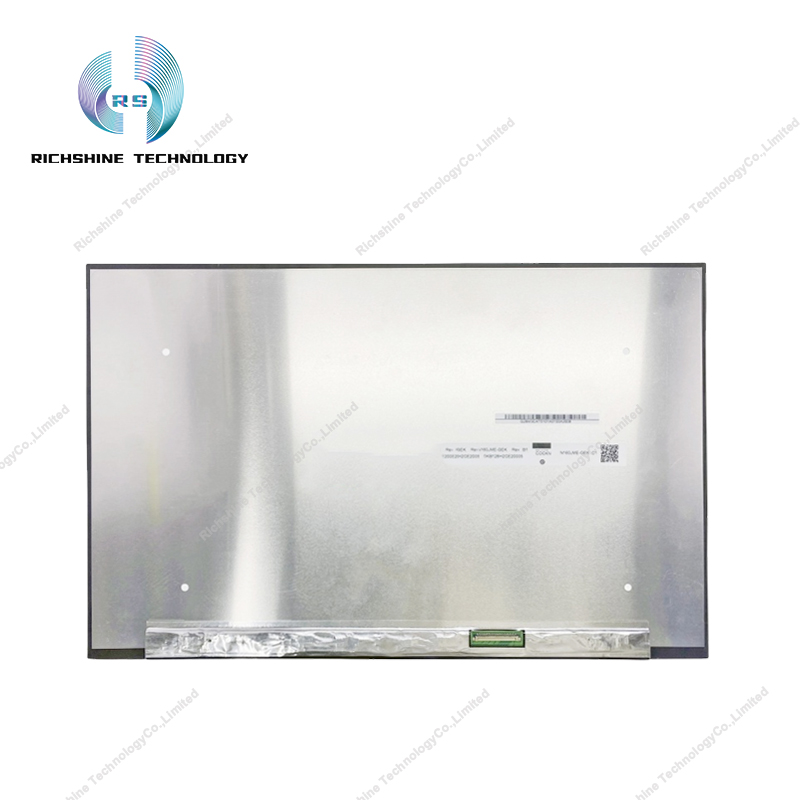

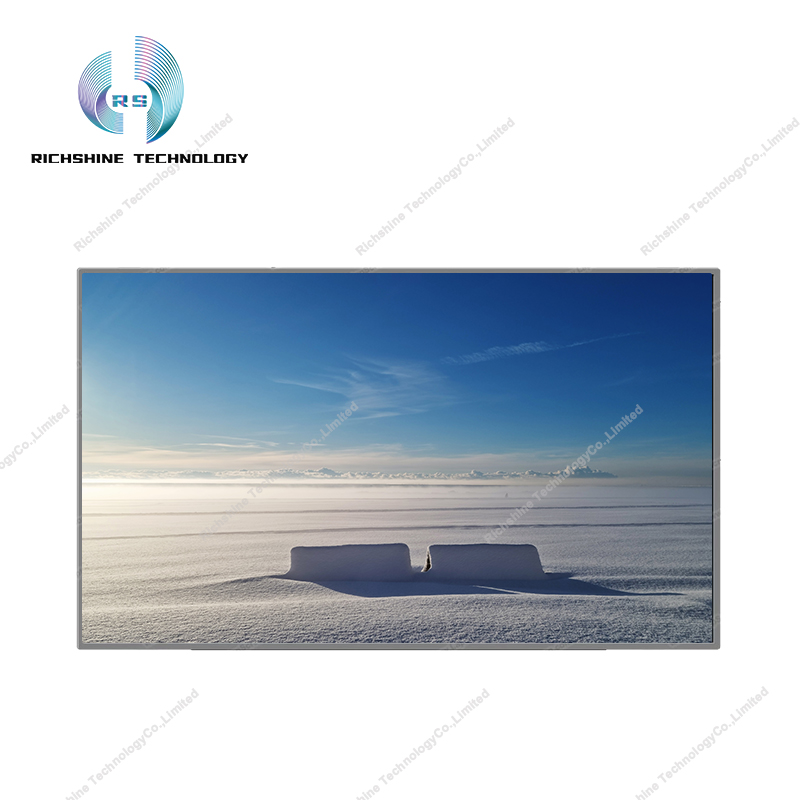

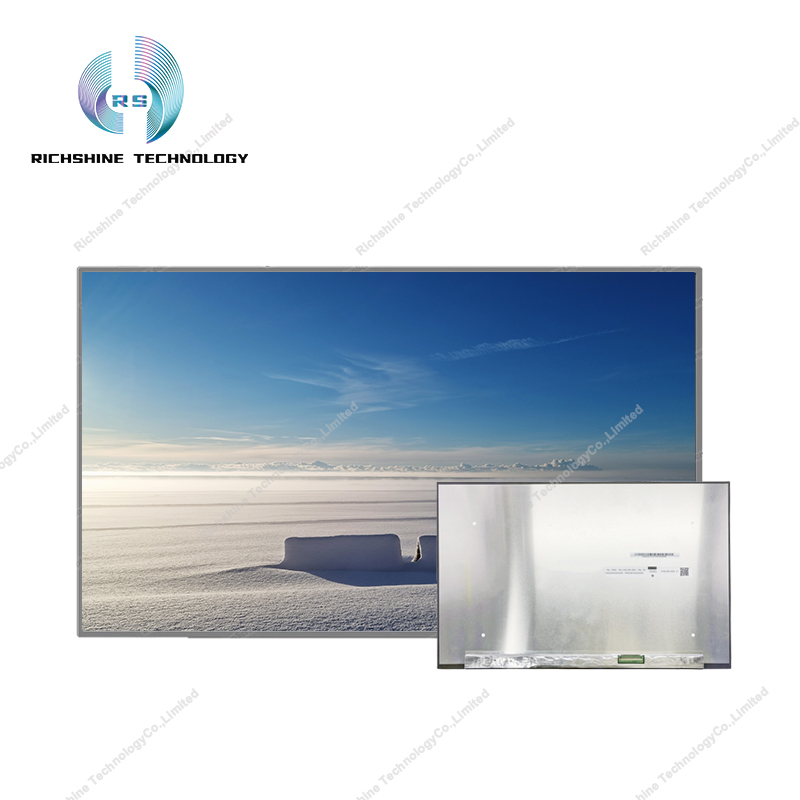

N160JME-GEK 16 inch WUXGA IPS

Brand: Innolux

Model: N160JME-GEK

Panel Type:a-Si TFT-LCD

Panel structure:LCM

panel size: 16"

Pixels H X V: 1920*1200

Display Color: 16.7M

Vertical Frequency: 165Hz

Response Time:11/9 ms

Signal voltage:3.3V

Interface Type: eDP (4 Lane) eDP1.4

View Angle:89/89/89/89

Color Space:NTSC 45%

Brightness: 300cd/m²

Contrast Ratio:1200:1

Power Dissipation: 5.98W

Backlight voltage: 6/12/20V

Backlight Life Time:15,000

Physical size : 349.68(H)×224.42(V)×5.2(D) mm

T-con board:Dorsal fold

Touch: No

Weight: 400.000 g

Temperature Range:Operating Temp.:0 °C ~ 50 °C ; Storage Temp.:-20°C ~ 60 °C

Model:: N160JME-GEK

N160JME-GEK - Related Model

Model	Version	PDF
N160JME-GEK	Rev.C1_Ver1.0

N160JME-GEK is a 16.0 inch a-Si TFT-LCD liquid crystal module product introduced by Innolux, which is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2).Typical features are: 165Hz, white LED backlight, LED driver, terminal flip, surface fog, AMD FreeSync, eDP1.4, Free-sync, 165Hz. This model is used in products such as notebooks.The N160JME-GEK has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips.Its display area size is 344.68 (wide) × 215.42 (high) mm, and its exterior size is 349.68 (wide) × 224.52 (high) × 5 (thick) mm,Surface treatment for fog surface, Hard coating (3H), product net weight 385 / 395 g (Typ. / Max.) appearance style for thin screen (PCBA bending, thickness ≤ 3.0mm).Backlight aspects of this product uses a 12S6P WLED light-emitting side light source, the service life of the light source is 15K hours, including LED driver. The N160JME-GEK uses an eDP (4 Lanes) signal interface with a total of 40 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 165 Hz.

N160JME-GEK Category :: Laptop panel
