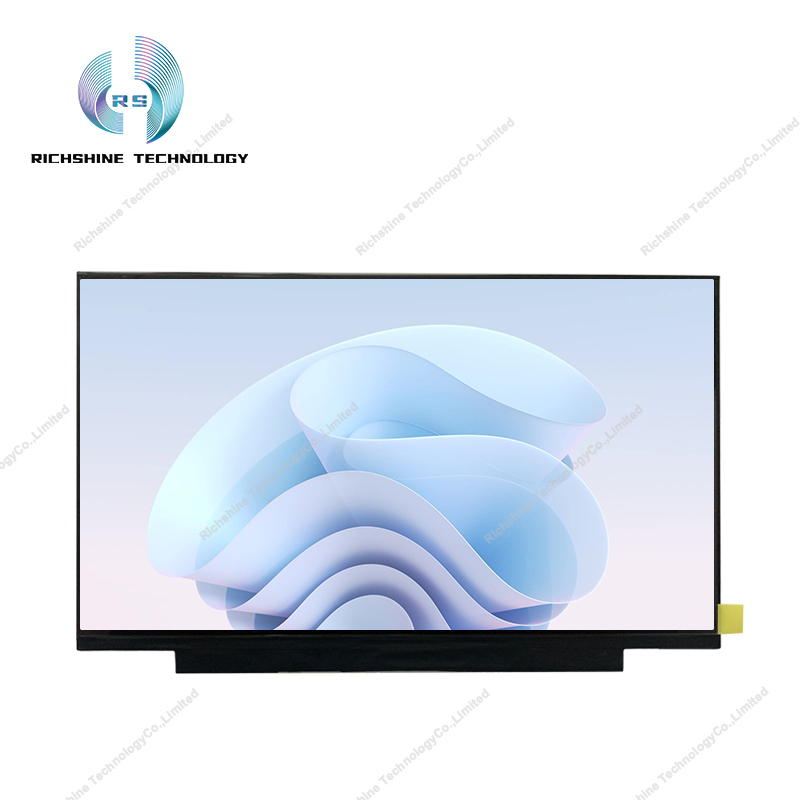

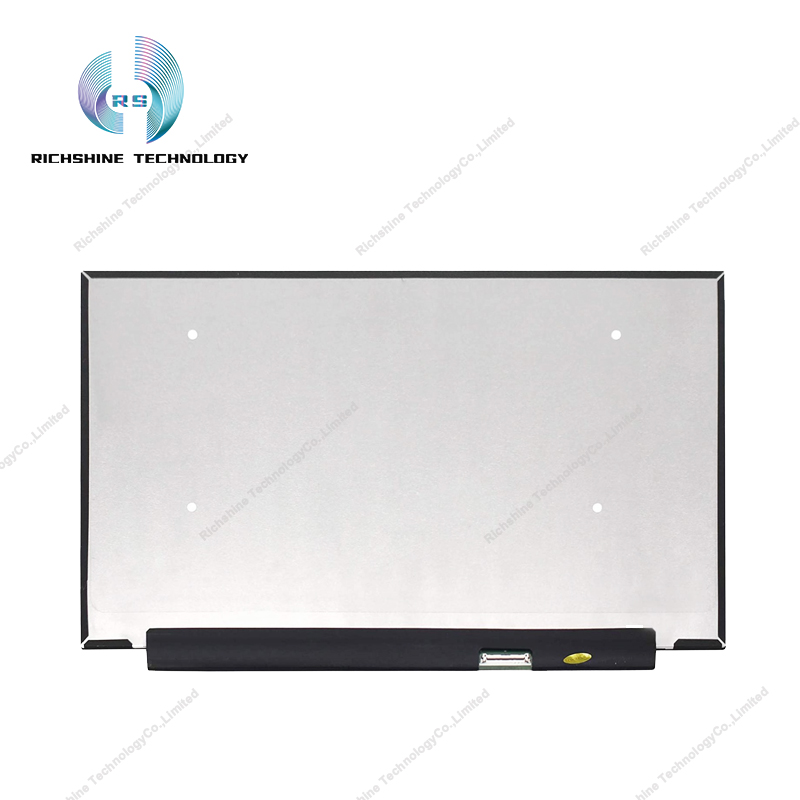

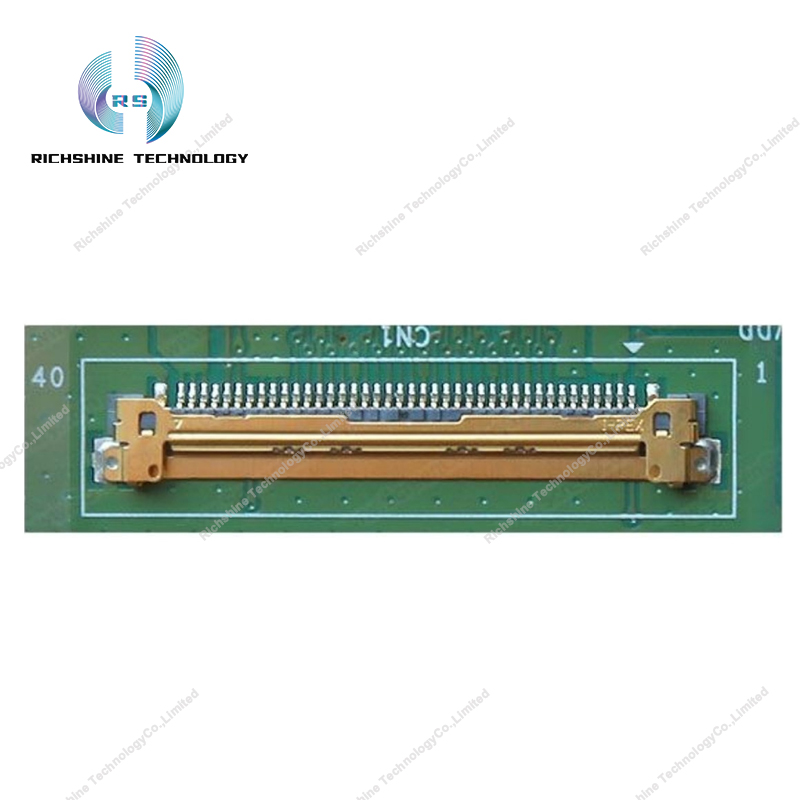

The N160JCN-ELK is a 16.0-inch liquid crystal module product using a-Si TFT-LCD technology by Innolux, Inc., which is fitted with WLED backlighting, LED-powered backlighting drive, On-Cell Touch.The N160JCN-ELK displays a resolution of 1920 (RGB) × 1200 (WUXGA) with an aspect ratio of 16? 10 (W: H) and pixels arranged in RGB vertical strips. Its display area size is 344.68 × 215.42. (Width × Height) mm, appearance size of 349.68 × 233.92 (Width × High) × 3.2 (Thickness) mm, surface treatment as fog surface, Hard coating (3H), net weight of 400g (Max.) appearance style as thin screen (PCBA flat, thickness ≤ 3.2mm). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The N160JCN-ELK features an eDP (2 Lanes) signal interface with 40 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, storage temperature is -20 ~ 60 ° C, and vibration resistance is 1.5G (14.7m / s2).AMD FreeSync, eDP1.2, Free-sync, Adaptive sync, DC Dimming, Variable Refresh Rate With Touch Screen, White LED Backlight, LED Driver, Flip Terminal, Surface Fog Surface, AMD FreeSync Features such as this model are recommended for use in notebooks.
