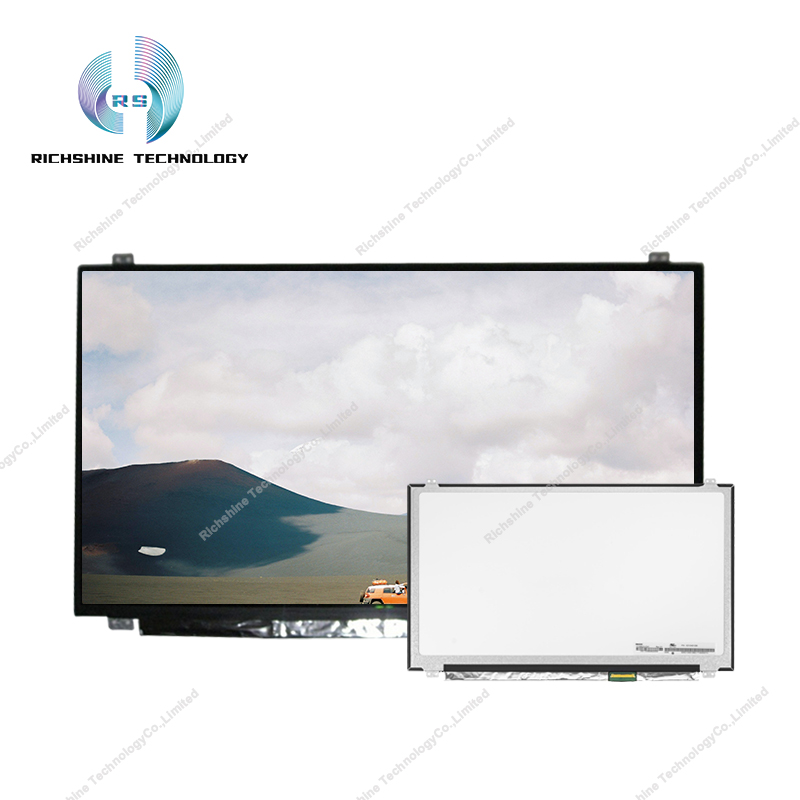

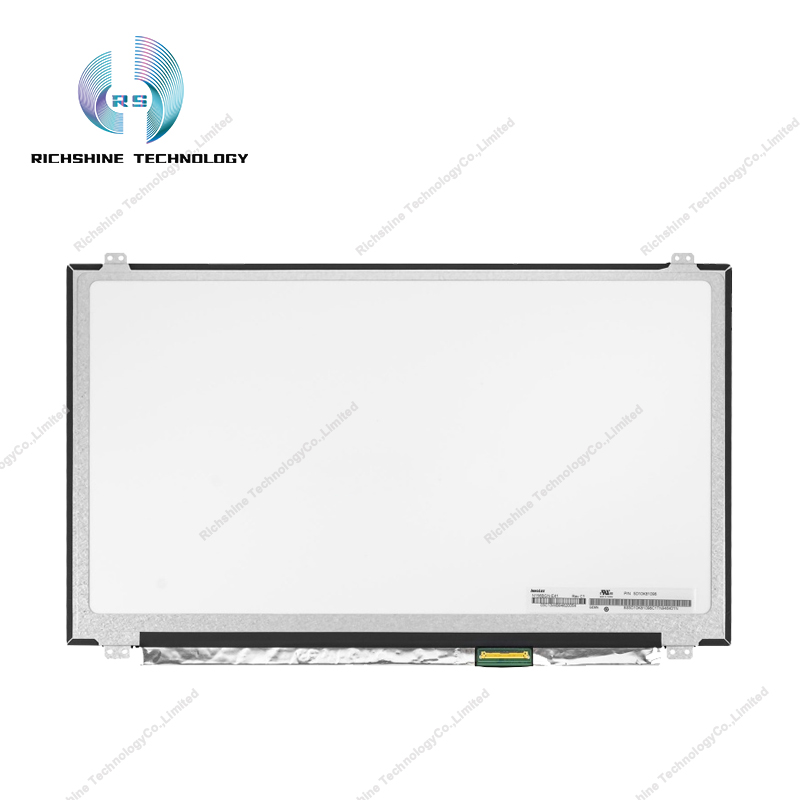

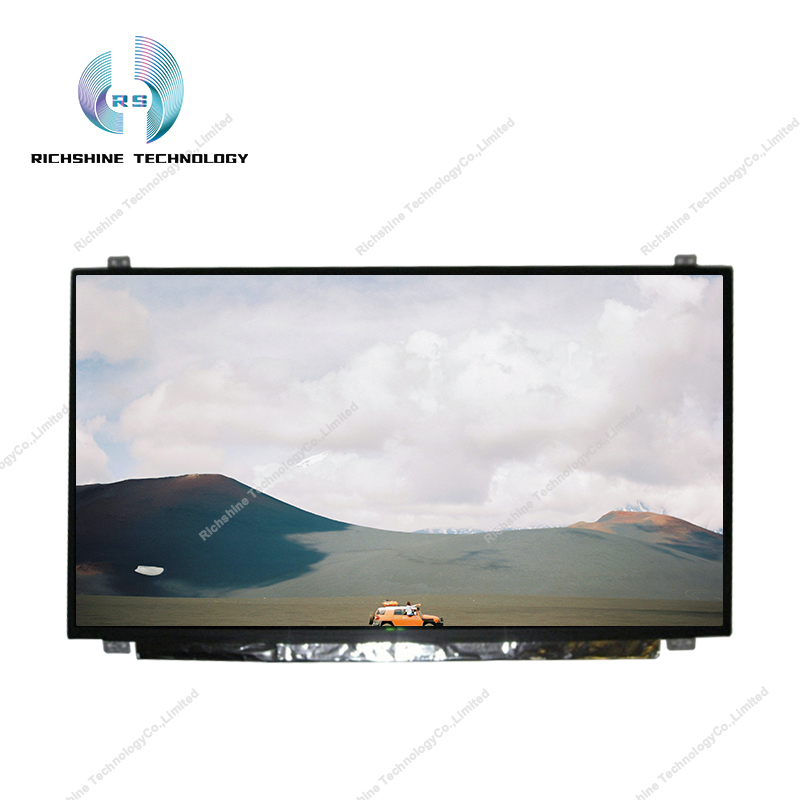

N156BGN-E41 15.6 inch WXGA TN
- Model:
- N156BGN-E41
N156BGN-E41 - Related Model
| Model | Version | |
|---|---|---|
| N156BGN-E41 | Ver3.0 |

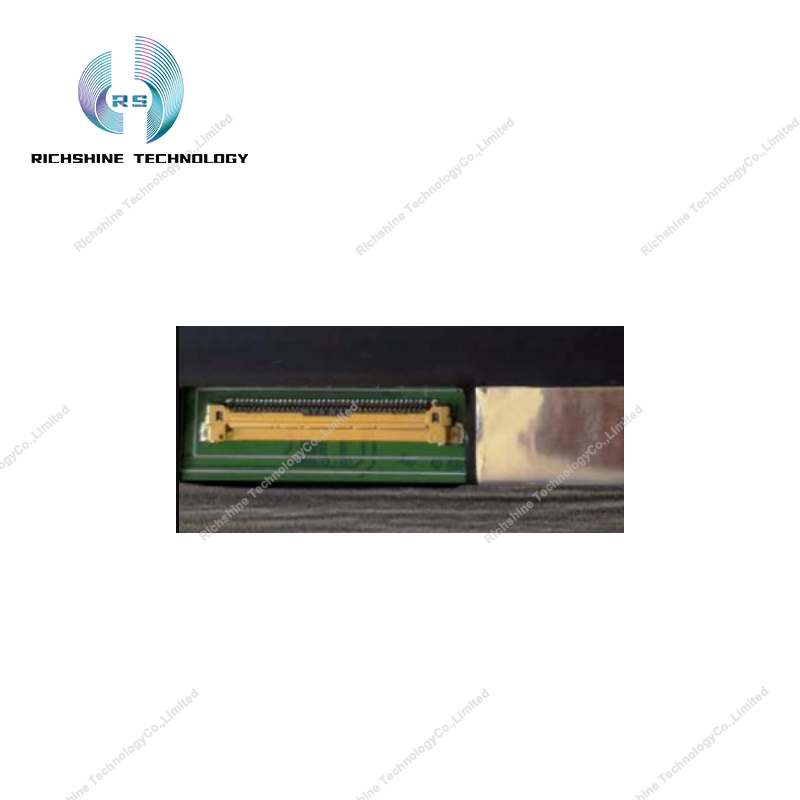

N156BGN-E41 is a 15.6-inch liquid crystal module product using a-Si TFT-LCD technology by Innolux, Inc., which is fitted with WLED backlighting, LED-powered backlighting drive, On-Cell Touch.The N156BGN-E41 has a display resolution of 1366 (RGB) × 768 (WXGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 344.232 × 193.536 (width × height) mm, the appearance size is 359.5 × 223.8 (width × height) × 3.2 (thickness) mm, and the surface is treated as a mirror. Haze 0%), Hard coating (3H), Product net weight 325 / 345 g (Typ. / Max.) Appearance style is thin screen (PCBA straight, thickness ≤ 3.2mm). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The N156BGN-E41 features an eDP (1 Lane) signal interface, 40 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, and its storage temperature is -20 ~ 60 ° C.Based on its touch screen, white LED backlight, including LED driver, terminal flip, surface mirror, eDP1.2, Caution: With TP or Without TP version, this model is recommended for use in notebooks.
- N156BGN-E41 Category :
- Laptop panel
- Specification
