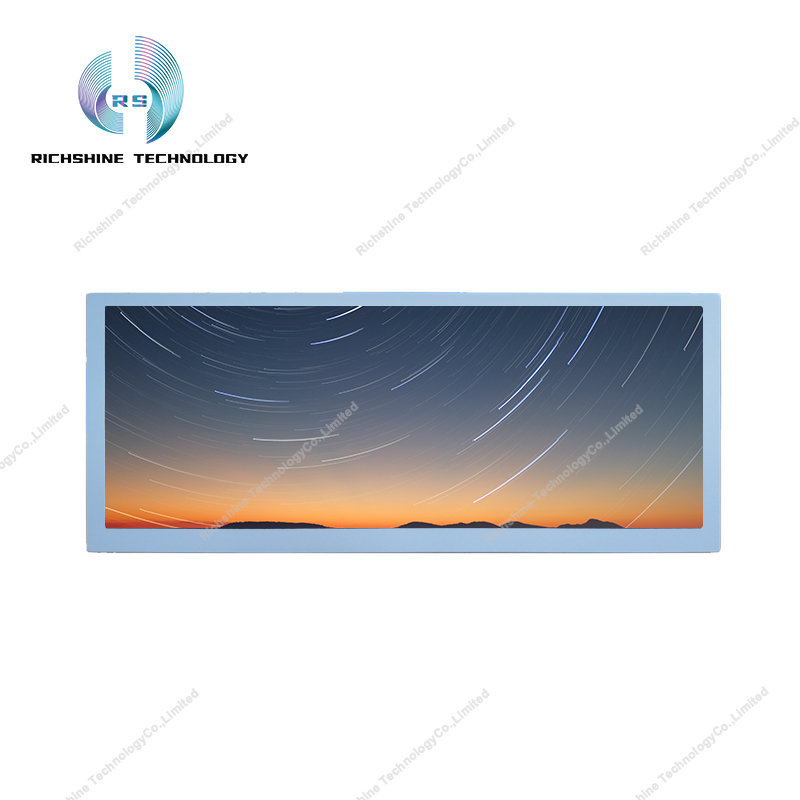

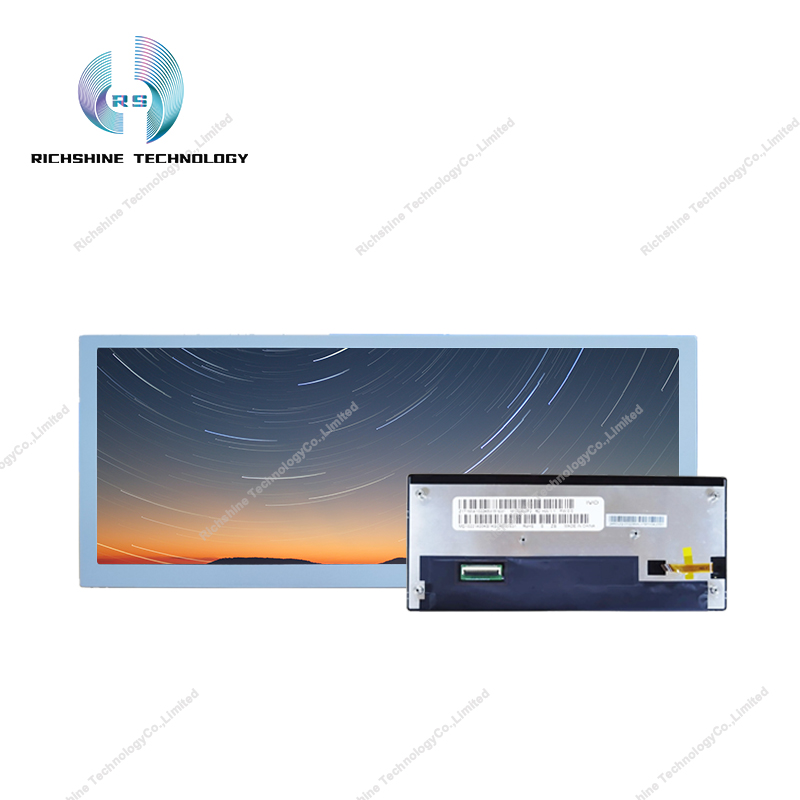

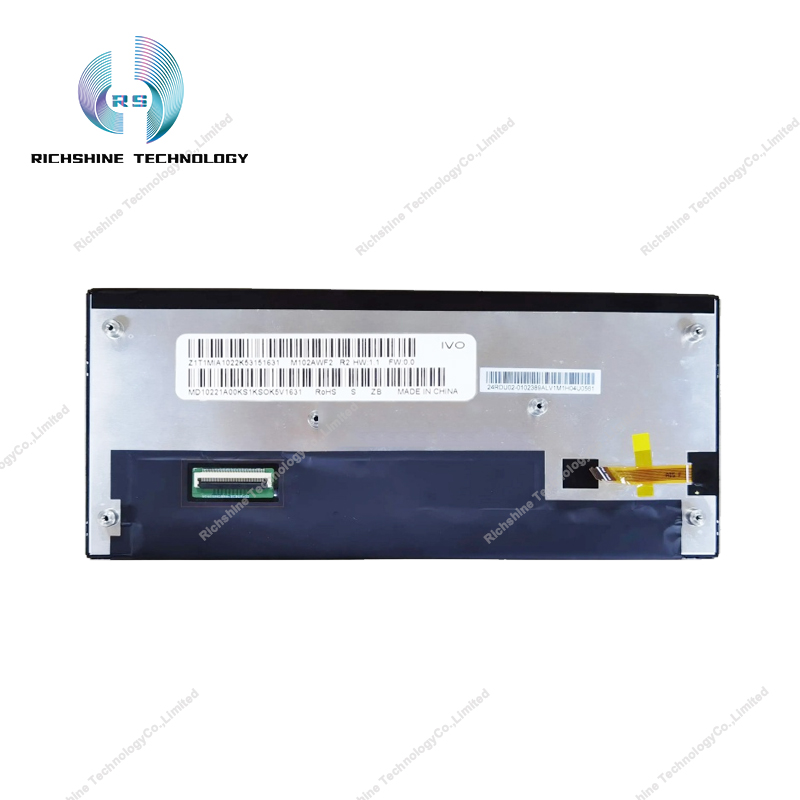

M102AWF2 R2 is a 10.3-inch LCD module product developed by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with a WLED backlight, no backlight drive, and no touch.The display resolution is 1920 (RGB) × 720, the aspect ratio is 8: 3 (width: height), and the pixels are arranged in RGB vertical strips. Its display area size is 243.648 × 91.368 (width × height) mm, The visible size is 245.65 × 93.66 (wide × high) mm, the appearance size is 262.04 × 110.3 (wide × tall) × 16 (thick) mm, and the surface treatment is fog face, Hard coating (3H), reflectance 5.5% (Typ.), and the net weight of the product is 380g (Max.). Backlight aspect of this product uses 8S3P WLED light-emitting side light source, the service life of the light source is 10K hours, without backlight drive. The M102AWF2 R2 features an LVDS (2ch, 8-bit) signal interface with a total of 50 pins, terminal connection, and drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -30 ~ 85 ° C, storage temperature is -40 ~ 90 ° C, and vibration resistance is 3.0G (29.4m / s2).Based on its wide temperature, high brightness, white LED backlight, ultra wide screen, up / down, left / right flip display, surface fog surface and other characteristics, this model is recommended for use in car display.
