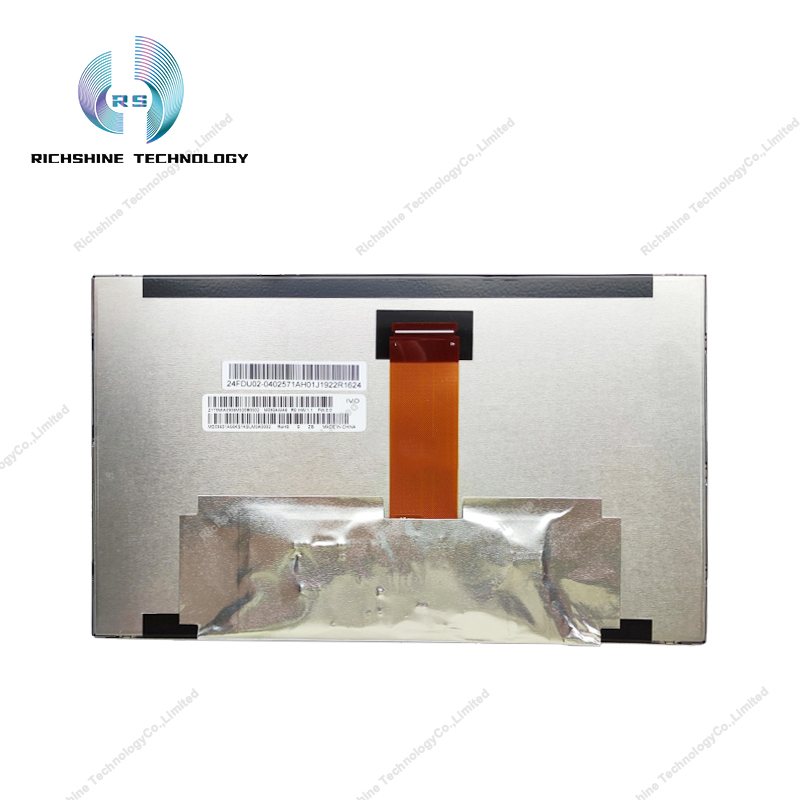

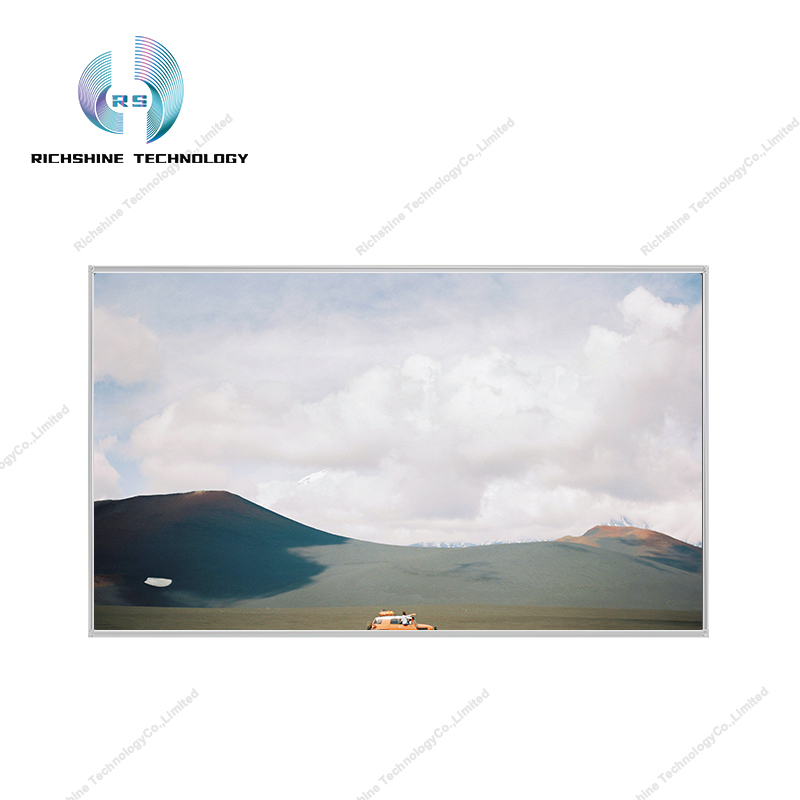

The M090AWA6 R1 is a 9.0-inch a-Si TFT-LCD liquid crystal module product launched by Longteng (IVO). It features WLED backlighting, no backlight driver, and no touch functionality. This product operates within a temperature range of -30 to 85°C and has a storage temperature range of -40 to 90°C, with vibration resistance of 2.9G (28.4 m/s²). Its typical characteristics include wide temperature tolerance, 3G shock resistance, extremely high brightness, and white light LED backlighting. This model is used in products such as outdoor high-brightness displays and vehicle displays. The M090A WA6 R1 has a display resolution of 1280 (RGB) × 720 (WXGA), a 16:9 (width: height) aspect ratio, and RGB vertical stripe pixel arrangement. Its display area dimensions are 198.72 (width) × 111.78 (height) mm, and its physical dimensions are 211.44 (width) × 126.89 (height) × 10.36 (thickness) mm. The surface treatment is hard coating (3H). The product weighs 313g (max.). In terms of backlighting, this model uses a 9S3P WLED-based side-illuminated light source. The light source’s lifespan is 30K hours, and it does not include a backlight driver. The M090 AWA6 R1 employs LVDS (1 channel, 8-bit) signal interface with a total of 40 pins, connected using FPC, and operates at a driving voltage of 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz.
