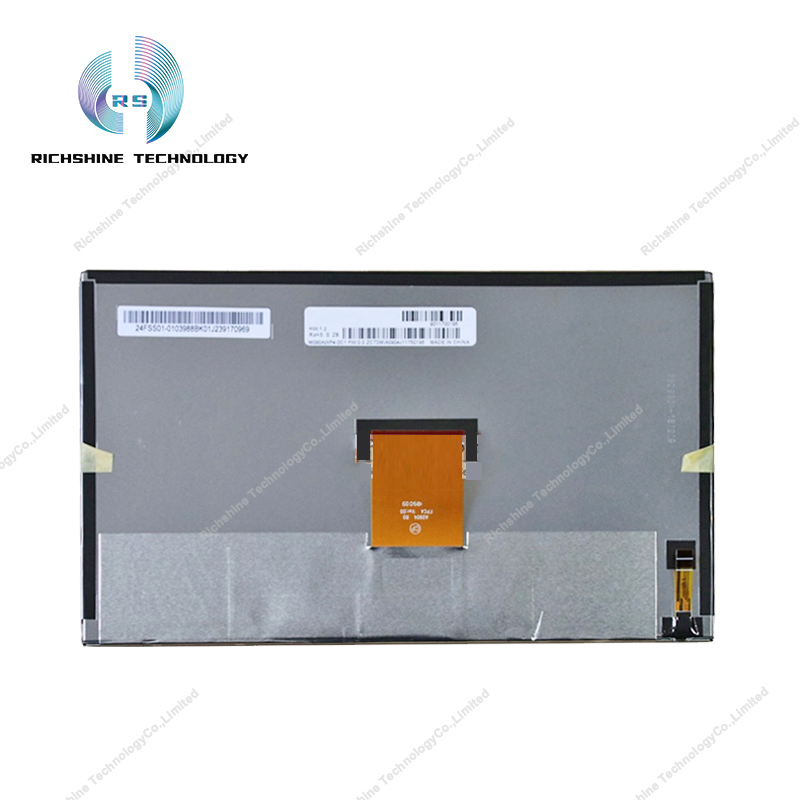

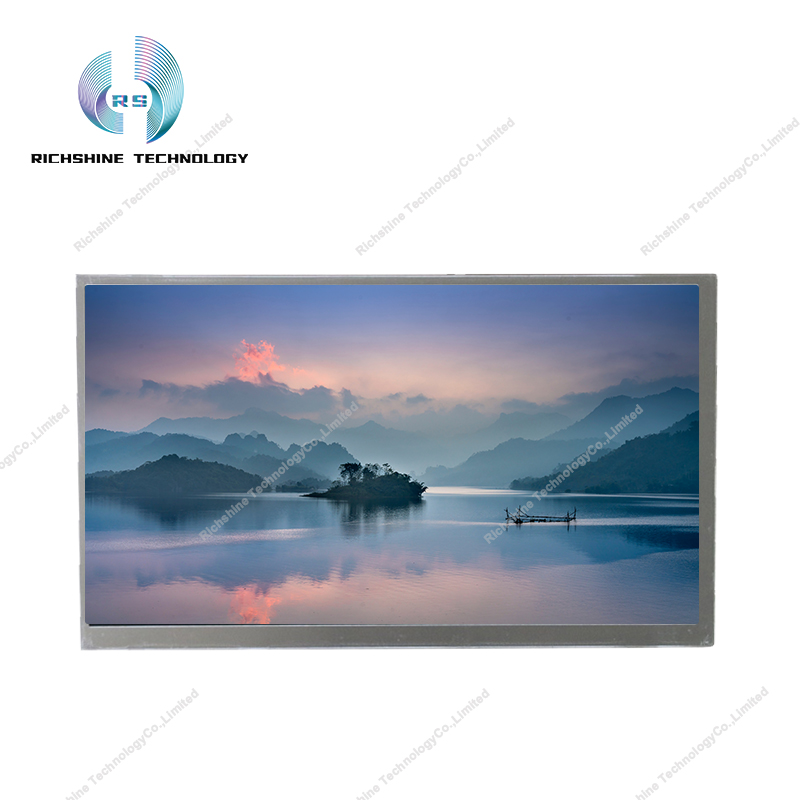

M090AWP4 R0 is a 9.0-inch LCD module product developed by Kunshan Longteng Optoelectronics Co., Ltd. (Longteng, IVO) featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, lacks a backlight driver, and does not have a touch function. As a TN, standard white display, transmissive LCD module product, M090AWP4 R0 can provide a display brightness of 750 cd/m², a transmissive contrast ratio of 700:1, and a viewing angle of 70/70/50/70 (Typ.) (CR ≥ 10) (L/R/U/D), with the best viewing angle being at 6 o’clock. Its response time is 12 (Typ.) (Tr+Td) ms. Due to the use of 6-bit gray-scale signals per pixel, the product can display 2.62M colors, with a color saturation of 70% (NTSC). The backlight for this product uses 8S3P WLED-lit side-illuminated light sources, with a lifespan of 30K hours and no backlight driver included. M090AWP4R0 employs Parallel RGB (1 channel, 6-bit) signal interface with a total of 60 pins, connected using FPC, and has driving voltages of 3.3/11.6/22/-7V (Typ.) (VCC/VDDA/VGH/VGL). Its typical vertical refresh rate Fv is 60Hz. It operates within a temperature range of -30 to 85°C and a storage temperature range of -40 to 90°C, and has vibration resistance of 2.9G (28.4 m/s²). Given its wide temperature range, 3G shock resistance, high brightness, white LED backlight, top/bottom, left/right flip display, surface matte finish, ODM capabilities, and other features, this model is recommended for use in outdoor high-brightness, vehicle display, and other products.
