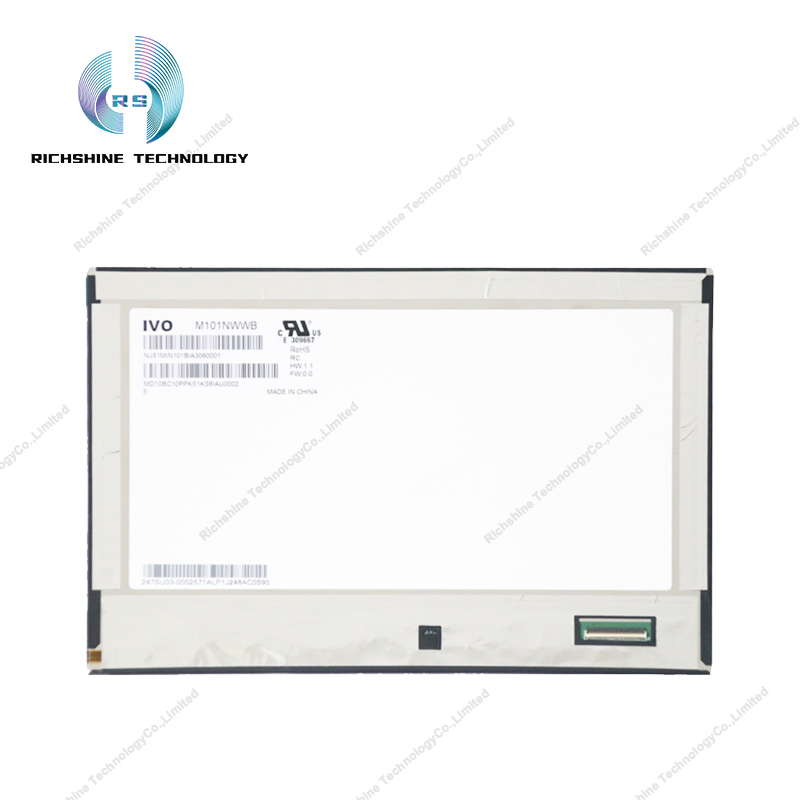

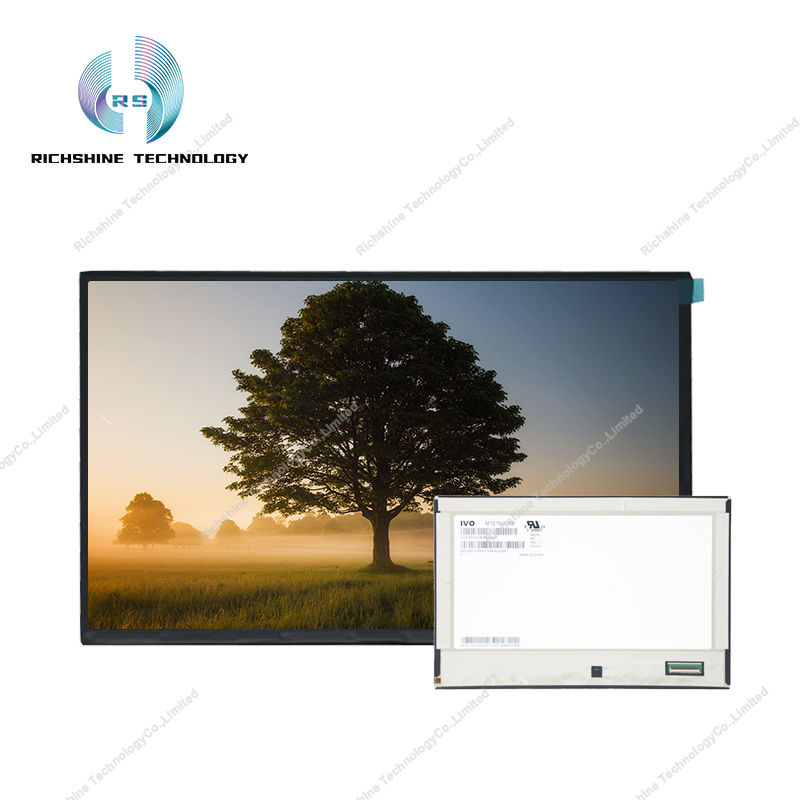

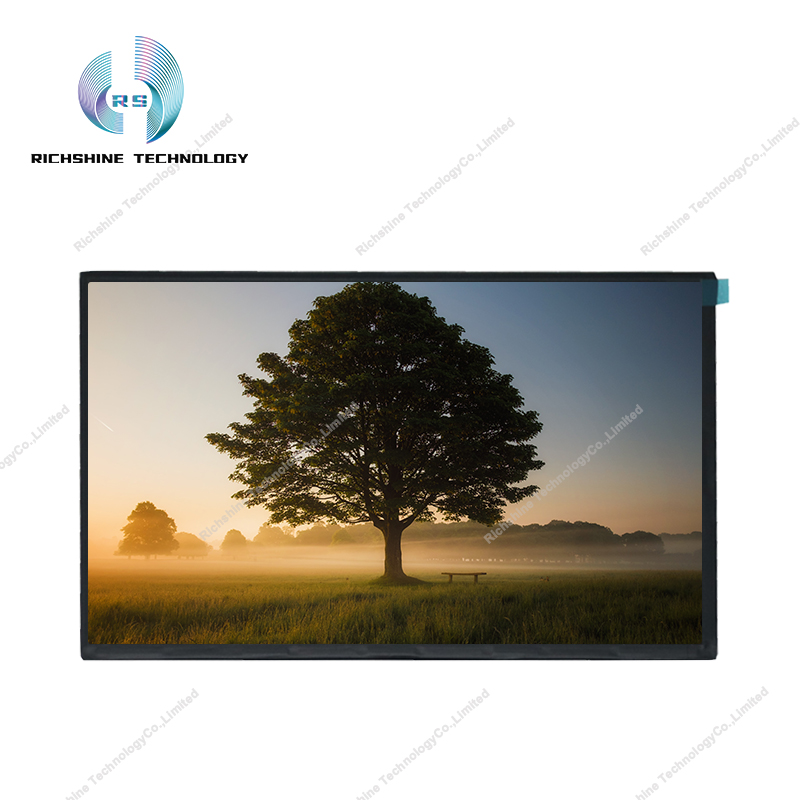

M101NWWB RC 10.1 inch WXGA IPS
- Model:
- M101NWWB RC
M101NWWB RC - Related Model
| Model | Version | |
|---|---|---|
| M101NWWB RC | Rev.00 |
M101NWWBRC is a 10.1 inch a-Si TFT-LCD LCD module product launched by Dragon (IVO), it is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2). White LED backlight, including LED driver, terminal flip, surface fog. This model is used in products such as tablets.The M101NWWB RC display has a resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 216.96 (wide) x 135.6 (high) mm, appearance size is 229.46 (wide) × 149.1 (high) × 4.56 (thick) mm, visual size is 219.96 (wide), x 139.6 (high) mm, surface treatment is fog surface, and product net weight is 160 g (Max.).Backlight aspect of this product uses WLED light source, light source life of 20K hours, including LED driver. The M101NWWBRC features an LVDS (1ch, 8-bit) signal interface, 40 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M101NWWB RC Category :
- Laptop panel
- Specification
