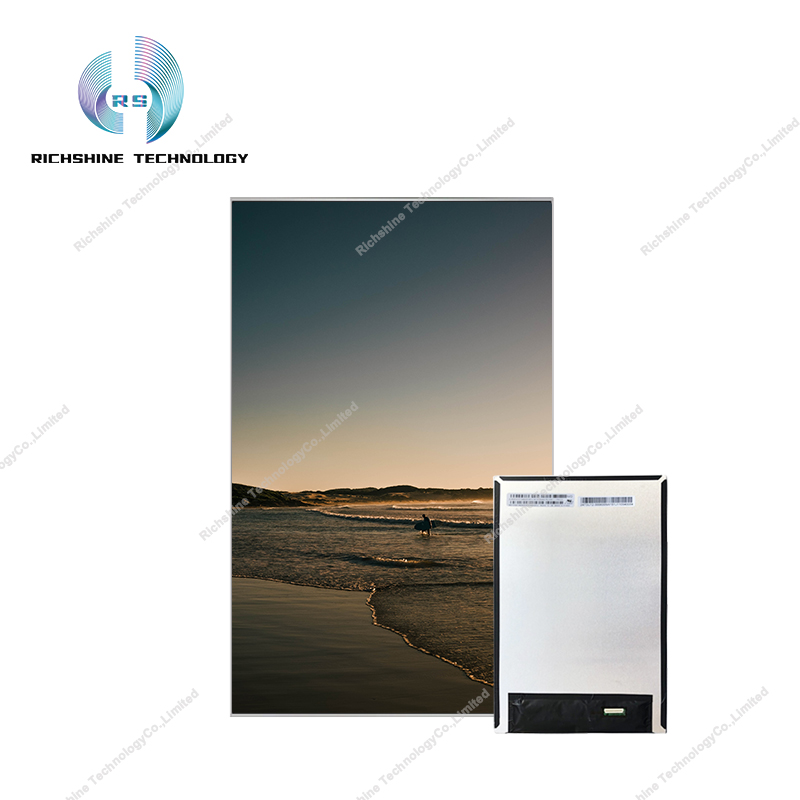

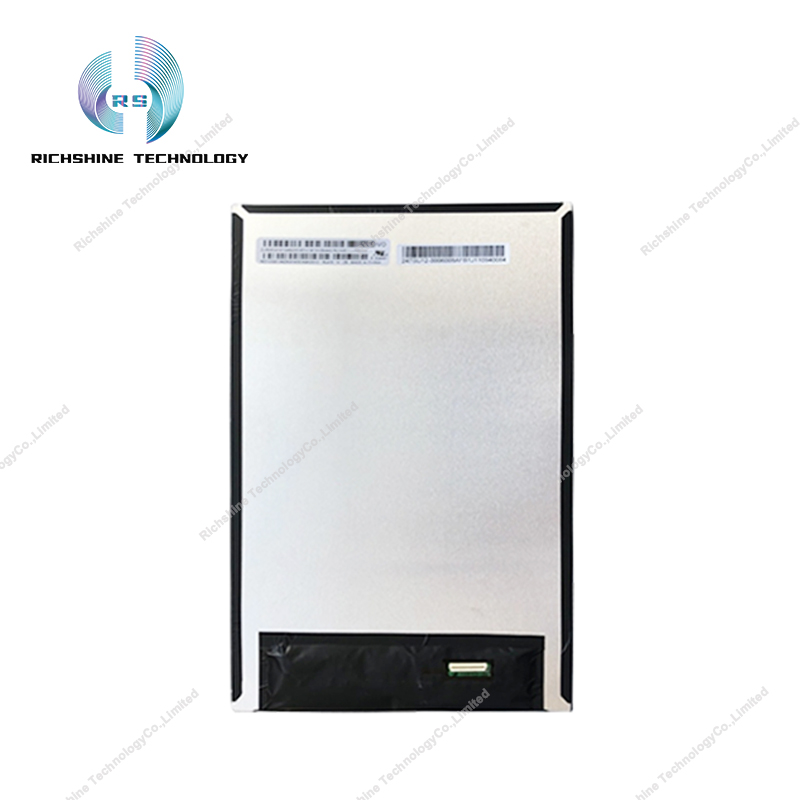

The M101GW4G R0 is a 10.1-inch LCD module product developed by Kunshan Longteng Optoelectronics Co., Ltd. (Longteng, IVO) using a-Si TFT-LCD technology. It features WLED backlighting, no backlight driver, and no touch functionality. The display resolution is 1200 (RGB) × 1920 (WUXGA), with a 10:16 (width: height) aspect ratio. The pixels are arranged in RGB vertical strips. The pixel density calculated by the screen library is 225 PPI. The display area dimensions are 135.36 × 216.576 (width × height) mm, and the physical dimensions are 147.78 × 232 (width × height) × 4.8 (thickness) mm. The surface treatment is matte. The product’s net weight is 155g (Max.). In terms of backlighting, this product employs 5S4P WLED-lit side-illumination sources with a lifespan of 22K hours. It does not include a backlight driver. The M101GW4G utilizes the MIPI (4 data lanes) signal interface, with a total of 40 pins and terminal connection. The driving voltage for the screen is 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz. The operating temperature range is 0 to 60°C, and the storage temperature range is -20 to 60°C. It has vibration resistance of 1.5G (14.7 m/s²). Given its portrait mode, white light LED backlight, matte surface treatment, and other features, this model is recommended for use in tablets.
