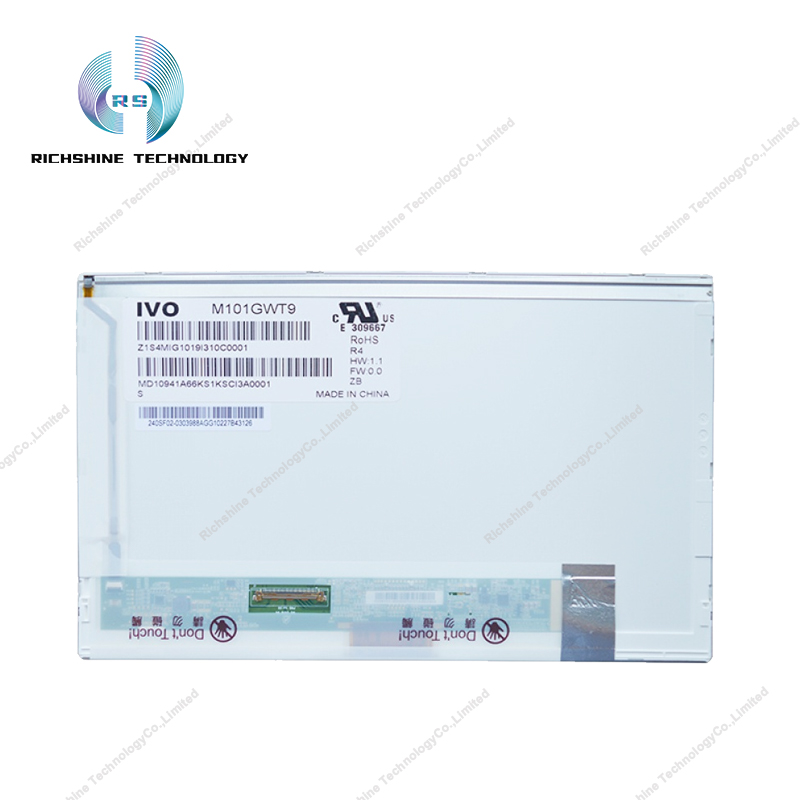

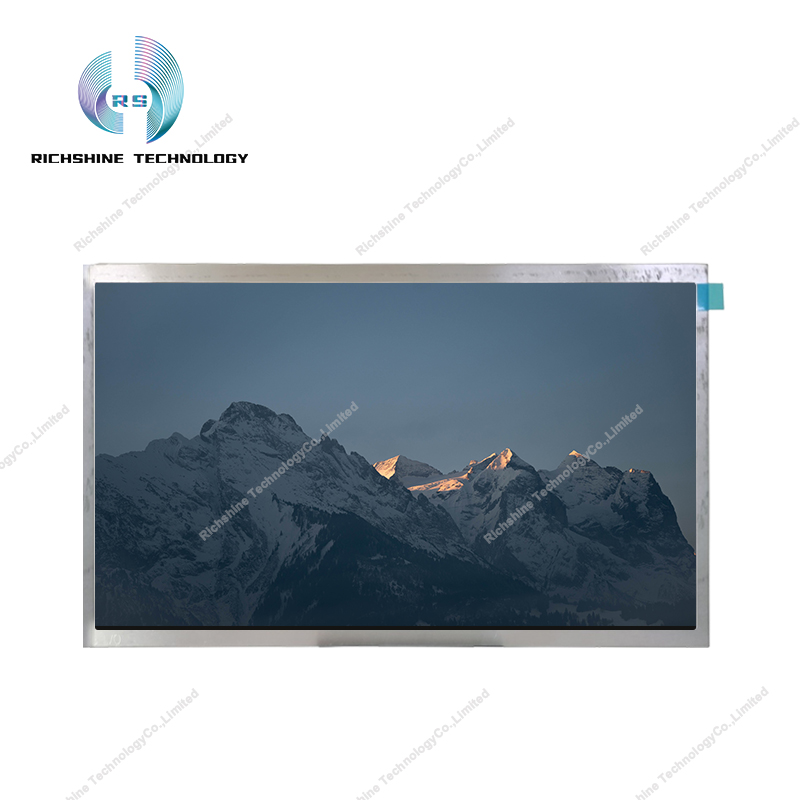

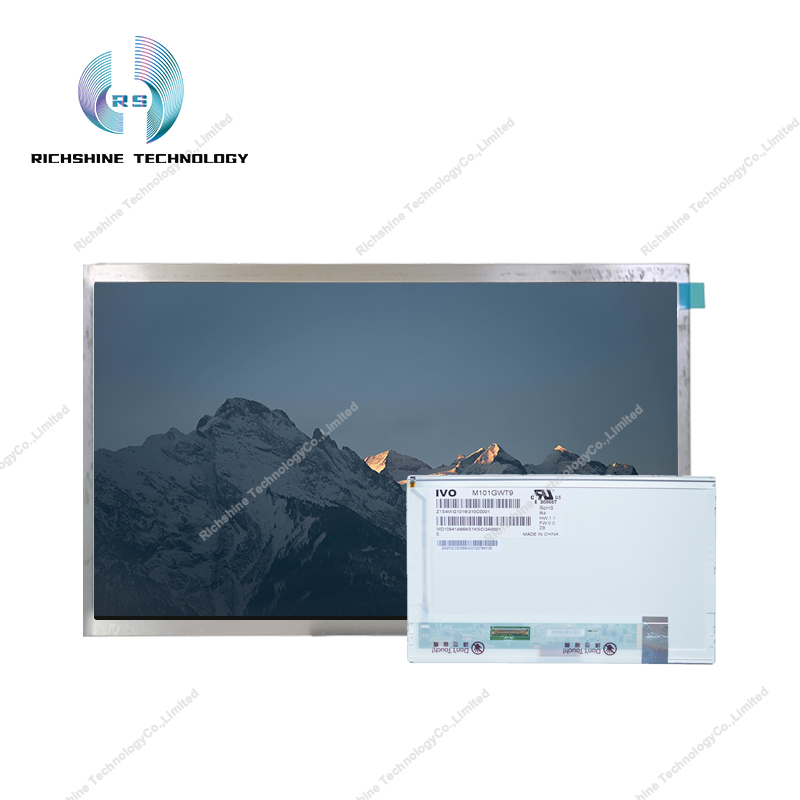

M101GWT9 R4 10.1 inch WSVGA TN
- Model:
- M101GWT9 R4
M101GWT9 R4 - Related Model
| Model | Version | |
|---|---|---|
| M101GWT9 R4 | Rev.00 |
M101GWT9 R4 is a 10.1 inch a-Si TFT-LCD liquid crystal module product introduced by Dragon (IVO), it is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2). White LED backlight, including LED driver, terminal flip, 180 degrees flip display, 6 / 8 gray scale optional, surface fog.The display has a resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 222.72 (width) x 125.28 (height) mm,Exterior size is 235 (wide) x 143 (high) x 5.2 (thick) mm, visible size is 226.47 (wide) × 128.48 (high) mm, surface treatment is fog, hard coating (3H), net weight of 220 g (Max.).The backlight aspect of this product uses 8S4P WLED light source, the service life of the light source is 30K hours, including LED driver. The M101GWT9 R4 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 40 pins, terminal connections, and drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz. This model is used in industrial and other products.
- M101GWT9 R4 Category :
- Laptop panel
