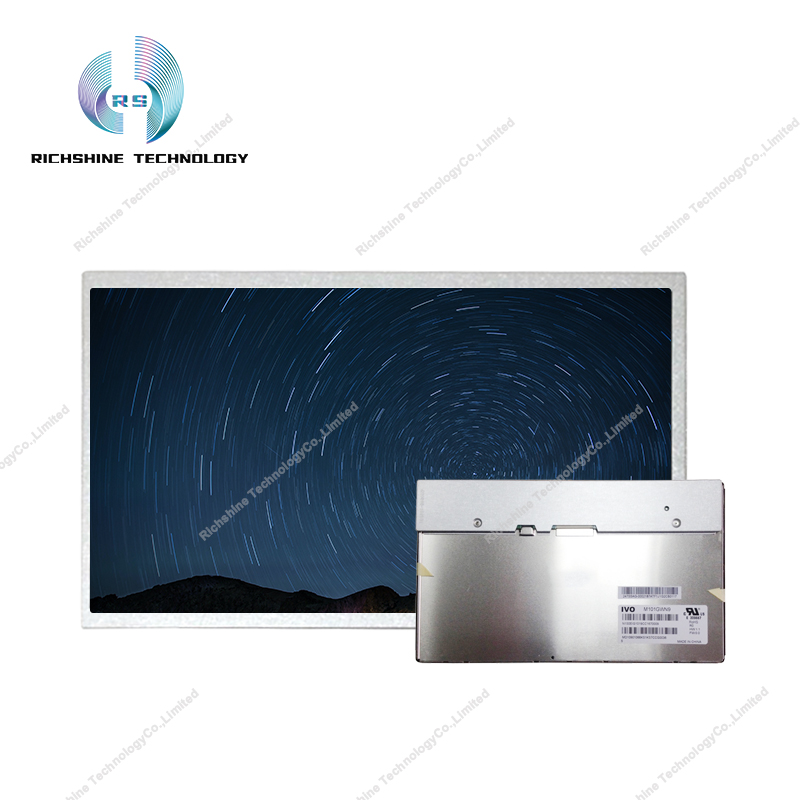

M101GWN9 R0 is a 10.1-inch liquid crystal module product introduced by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with WLED backlighting, LED-powered backlighting drive, and touchless.The display has a resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 227.2 × 125.28 (Width × Height) mm, visible size 225.72 × 128.28 (Width × High) mm, exterior size 244 × 143 (Width × H) × 12.9 (Thickness) mm, surface treatment a fog face, Hard coating (3H), net weight 440 / 440 g (Typ. / Max.). Backlight side of this product uses WLED light source, the service life of the light source is 50K hours, including LED driver. The M101GWN9 R0 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 20 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.It has a working temperature of -30 ~ 85 ° C, a storage temperature of -30 ~ 85 ° C and a vibration resistance of 1.5G (14.7m / s2).Based on its wide temperature, white LED backlight, life more than 50,000 hours, including LED drive, terminal formal, 6 / 8 gray scale optional, surface fog surface and other characteristics, this model is recommended for industrial use.
