M101NWT2 R2 10.1 inch WSVGA TN
- Model:
- M101NWT2 R2
M101NWT2 R2 - Related Model
| Model | Version | |
|---|---|---|
| M101NWT2 R2 | Rev.01 |

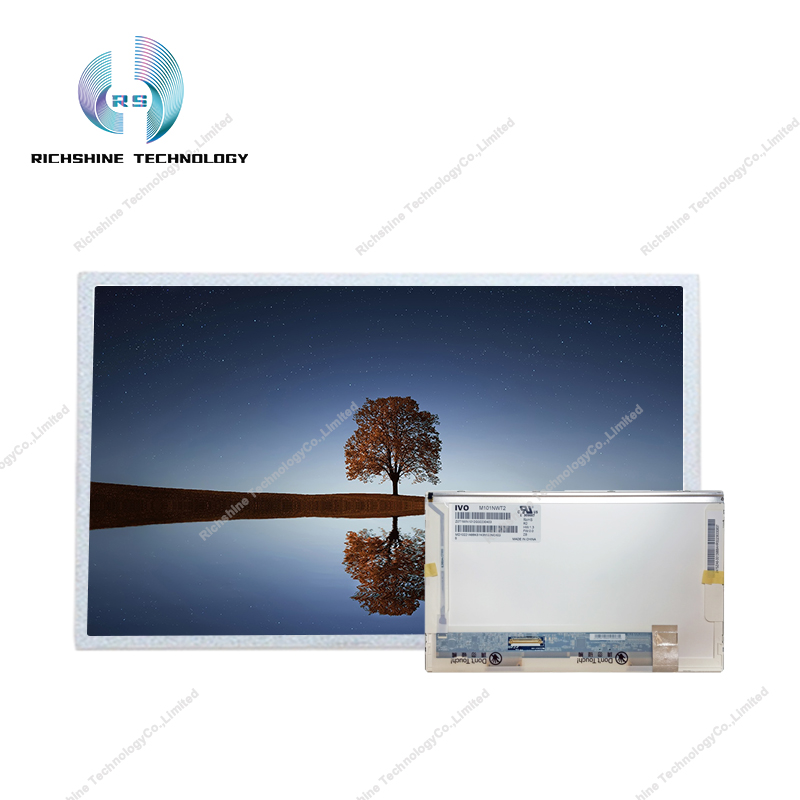

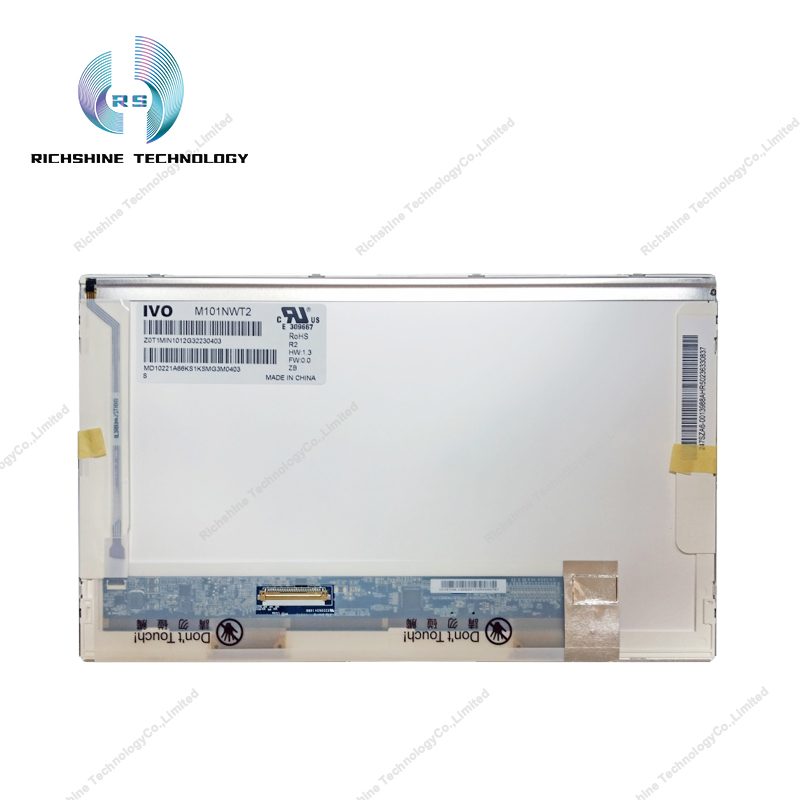

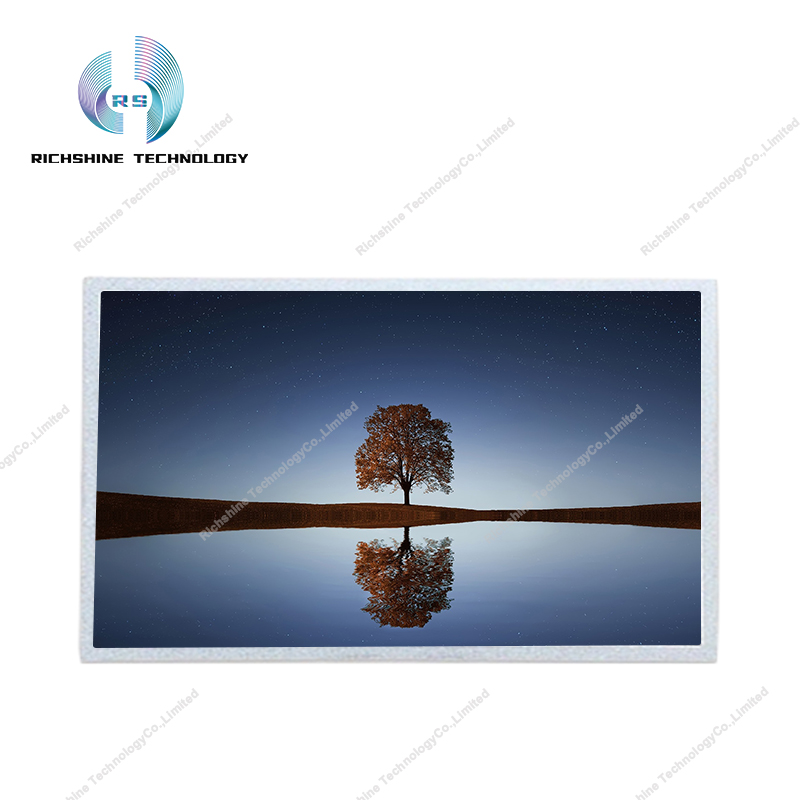

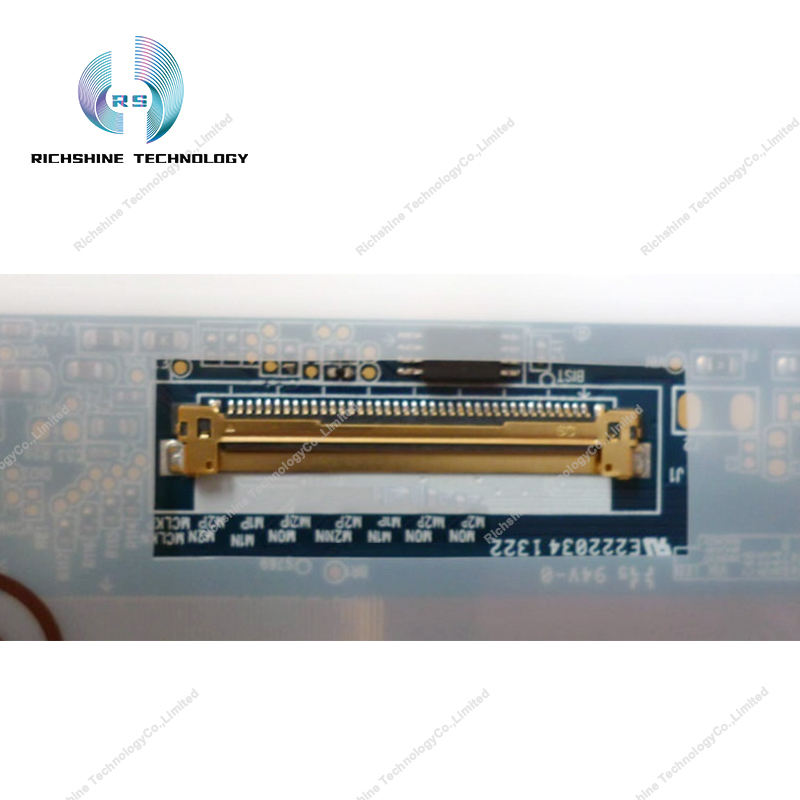

M101NWT2 R2 Kunshan Longteng Optoelectronics Co., Ltd. (Longteng, IVO) introduced a 10.1-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with WLED backlighting, LED-powered backlighting drive, and touchless.The display has a resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 222.72 x 125.28 (width x height) mm,The visible size is 226.42 × 128.48 (wide × high) mm, the appearance size is 235 × 143 (wide × tall) × 5.2 (thick) mm. The surface treatment is fog surface, hard coating, the net weight of the product is 190g (Max.) The appearance style is thick screen (PCBA bend, thickness ≥ 5.2mm). Backlight aspect of this product uses WLED light source, light source life of 10K hours, including LED driver. The M101NWT2 R2 features an LVDS (1ch, 6-bit) signal interface with a total of 40 pins, terminal connections and drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, and its storage temperature is -20 ~ 60 ° C.Based on its white LED backlight, including LED driver, terminal flip, surface fog surface and other features, this model is recommended for online books.
- M101NWT2 R2 Category :
- Laptop panel
- Specification
