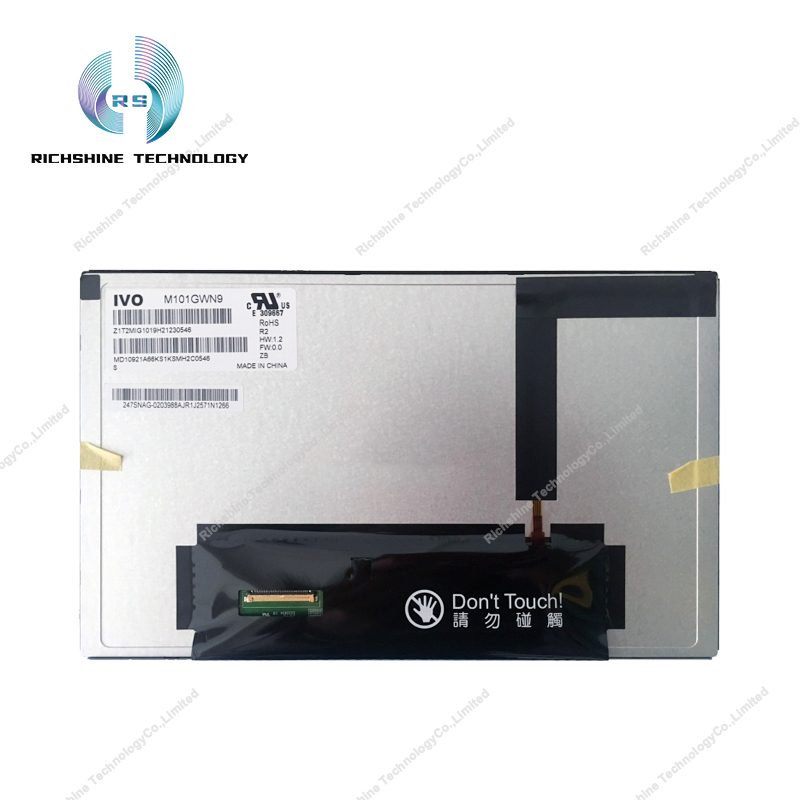

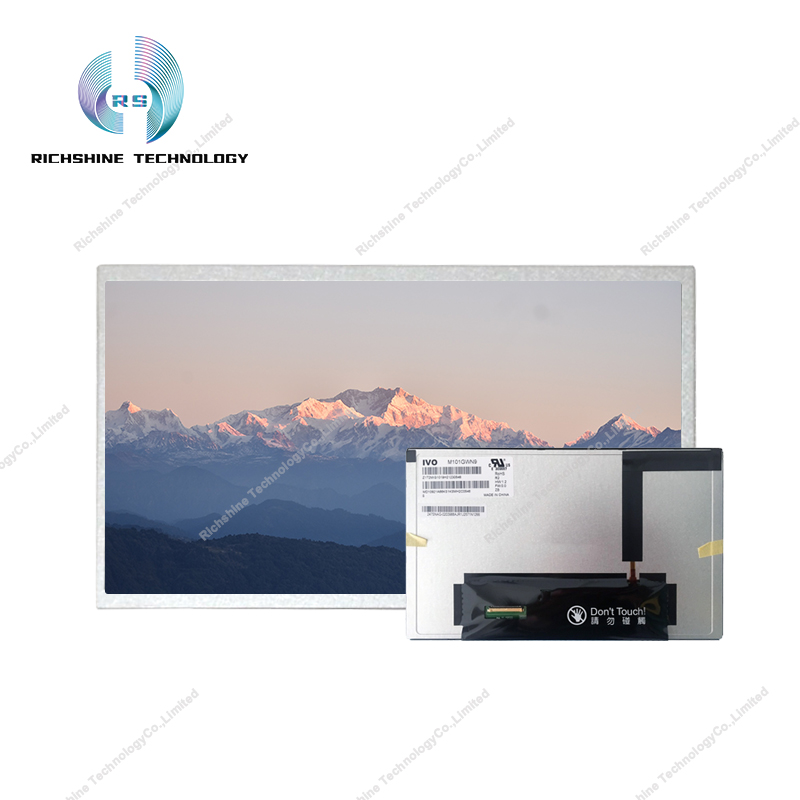

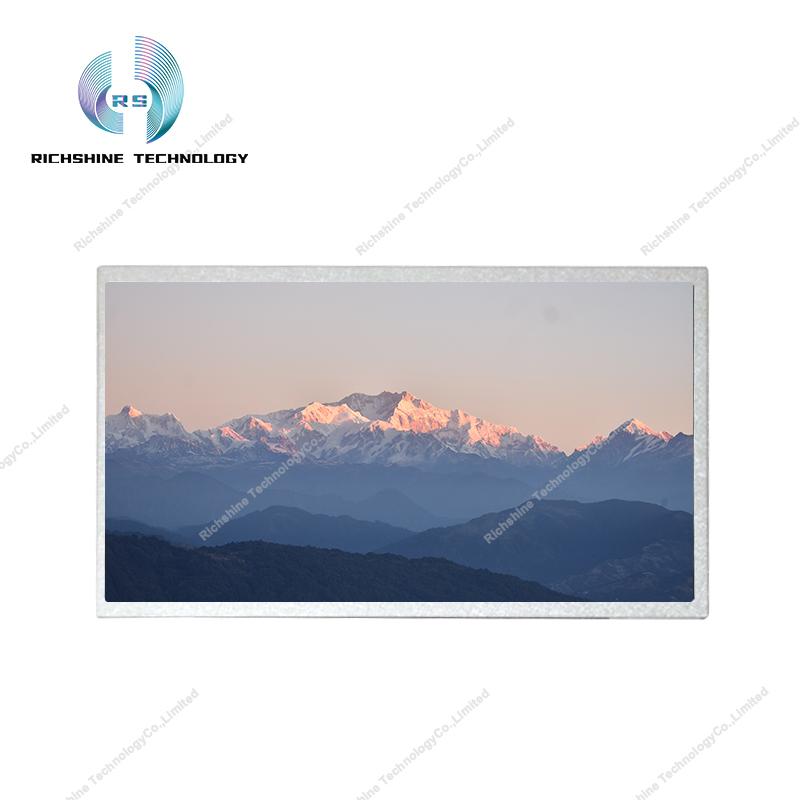

M101GWN9 R2 10.1 inch WSVGA TN
- Model:
- M101GWN9 R2
M101GWN9 R2 - Related Model
| Model | Version | |
|---|---|---|
| M101GWN9 R2 | Rev.00 |
M101GWN9 R2 is a 10.1-inch liquid crystal module product introduced by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with WLED backlighting, LED-powered backlighting drive, and touchless.The display has a resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 227.2 × 125.28 (Width × Height) mm, visible size 225.72 × 128.28 (Width × High) mm, exterior size 235 × 143 (Width × H) × 8.04 (Thickness) mm, surface treatment a fog face, Hard coating (3H), net product weight 310 / 341 g (Typ. / Max.). Backlight aspect of this product uses WLED light source, the service life of the light source is 30K hours, including LED driver. The M101GWN9 R2 features an LVDS (1ch, 8-bit) signal interface with a total of 40 pins, terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -20 ~ 70 ° C, and its storage temperature is -30 ~ 80 ° C.Based on its white LED backlight, including LED actuator, terminal flip, surface fog and other features, this model is recommended for industrial use.
- M101GWN9 R2 Category :
- Laptop panel
- Specification
