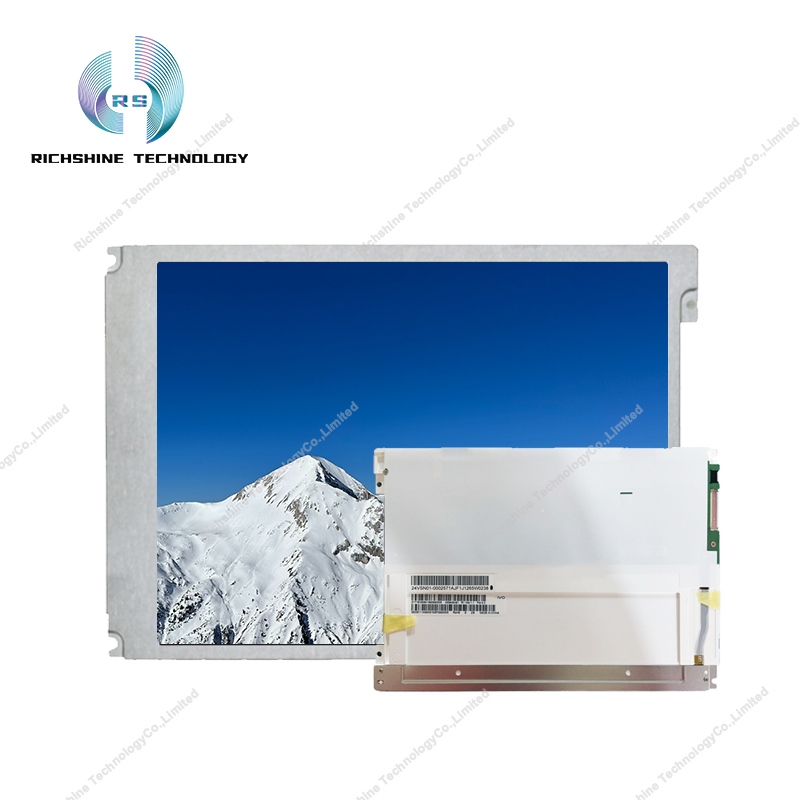

M084GNS1 R1 is Dragon (IVO) introduced a use a-Si TFT-LCD technology 8.4 inch LCD module products, it is equipped with WLED backlight, including LED driver backlight driver, no touch. Its typical features are: 3G seismic, white LED backlight, life is greater than 50,000 hours, including LED drive, up / down, left / right flip display, 6 / 8 gray scale optional, surface fog.Its working temperature is -20 ~ 70 ° C, storage temperature is -30 ~ 80 ° C, and vibration resistance is 2.9G (28.4m / s2). This model is suitable for industrial applications.The M084GNS1 R1 has a display resolution of 800 (RGB) × 600 (SVGA), an aspect ratio of 4: 3 (width: height), and pixels arranged in RGB vertical strips. It has a display area dimension of 170.4 × 127.8 (wide × high) mm, a viewing dimension of 173.4 × 131.2 (wide × tall) mm, an appearance dimension of 203 (wide) × 142.5 (high) × 6.2 (thick) mm, and a surface treatment of fog, with a net weight of 200 / 220 g (Typ. / Max.).The backlight aspect of this product uses 8S4P WLED light source, the service life of the light source is 50K hours, including LED driver. The M084GNS1 R1 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 20 pins, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
