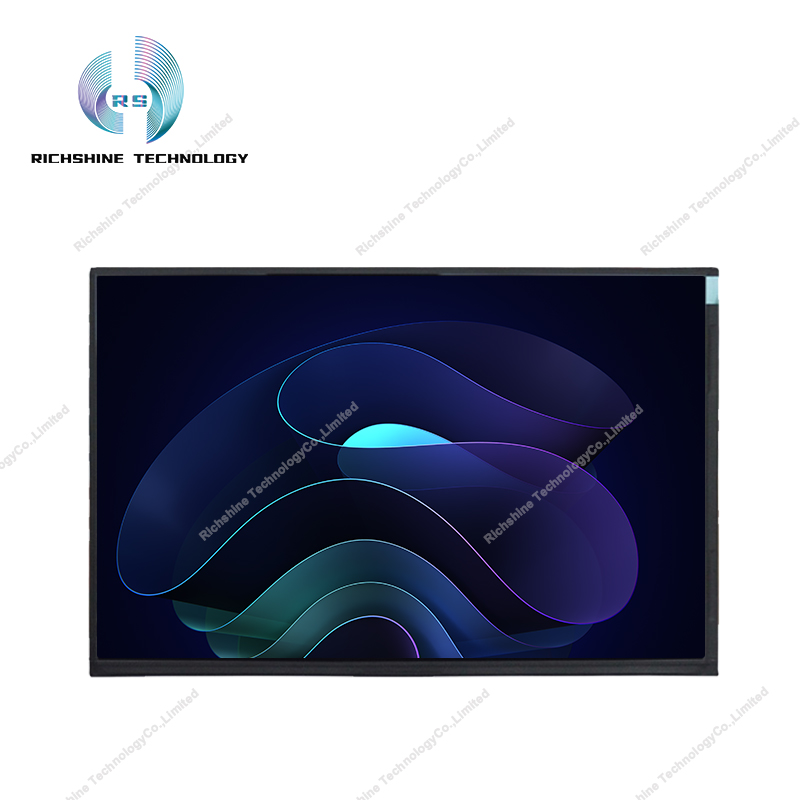

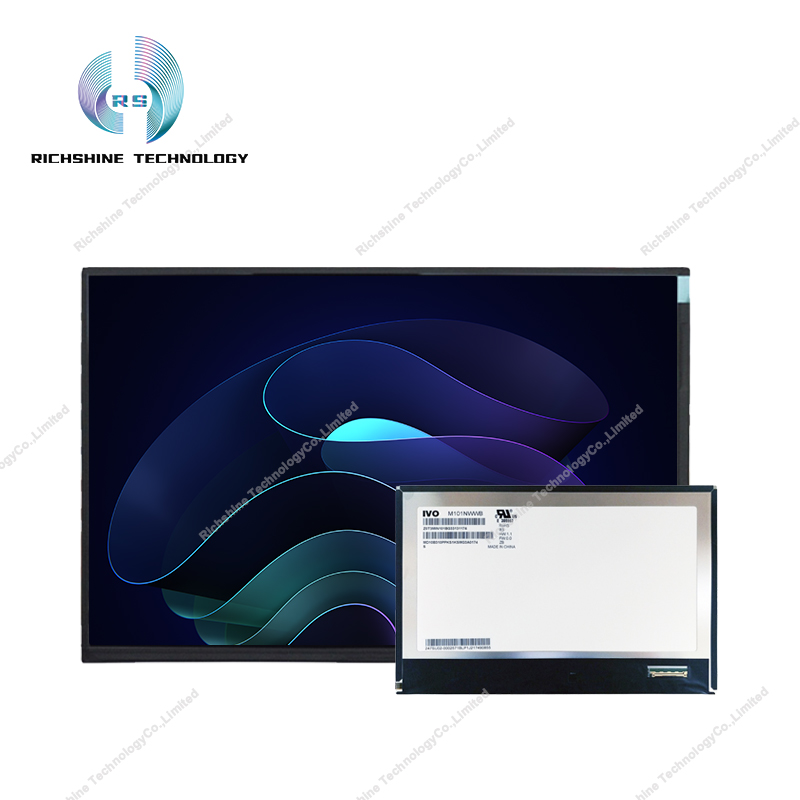

M101NWWB R3 10.1 inch WXGA IPS
- Model:
- M101NWWB R3
M101NWWB R3 - Related Model
| Model | Version | |
|---|---|---|
| M101NWWB R3 | Rev.00 |

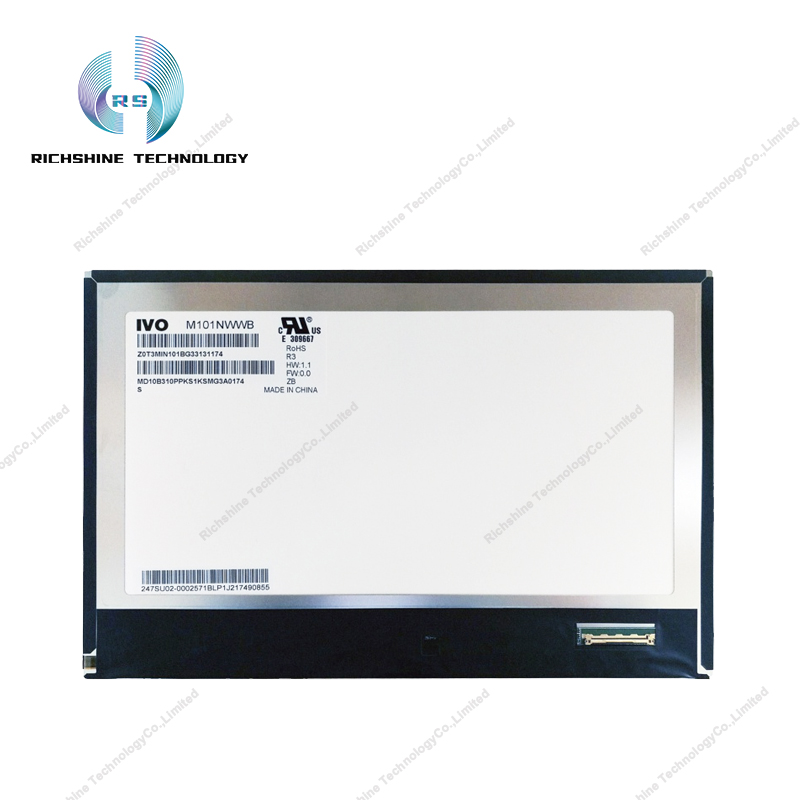

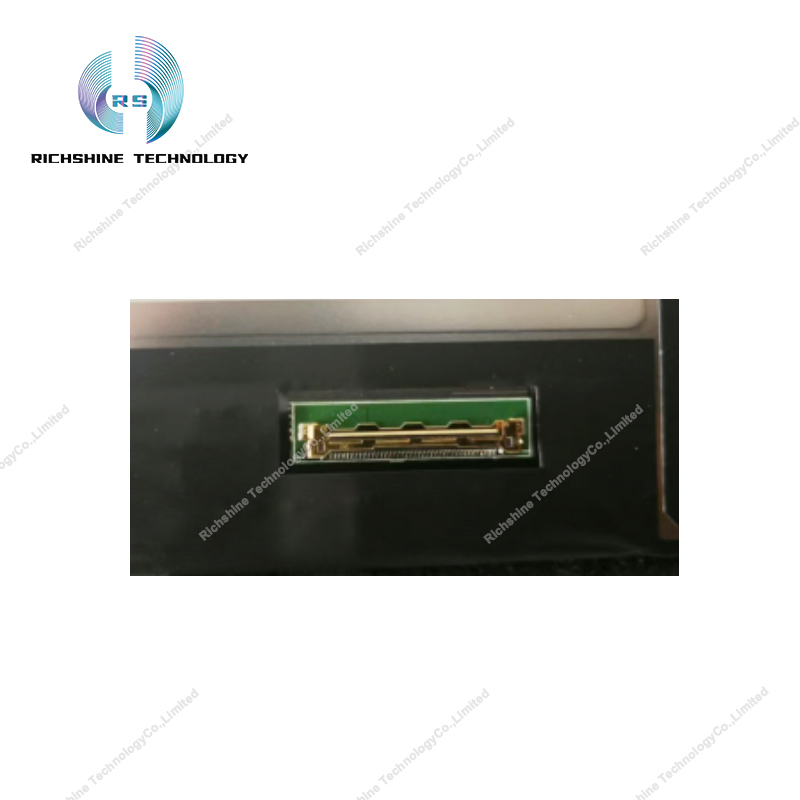

M101NWWBR3 is Dragon (IVO) introduced a 10.1 inch liquid crystal module using a-Si TFT-LCD technology products, it is equipped with WLED backlight, including LED driver backlight driver, no touch. Its typical features are: white LED backlight, including LED driver, terminal flip, surface mirror.Its working temperature is -20 ~ 70 ° C, storage temperature is -30 ~ 80 ° C, and vibration resistance is 1.5G (14.7m / s2). This model is suitable for use in tablet computers, industrial applications.The M101NWWB R3 has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 1610 (W: H), and pixels are arranged in RGB vertical strips. It has a display area dimension of 216.96 × 135.6 (wide × high) mm, a viewing dimension of 219.96 × 139.6 (wide × tall) mm, an appearance dimension of 229.46 (wide) × 149.1 (high) × 4.56 (thick) mm, and a surface finish of mirror (Haze 0%), Hard coating (3H), Product net weight 160 g (Max.). Backlight aspect of this product uses WLED light source, light source life of 25K hours, including LED driver. The M101NWWBR3 features an LVDS (1ch, 8-bit) signal interface with a total of 40 pins, terminal connection, and drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M101NWWB R3 Category :
- Laptop panel
