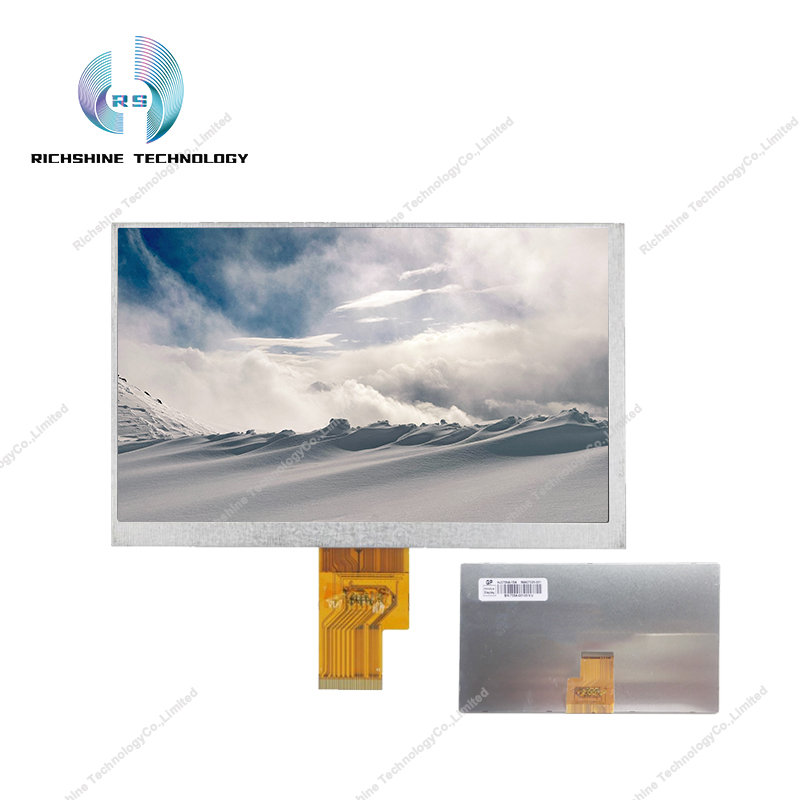

HJ070NA-13A is a 7.0-inch liquid crystal module using a-Si TFT-LCD technology by Innolux, Inc., which is fitted with a WLED backlight, no backlight drive, and no touch.The HJ070NA-13A has a display resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 1710 (width: height), and pixels are arranged in RGB vertical strips. It has a display area dimension of 153.6 × 90 (wide × high) mm, a viewing dimension of 156.4 × 92.8 (wide × tall) mm, an appearance dimension of 165.75 × 105.59 (wide × height) × 2.65 (thick) mm, surface treatment of Clear, and a net product weight of 92.8 g (Typ.). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, without backlight drive. The HJ070NA-13A features LVDS (1 ch, 6 / 8-bit) Signal interface, a total of 40 pins, using FPC connection, drive screen voltage of 3.3 / 11.0 / 20.0 / -6.8 V (Typ.) (DVDD / AVDD / VGH / VGL). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is -10 ~ 50 ° C, and its storage temperature is -20 ~ 60 ° C.Based on its white LED backlighting, top / bottom, left / right flip display, 6 / 8 bit gray scale optional, CABC, and other features, this model is recommended for use in tablets, portable navigators, digital photo frames, portable DVDs, MID UMPC.
