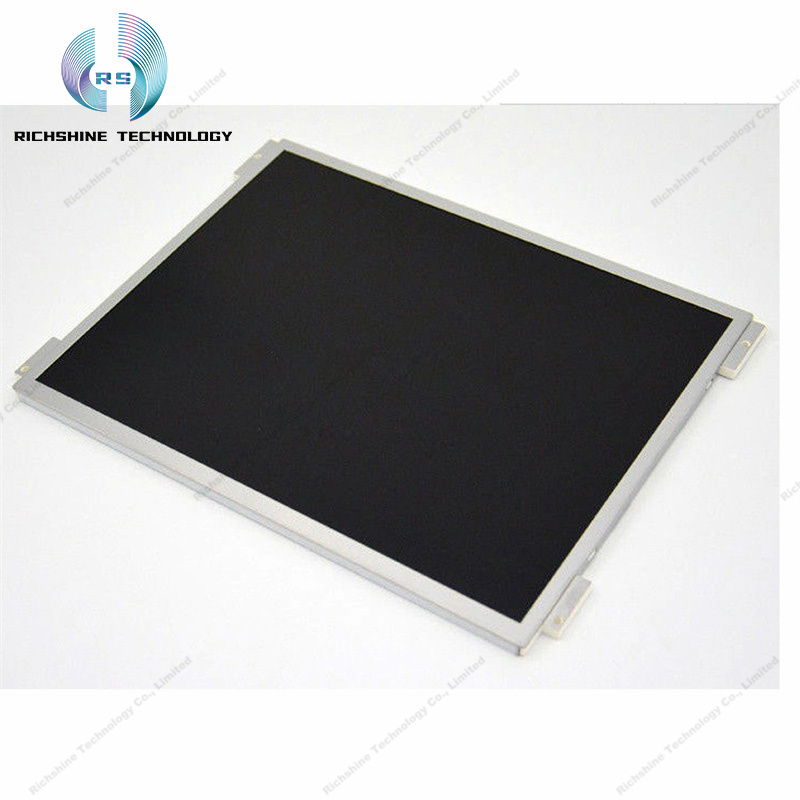

G104XVN01.010 is a 10.4 inch a-Si TFT-LCD LCD module product introduced by AUO, which is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -30 ~ 80 ° C, the storage temperature is -30 ~ 80 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: wide temperature, white LED backlight, life more than 70,000 hours, including LED drive, 180 degrees flip display, 6 / 8 gray scale optional, surface fog. This model is used in industrial and other products.The G104XVN01.010 displays a resolution of 1024 (RGB) × 768 (XGA) with an aspect ratio of 4: 3 (width: height). The pixels are arranged in RGB vertical strips. Its display area size is 210.4 (wide) x 157.8 (high) mm, and its exterior size is 238.6 (wide) x 175.8 (high) x 7.2 (thick) mm,The visual dimension is 215.4 (wide) × 161.8 (high) mm, the surface treatment is fog, Hard coating (3H), the net weight of the product is 295 g (max.).Backlight aspect this product uses 2 strings WLED light-emitting side light source, the service life of the light source is 70K hours, including LED driver. The G104XVN01.010 features an LVDS (1ch, 6 / 8-bit) signal interface, a total of 30 pins, with terminal connections, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
