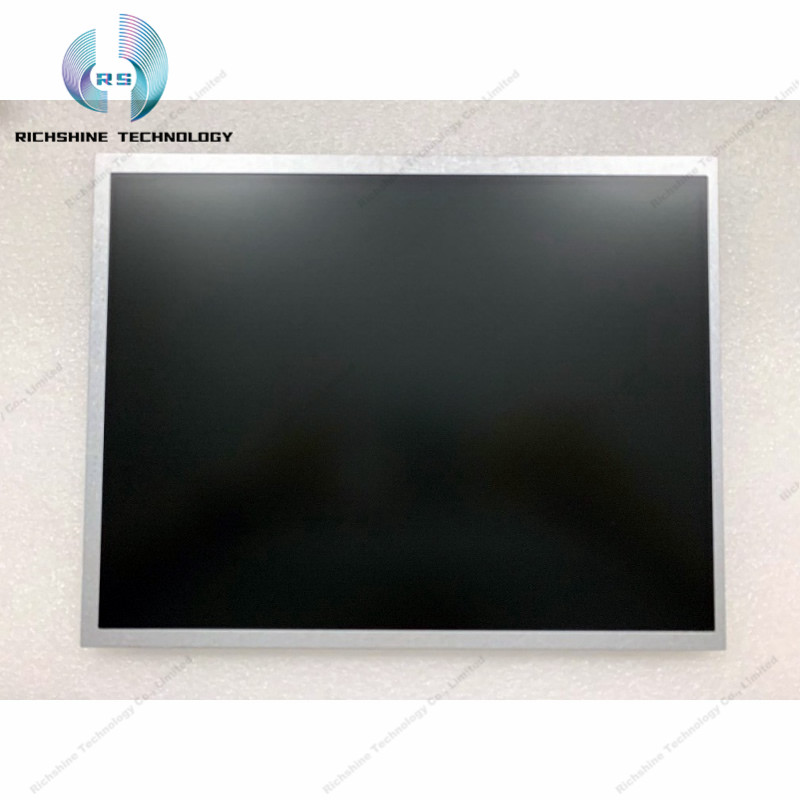

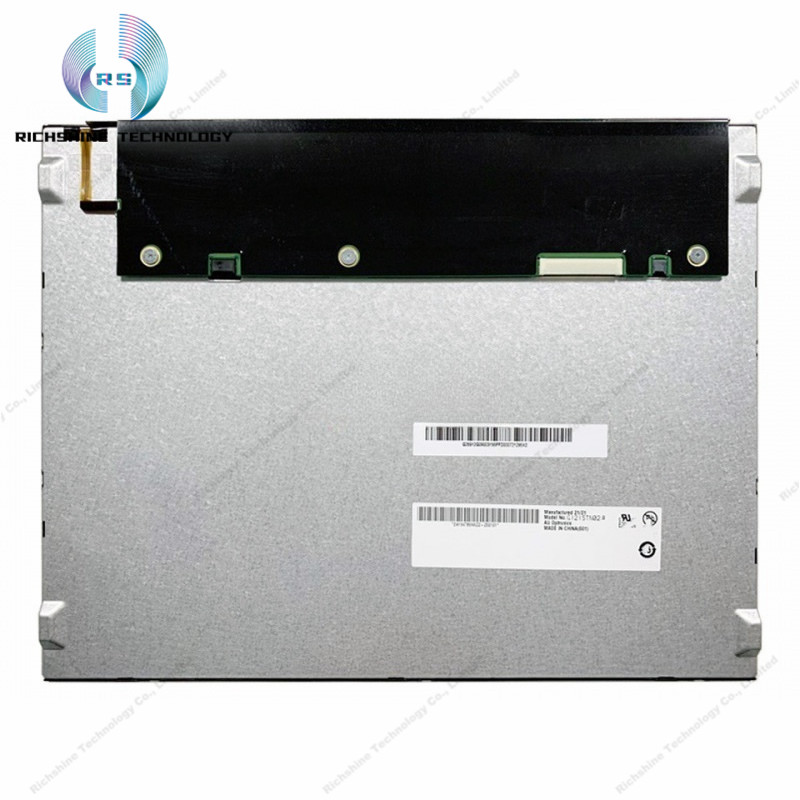

G121STN02.0 is a 12.0-inch liquid crystal module product using a-Si TFT-LCD technology, which is fitted with WLED backlighting, LED-powered backlighting and touchless.The display has a resolution of 800 (RGB) × 600 (SVGA), an aspect ratio of 4: 3 (width: height), and pixels are arranged in RGB vertical strips. It has a display area dimension of 246 × 184.5 (wide × high) mm, a viewing dimension of 249 × 187.5 (wide × tall) mm, an appearance dimension of 26.5 × 203 (wide × height) × 9 (thick) mm, and a surface treatment of fog, hard coating (3H), with a net weight of 600g (Max.). Backlight side of this product uses WLED light source, the service life of the light source is 50K hours, including LED driver. LVDS (1ch, 6 / 8-bit) signal interface, a total of 20 pins, using terminal connection, drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.It has a working temperature of -30 ~ 85 ° C, a storage temperature of -30 ~ 85 ° C and a vibration resistance of 1.5G (14.7m / s2).Based on its wide temperature, ultra-high brightness, white LED backlighting, life of more than 70,000 hours, including LED drive, terminal backing, 180 degree flip display, 6 / 8 bit gray scale optional, surface fog surface, etc., this model is recommended for use in industry.
