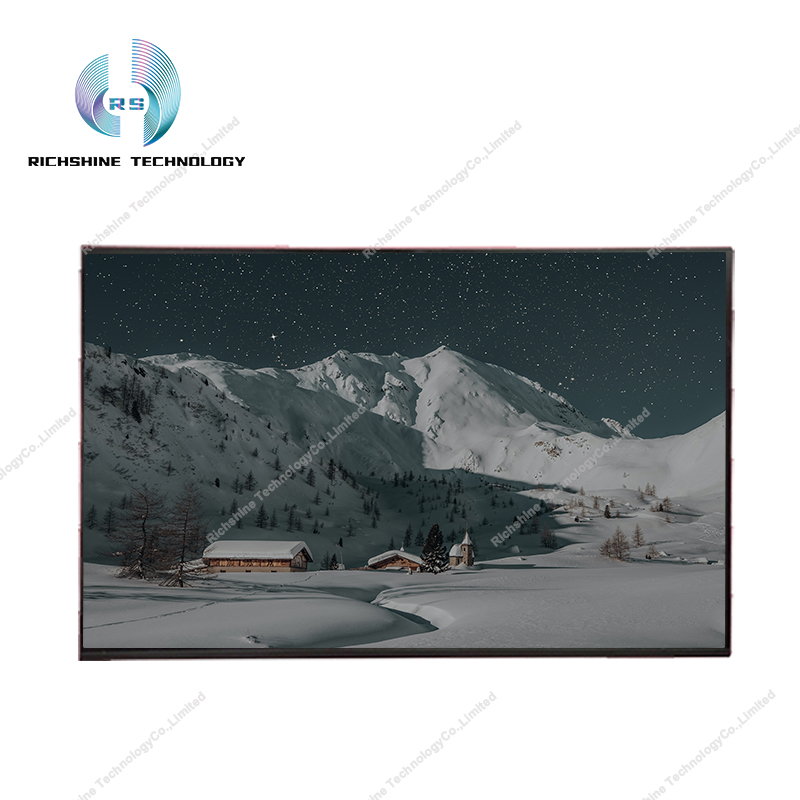

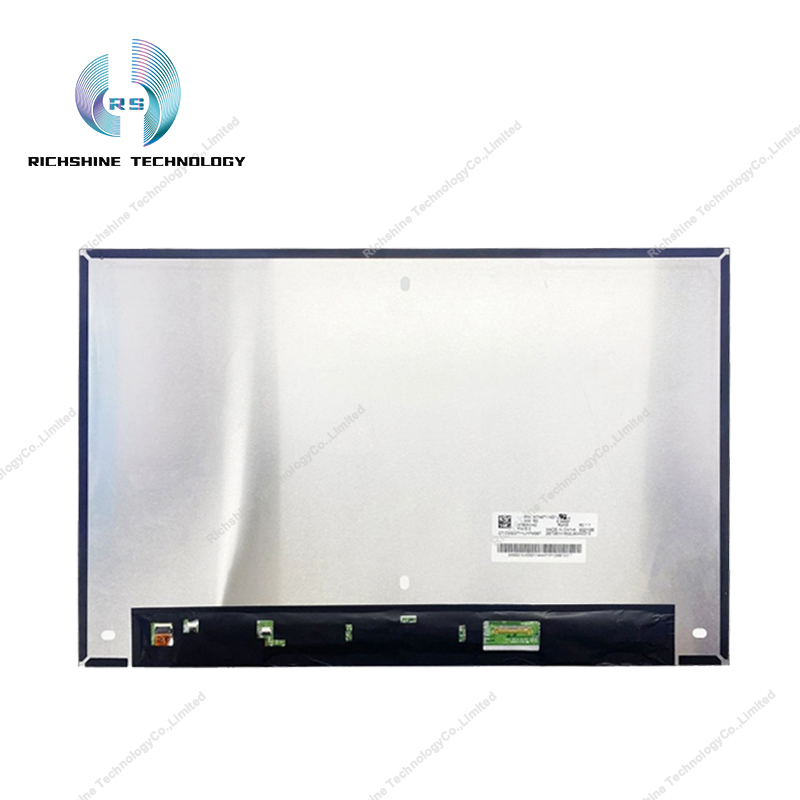

X160NV42 R0 (alias: M74471-ND1) is a 16.0-inch liquid crystal module product introduced by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with a WLED backlight, LED-powered backlight drive, and touchless.The X160NV42 R0 has a display resolution of 1920 (RGB) × 1200 (WUXGA), an aspect ratio of 16? 10 (W: H), and pixels are arranged in RGB vertical strips. Its display area size is 344.68 × 215.42 (wide × high) mm, appearance size is 349.68 × 225.12 (wide × tall) × 4.1 (thick) mm, surface treatment is fog surface, product net weight 310g (Max.) appearance style is thin screen (PCBA bend, thickness ≤ 3.0mm). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The X160NV42 R0 features an eDP (2 Lanes) signal interface with 30 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its working temperature is 0 ~ 50 ° C, storage temperature is -20 ~ 60 ° C, and vibration resistance is 1.5G (14.7m / s2).Based on it sRGB, high brightness, white LED backlight, including LED driver, terminal flip, surface fog surface, Specifications: Privacy / Sharing, DC Dimming, eDP1.4, LBL, HP Pars Number: M74471-ND1, for HP EliteBook 660 16 inch G11, etc. This model is recommended for notebooks.
