M101NWWB R8 10.1 inch WXGA IPS
- Model:
- M101NWWB R8
M101NWWB R8 - Related Model
| Model | Version | |
|---|---|---|
| M101NWWB R8 | Rev.00 |

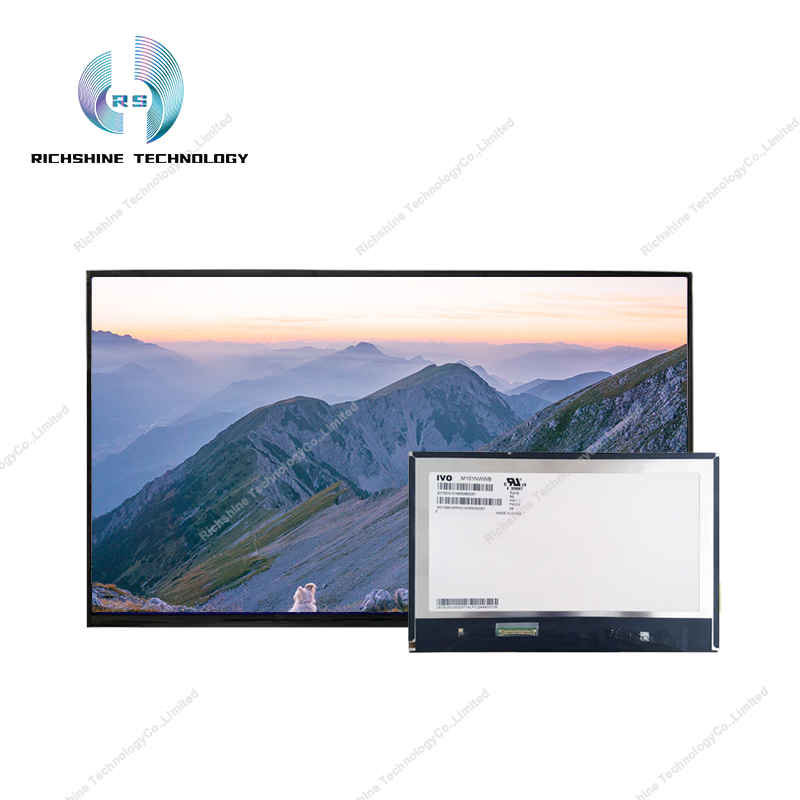

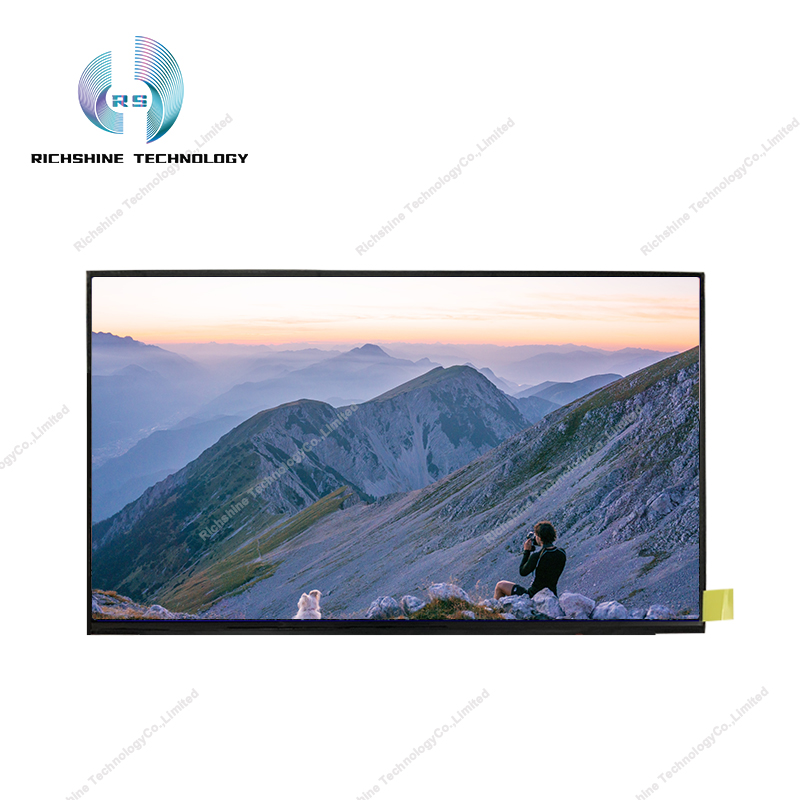

The M101NWWBR8 is a 10.1-inch a-Si TFT-LCD LCD module from Dragon Teng (IVO). It is equipped with WLED backlight, no backlight driver, no touch.The working temperature of this product is -20 ~ 70 ° C, and the storage temperature is -30 ~ 80 ° C.Its typical features are: white LED backlight, terminal flip, surface mirror. This model is used in products such as tablets.The M101NWWB R8 has a display resolution of 1280 (RGB) × 800 (WXGA), an aspect ratio of 1610 (width: height), and pixels are arranged in RGB vertical strips.Its display area size is 216.96 (wide) × 135.6 (high) mm, appearance size is 229.46 (wide) x 149.1 (high) × 4.56 (thick) mm, surface treatment is mirror (Haze 0%), Hard coating, net weight of 160 g (Max.). Backlight aspects of this product uses WLED light source, without backlight driver. The M101NWWB R8 features an LVDS (1ch, 8-bit) signal interface with a total of 40 pins, terminal connection, and drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M101NWWB R8 Category :
- Laptop panel
- Specification
