M101AWT9 R2 10.1 inch WSVGA TN
- Model:
- M101AWT9 R2
M101AWT9 R2 - Related Model
| Model | Version | |
|---|---|---|
| M101AWT9 R2 | Rev.00 |

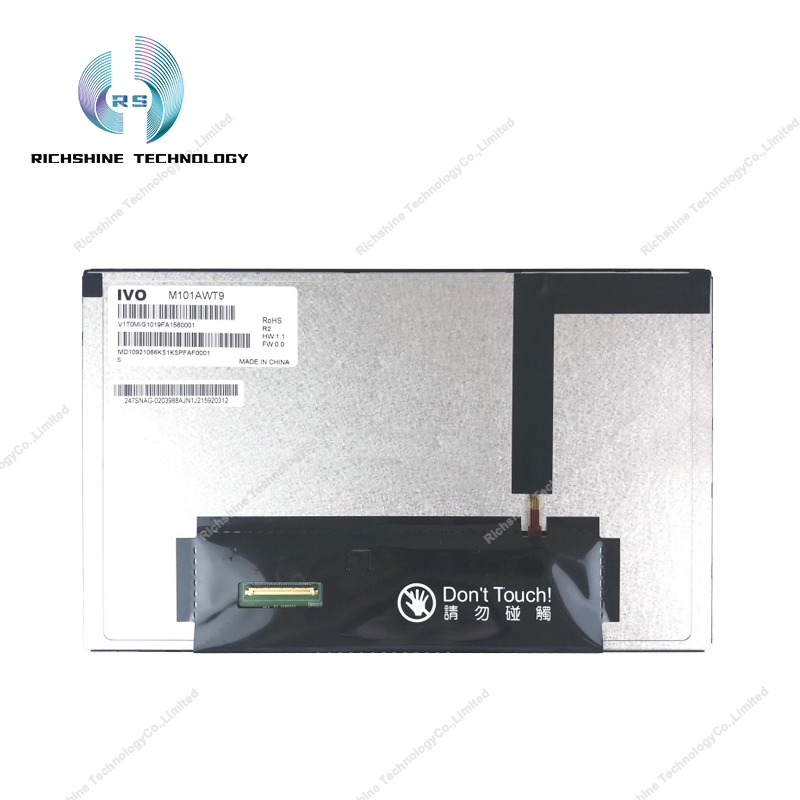

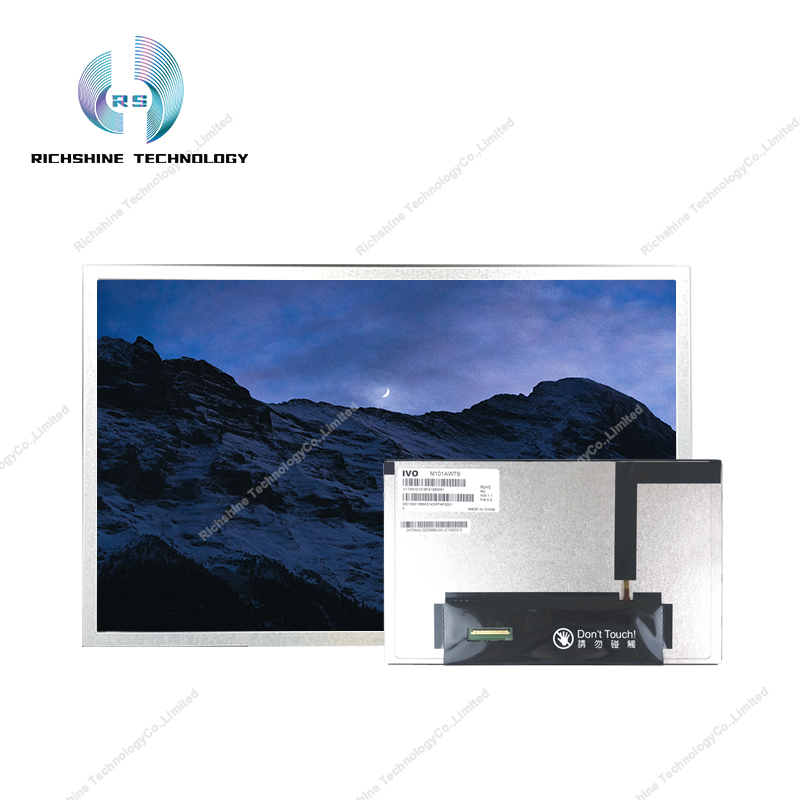

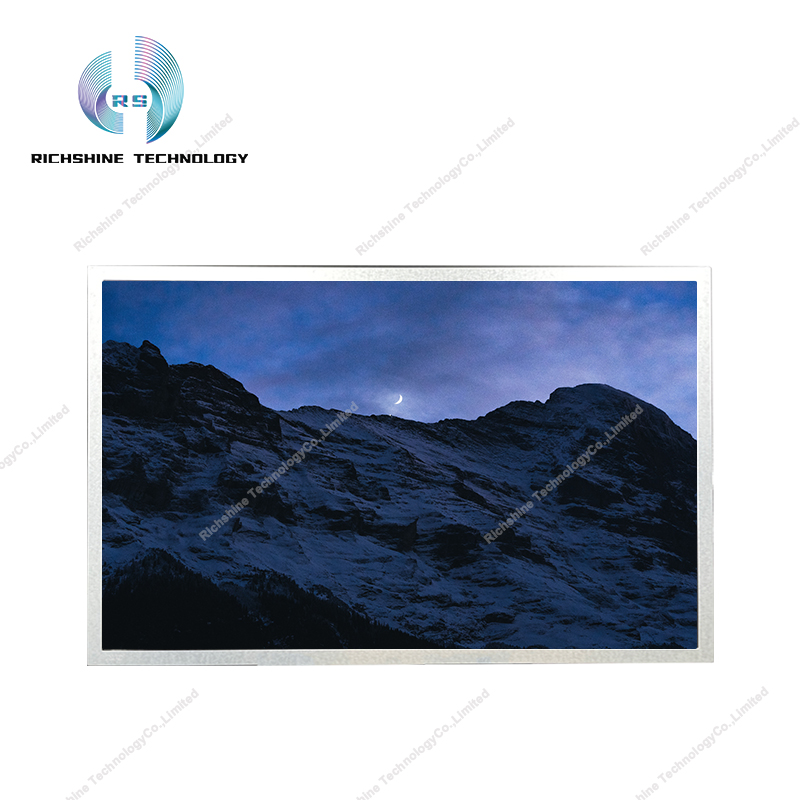

M101AWT9 R2 is a 10.1 inch a-Si TFT-LCD LCD module product launched by Dragon (IVO), it is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -20 ~ 70 ° C, the storage temperature is -30 ~ 80 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: white LED backlight, including LED drive, surface fog. This model is used in products such as vehicle displays.The M101AWT9 R2 has a display resolution of 1024 (RGB) × 600 (WSVGA), an aspect ratio of 16? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 222.72 (width) x 125.28 (height) mm,Exterior size is 235 (wide) x 143 (high) x 8.04 (thick) mm, visible size is 225.72 (wide) × 122.8 (high) mm, surface treatment is haze, Hard coating (3H), net weight of 310 g (Typ.).Backlight aspect of this product uses WLED light source, the service life of the light source is 30K hours, including LED driver. The M101AWT9 R2 features an LVDS (1ch, 8-bit) signal interface with a total of 40 pins, terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M101AWT9 R2 Category :
- Laptop panel
