M101NWRA R2 10.1 inch WXGA IPS
- Model:
- M101NWRA R2
M101NWRA R2 - Related Model
| Model | Version | |
|---|---|---|
| M101NWRA R2 | Rev.00 |

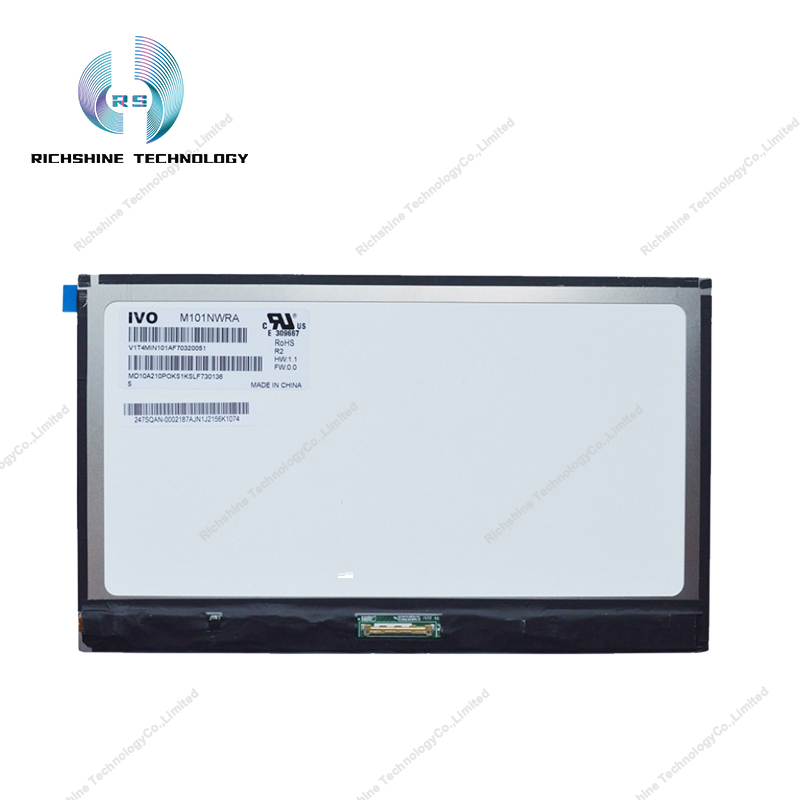

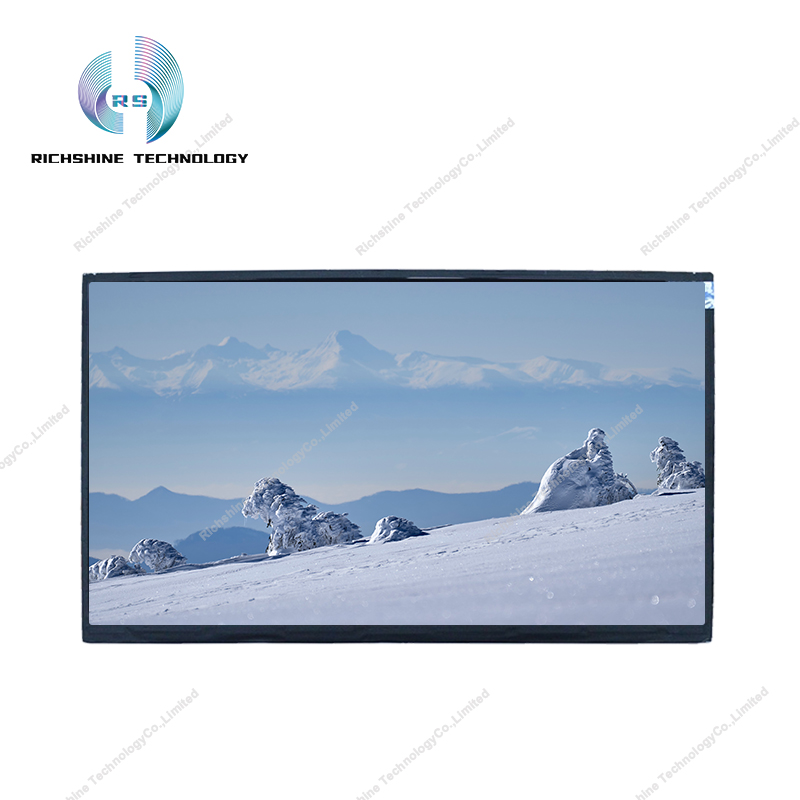

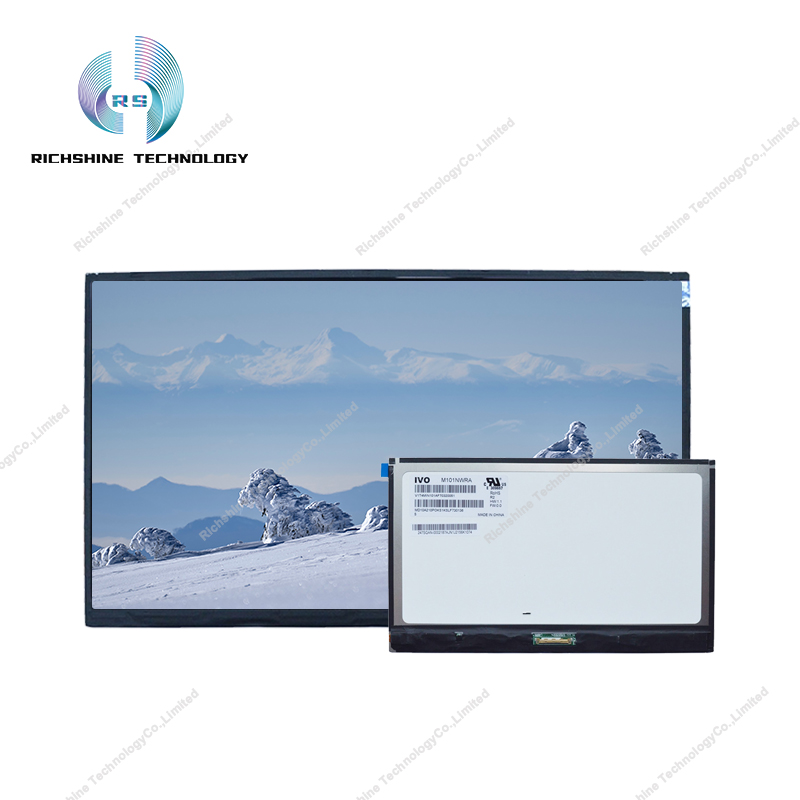

The M101NWRA R2 is a 10.1-inch LCD module product developed by Kunshan Longteng Optoelectronics Co., Ltd. (Longteng, IVO) featuring a-Si TFT-LCD technology. It is equipped with WLED backlighting, lacks a backlight driver, and does not have touch functionality. The display resolution is 1366 (RGB) × 768 (WXGA), with a 16:9 (width: height) aspect ratio and RGB vertical stripe pixel arrangement. Its display area dimensions are 222.52 × 125.11 (width × height) mm, and its physical dimensions are 233.08 × 139 (width × height) × 4.4 (thickness) mm. The surface treatment is matte. The product’s net weight is 135g (Max.). In terms of backlighting, this product utilizes 5S6P WLED-lit side-illuminated sources, with a lifespan of 12K hours. It does not include a backlight driver. The M101NW RA R2 employs LVDS (1 channel, 8-bit) signal interface with a total of 40 pins, using terminal connections, and has a driving voltage of 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz. Its operating temperature range is 0 to 50°C, and its storage temperature range is -20 to 65°C. Given its features such as white LED backlight, terminal inversion, and matte surface treatment, this model is recommended for use in tablets.
- M101NWRA R2 Category :
- Laptop panel
