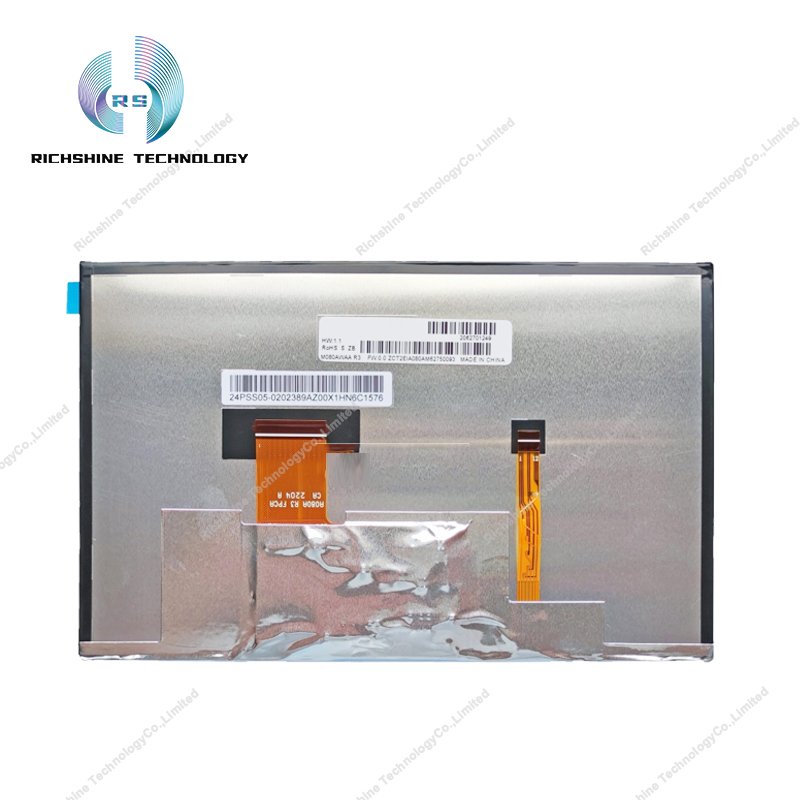

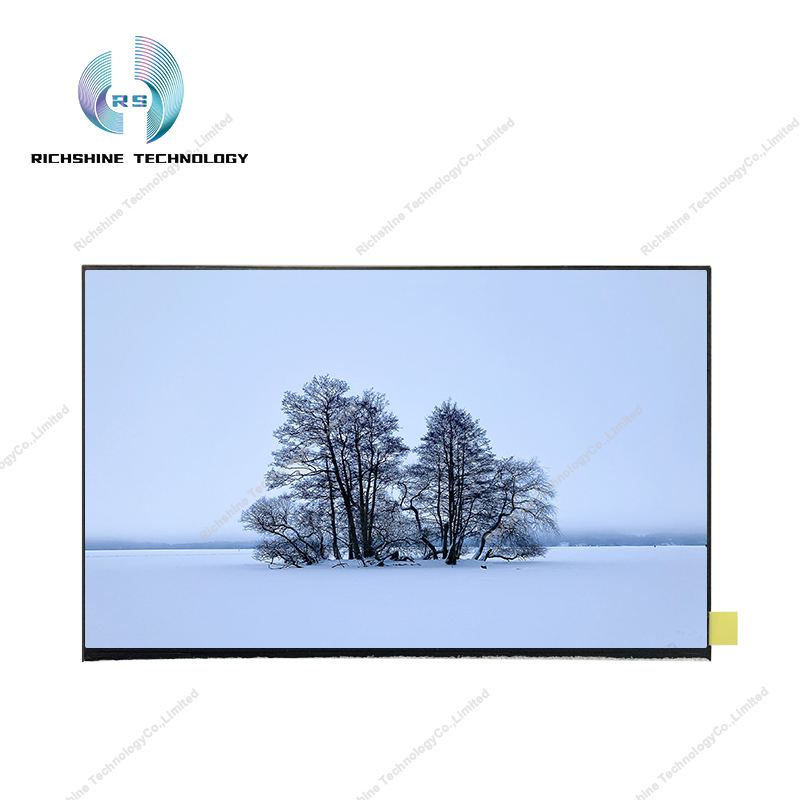

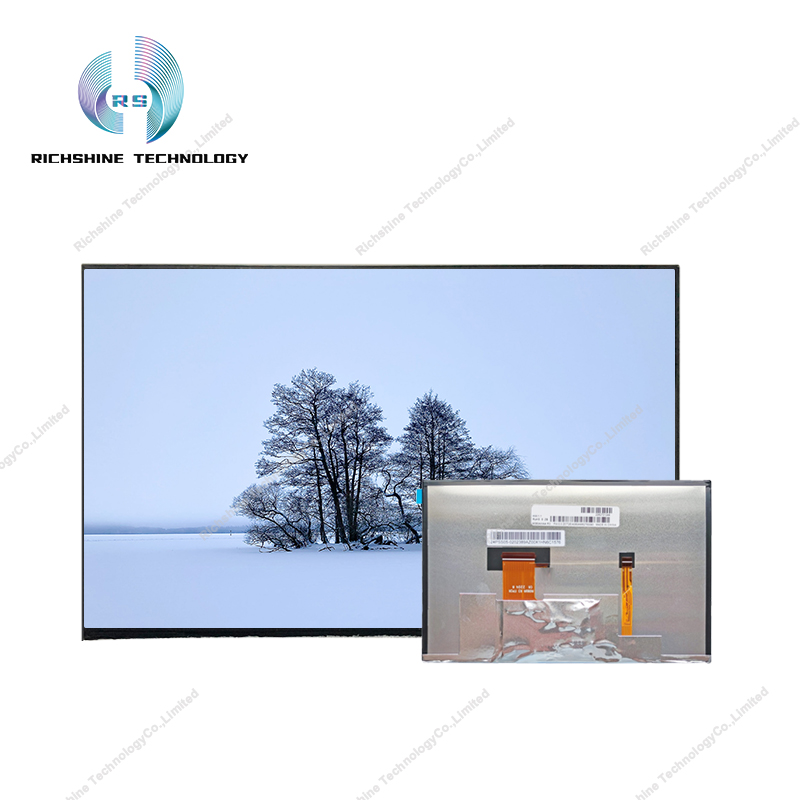

The M080AWAA R3 is a 8.0-inch LCD module developed by Kunshan Longteng Optoelectronics Co. (Longteng, IVO) using a-Si TFT-LCD technology. It is fitted with a WLED backlight, no backlight drive, and no touch.The display has a resolution of 1280 (RGB) × 720 (WXGA), an aspect ratio of 169 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 176.64 × 99.36 (wide × high) mm, visible size is 180.6 × 104.39 (wide × tall) mm, exterior size is 187.2×117.05 (wide × x high) × 8.4 (thick) mm, surface treatment is fog surface, and product net weight is 215 g (Max.). Backlight aspect of this product uses 8S3P WLED light-emitting side light source, the service life of the light source is 30K hours, without backlight drive. The M080AWAA R3 features an LVDS (1ch, 8-bit) + SPI signal interface with a total of 40 pins, a FPC connection, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.Its operating temperature is -30 ~ 85 ° C, storage temperature is -40 ~ 95 ° C, and vibration resistance is 2.9 G (28.4 m / s2).Based on its sRGB, wide temperature, 3G seismic, high brightness, white LED backlight, up / down, left / right flip display, surface fog surface and other characteristics, this model is recommended for outdoor highlight, car display.
