M080AWP9 R0 8.0 inch WVGA TN
- Model:
- M080AWP9 R0
M080AWP9 R0 - Related Model
| Model | Version | |
|---|---|---|
| M080AWP9 R0 | Rev.01 |

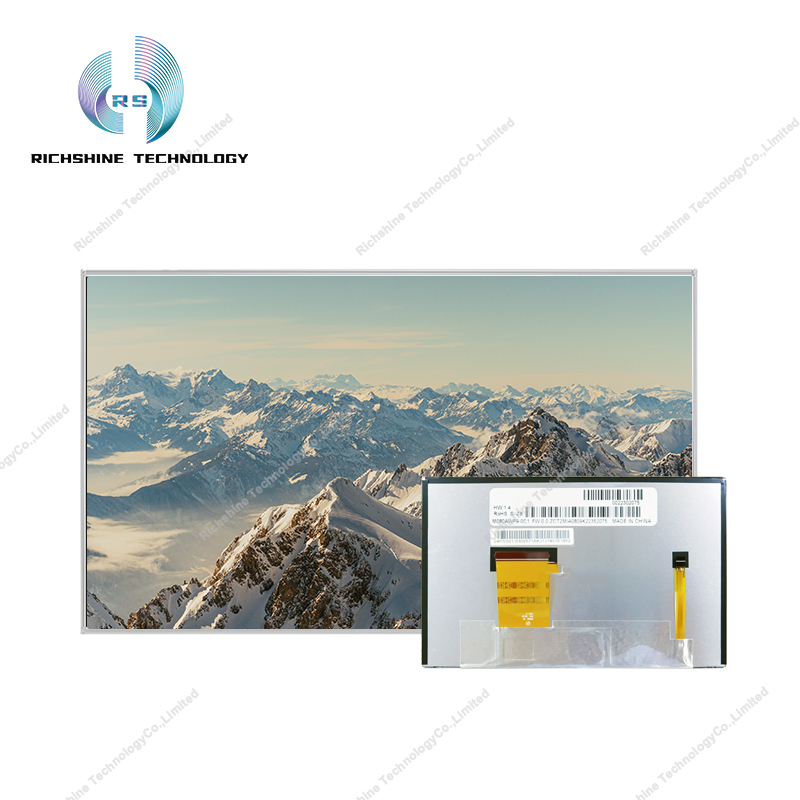

M080AWP9 R0 is a 8.0 inch a-Si TFT-LCD LCD module product introduced by IVO, which is equipped with WLED backlight, no backlight driver, no touch.The working temperature of this product is -30 ~ 85 ° C, and the storage temperature is -40 ~ 95 ° C. Its typical features are: wide temperature, high brightness, white LED backlight, up / down, left / right flip display, surface fog. This model is used in products such as vehicle displays.The M080AWP9 R0 has a display resolution of 800 (RGB) × 480 (WVGA), an aspect ratio of 15? 9 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 175.2 (wide) × 105.12 (high) mm, and its exterior size is 186.5 (wide) × 117.22 (high) × 6.65 (thick) mm,The visual dimension is 177.4 (wide) × 107.32 (high) mm, the surface treatment is fog, the product net weight is 195 / 215 g (Typ. / Max.).The backlight aspect of this product uses a 7S3P WLED light source, the service life of the light source is 30K hours, without backlight drive. M080AWP9 R0 features Parallel RGB (1 ch, 6-bit) Signal interface, a total of 60 pins, using FPC connection, drive screen voltage 3.3 / 10.6 / 22 / -7.0 V (Typ.) (VCC / VDDA / VGH / VGL). Its typical vertical refresh rate Fv is 60 Hz.
- M080AWP9 R0 Category :
- Laptop panel
- Specification
