M043GW32 R2 4.3 inch WQVGA TN
- Model:
- M043GW32 R2
M043GW32 R2 - Related Model
| Model | Version | |
|---|---|---|
| M043GW32 R2 | Rev.00 |

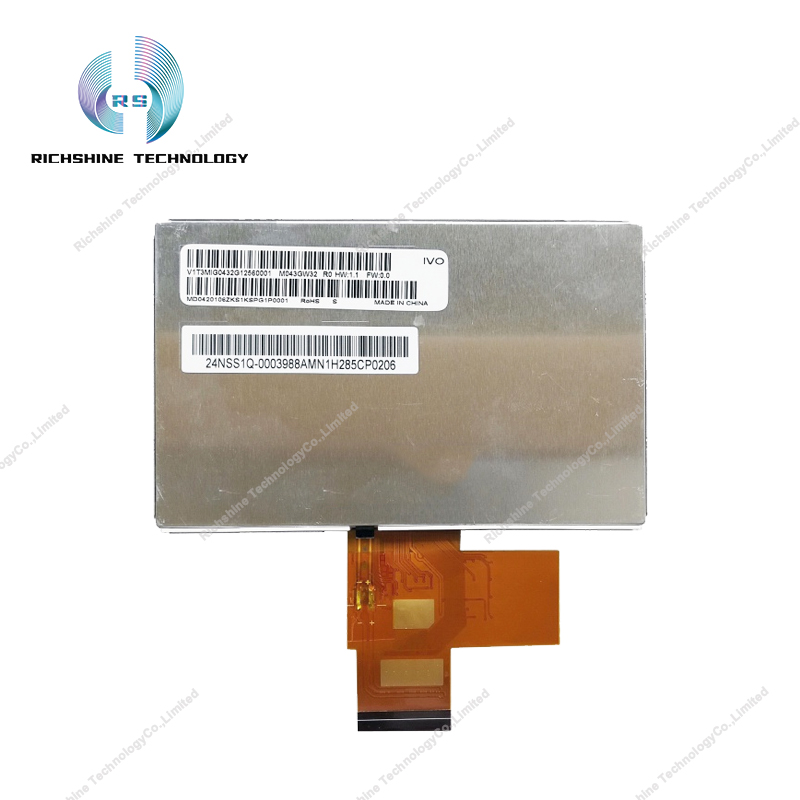

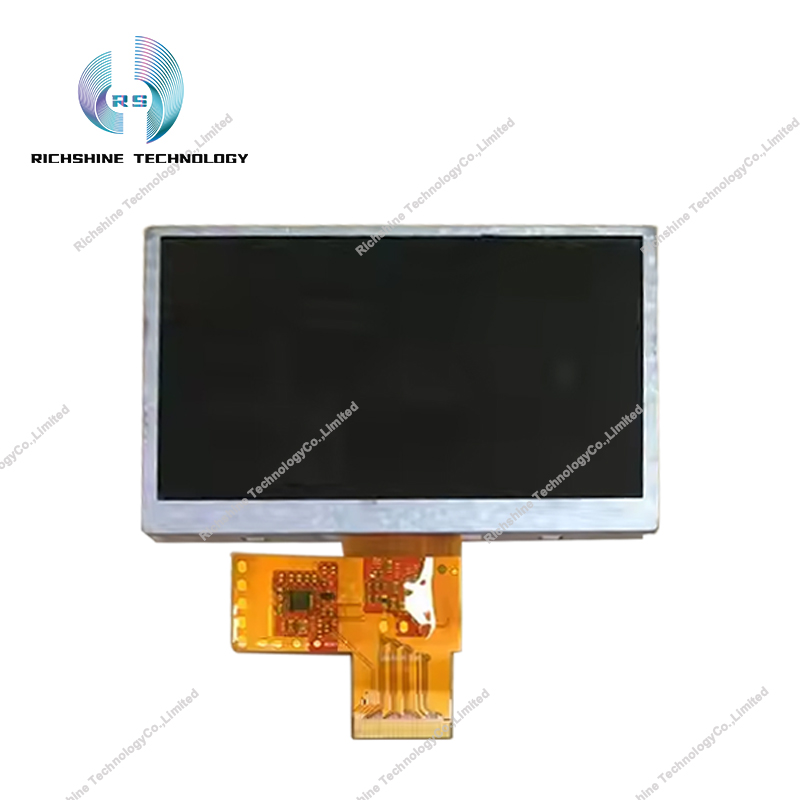

M043GW32R2 is a 4.3-inch LCD module with a-Si TFT-LCD technology introduced by IVO. It is equipped with WLED backlight, no backlight driver, no touch. Its typical features are: wide temperature, 5G seismic, high brightness, white LED backlight, life greater than 50,000 hours, 180 degrees flip display, surface fog.Its working temperature is -30 ~ 85 ° C, storage temperature is -40 ~ 90 ° C, and vibration resistance is 5.0G (49.0m / s2). This model is suitable for use in industrial, robust industrial, and on-board display.Its display area size is 95.04 × 53.856 (width × height) mm, and the visual size is 98.7 × 57.5. (width × height) mm, the appearance size is 105.5 (width) × 67.2 (height) × 5.5 (thickness) mm, the surface treatment is fog, Hard coating (3H), the net weight of the product is 60.0 ± 6.0g.Backlight aspects of this product uses a 9S1P WLED light-emitting side light source, the service life of the light source is 50K hours, without backlight drive. The M043GW32 R2 uses a TTL (1ch, 8-bit) signal interface, a total of 40 pins, FPC connection, drive screen voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
- M043GW32 R2 Category :
- Other
- Specification
