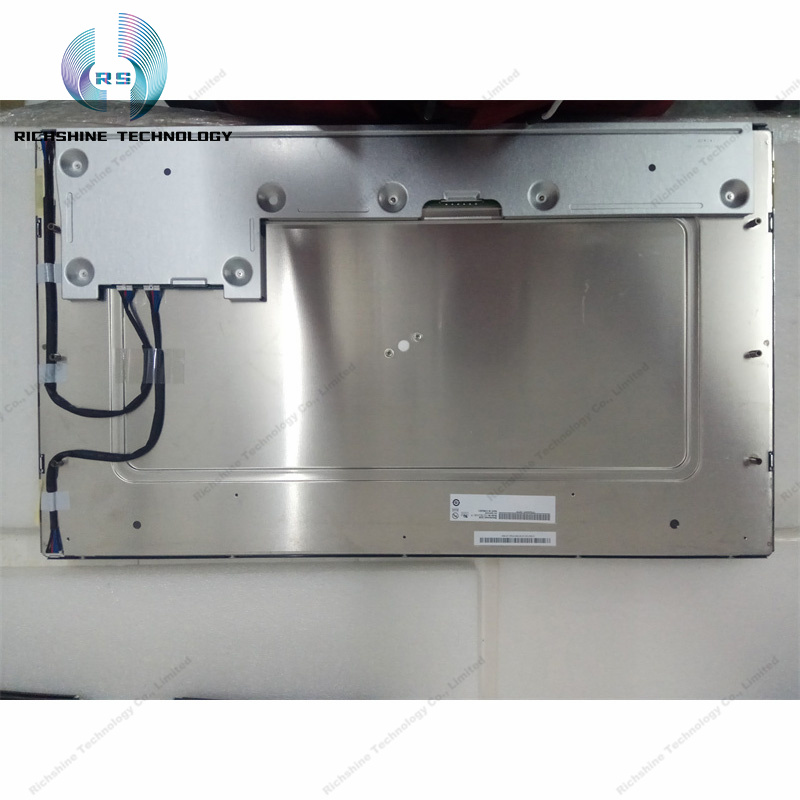

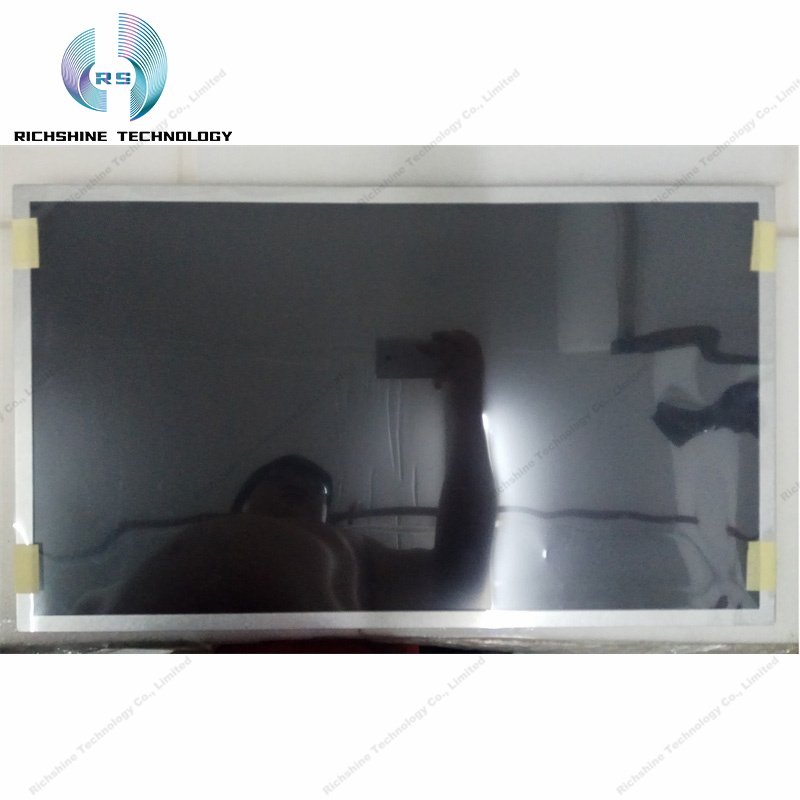

G270HAN01.0 is a 27.0-inch a-Si TFT-LCD LCD module product introduced by AUO. It is equipped with WLED backlight, backlight driver with LED driver, no touch.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: DCI-P3, sRGB, ultra-high brightness, white LED backlight, life of more than 50,000 hours, including LED driver, terminal flip, 10 gray scale, surface fog. Based on its feature screen library, this model is recommended for use in industrial, medical imaging, outdoor brightening and other products.The G270HAN01.0 displays a resolution of 1920 (RGB) × 1080 (FHD) and an aspect ratio of 16? 9 (W: H). The pixels are arranged in RGB vertical strips.Its display area size is 597.888 (wide) × 336.312 (high) mm, appearance size is 630 (wide) x 368.2 (high) x 23.4 (thick) mm, visual size is 602 (wide) − 34.4 (high) mm, surface treatment is fog surface, and product net weight is 3.40 kgs (Typ.).Backlight side of this product uses WLED light source (top and bottom), the service life of the light source is 50K hours, including LED drive. The G270HAN01.0 uses an LVDS signal interface, a total of 51 pins, using terminal connection, drive screen voltage of 12.0V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
