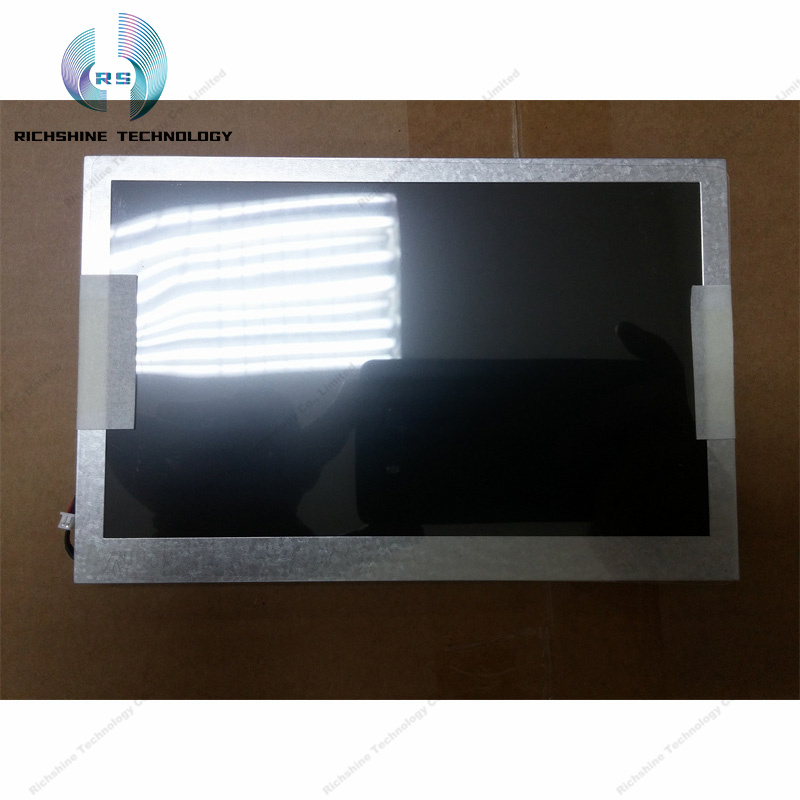

G065VN01_V221 (alias: G065VN01 V.2) is a 6.5-inch a-Si TFT-LCD liquid crystal module product from AUO that is fitted with WLED backlighting, LED-powered backlighting and touchless. Its typical characteristics are: wide temperature, high brightness, white LED backlighting, life of more than 70,000 hours, including LED drive, top / bottom, left / right flip display, 6 / 8 bit grey scale optional, surface fog surface.The display has a resolution of 640 (RGB) × 480 (VGA), an aspect ratio of 4: 3 (width: height), and pixels are arranged in RGB vertical strips. Its display area size is 132.48 (width) x 99.36 (height) mm,Exterior size is 153 (wide) x 18 (high) x 1.2 (thick) mm, visible size 135.9 (wide) × 10.8 (high) mm, surface treatment is fog surface, Hard coating (3H), anti-reflection treatment, net weight of 170 g (Typ.). Backlight aspect of this product uses WLED light source (bottom), the service life of the light source is 70K hours, including LED driver. The G065VN01 V221 features an LVDS (1ch, 6 / 8-bit) signal interface with a total of 20 pins, terminal connection, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.The working temperature of this product is -30 ~ 80 ° C, the storage temperature is -30 ~ 80 ° C, and the vibration resistance is 1.5G (14.7m / s2).This model is used in industrial, outdoor bright products, etc.
