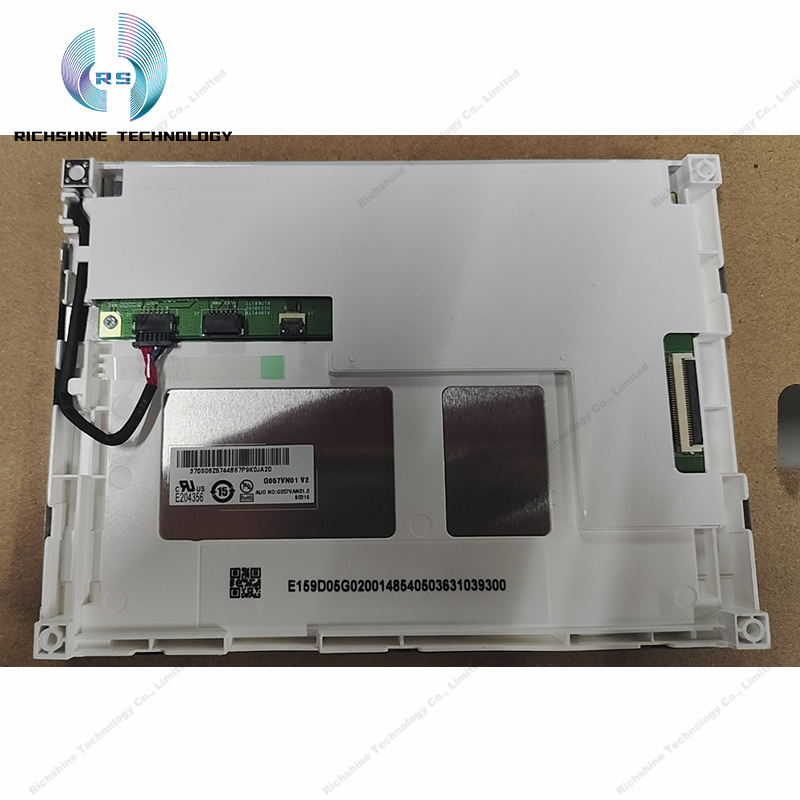

G057VN01 V2 5.7 inch

Brand: AUO

Model: G057VN01

Panel Type:a-Si TFT-LCD

Panel structure:LCM

panel size: 5.7"

Pixels H X V: 640*480

Display Color: 262K

Vertical Frequency: 60Hz

Response Time:10 ms

Signal voltage:3.3V

Interface Type: CMOS

View Angle:80/80/70/70

Color Space:NTSC 50%

Brightness: 700 cd/m²

Contrast Ratio:800:1

Power Dissipation: 3.74

Backlight voltage: 9.0/12.0/20.0

Backlight Life Time:50,000

Physical size : 105(H)×145(V)×12(D) mm

T-con board:Dorsal fold

Touch: No

Weight: 150.000 g

Temperature Range:Operating Temp.:-30 °C ~ 85 °C ; Storage Temp.:-30°C ~ 85 °C

Model:: G057VN01

G057VN01 - Related Model

Model	Version	PDF
G057VN01 V220	Ver1.1
G057VN01 V220
G057VN01

057VN01 V220 supports display 640(RGB)×480 (VGA) with aspect ratio of 4:3 (W:H), whose pixels are arranged in RGB Vertical Stripe. As for mechanical detail, it features active area of 115.2(W)×86.4(H) mm, outline size of 144(W)×104.6(H)×12.8(D) mm, viewing area size of 118.2(W)×89.4(H) mm, with surface treament of Antiglare, Hard coating (3H), net weight of 150/165g (Typ./Max.). As a AHVA, Normally Black, Transmissive LCM product, G057VN01 V220 can provides 700 cd/m² display brightness 1000:1 transimissive contrast ratio, 89/89/89/89 (Typ.)(CR≥10) (L/R/U/D) viewing angle, best view direction on Symmetry , and response time of 15/10 (Typ.)(Tr/Td) ms. Gray scale or the brightness of the sub-pixel is determined with a 6-bit gray scale signal for each dot, thus presenting a palette of 262K colors, also with performance of color gamut 50% (NTSC). This product adopted WLED as it's backlight systerm which was placed as Edge light type and have a working life time of 70K hours, With LED Driver. G057VN01 V220 utilizes CMOS (1 ch, 6-bit) as it's signal inputting systerm, which connected by 33 pins Connector with power supply voltage of 3.3V (Typ.). It's typical vertical frame rate (Fv) is 60Hz.

G057VN01 Category :: Other
