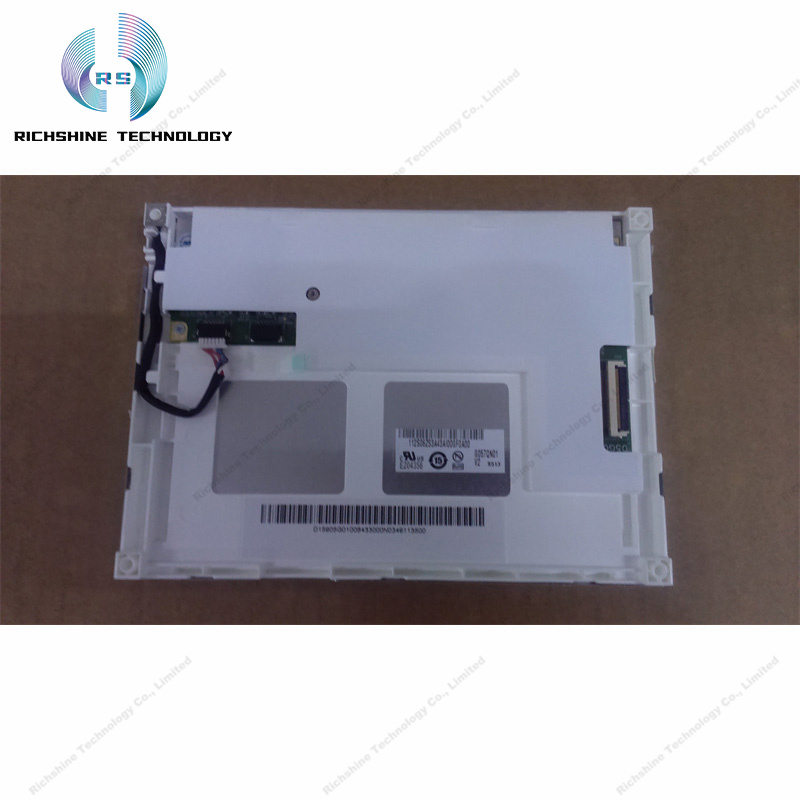

G057QN01 V2 5.7 inch QVGA 320x240

Brand: AUO

Model: G057QN01 V2

Panel Type:a-Si TFT-LCD

Panel structure:LCM

panel size: 5.7"

Pixels H X V: 320*240

Display Color: 262K

Vertical Frequency: 60Hz

Response Time:10/15 ms

Signal voltage:3.3V

Interface Type: CMOS

View Angle:80/80/70/70

Color Space:NTSC 50%

Brightness: 800cd/m²

Contrast Ratio:800:1

Power Dissipation: 3.34W

Backlight voltage: 25.6/29.2V

Backlight Life Time:50,000

Physical size : 104.6(H)×144(V)×12.3/12.8(D) mm

T-con board:Dorsal fold

Touch: No

Weight: 150.000 g

Temperature Range:Operating Temp.:-30 °C ~ 85 °C ; Storage Temp.:-30°C ~ 85 °C

Model:: G057QN01 V2

G057QN01 V2 - Related Model

Model	Version	PDF
G057QN01 V2	Ver1.2
G057QN01 V210	Ver0.4
G057QN01 V2

G057QN01 _ V2 is a 5.7-inch a-Si TFT-LCD LCD module product introduced by AUO. It is equipped with WLED backlight, including LED driver backlight driver, no touch.The working temperature of this product is -30 ~ 85 ° C, the storage temperature is -30 ~ 85 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: wide temperature, high brightness, backlight easy to change, white LED backlight, life is greater than 50,000 hours, including LED driver, up / down, left / right flip display, surface fog surface. This model is used in industrial, outdoor bright products, etc.The G057QN01 V2 has a display resolution of 320 (RGB) × 240 (QVGA) and an aspect ratio of 4: 3 (width: height). The pixels are arranged in RGB vertical strips. Its display area size is 115.2 (wide) x 86.4 (high) mm, and its exterior size is 144 (wide) x 104.6 (high) x 12.8 (thick) mm,Visual dimension is 118.2 (W) × 89.4 (H) mm, surface treatment is fog, Hard coating (3H), product net weight 150 / 165 g (Typ. / Max.). Backlight side of this product uses WLED light source, the service life of the light source is 50K hours, including LED driver. The G057QN01 V2 uses a CMOS (1ch, 6-bit) signal interface with 33 pins in total, with terminal connections and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 60 Hz.
