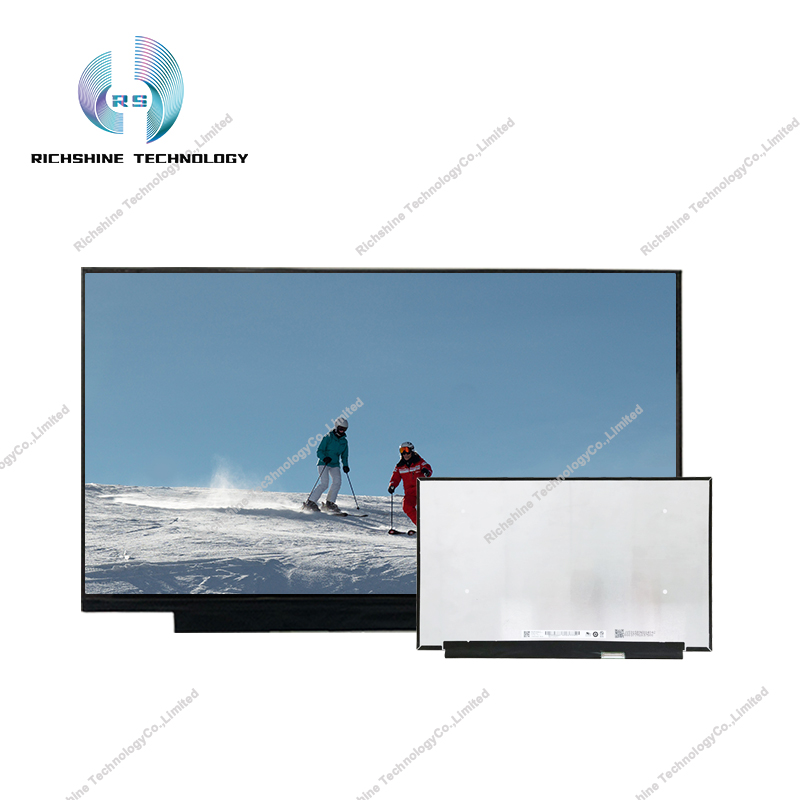

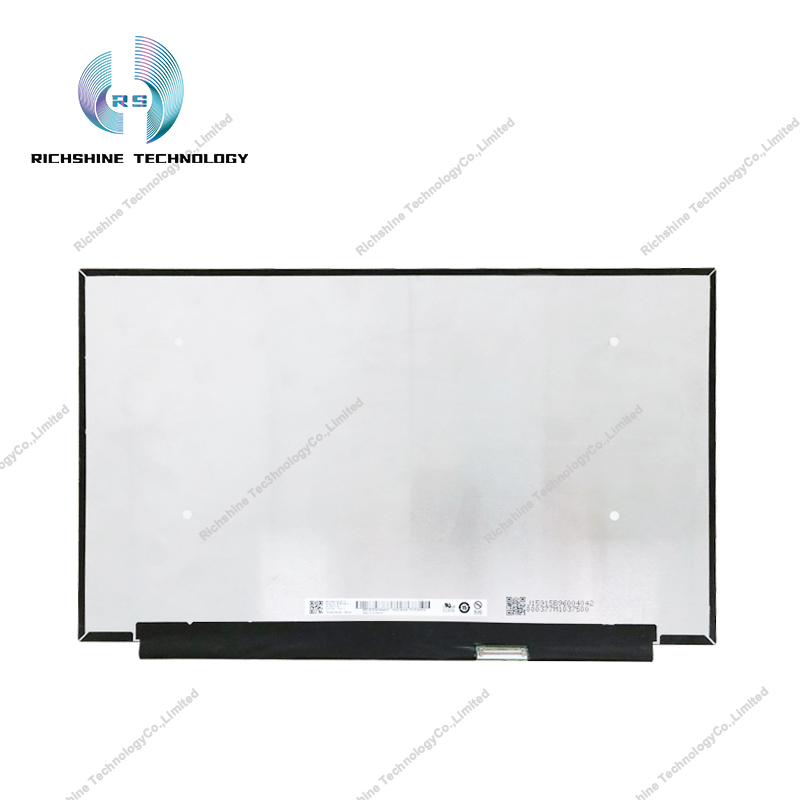

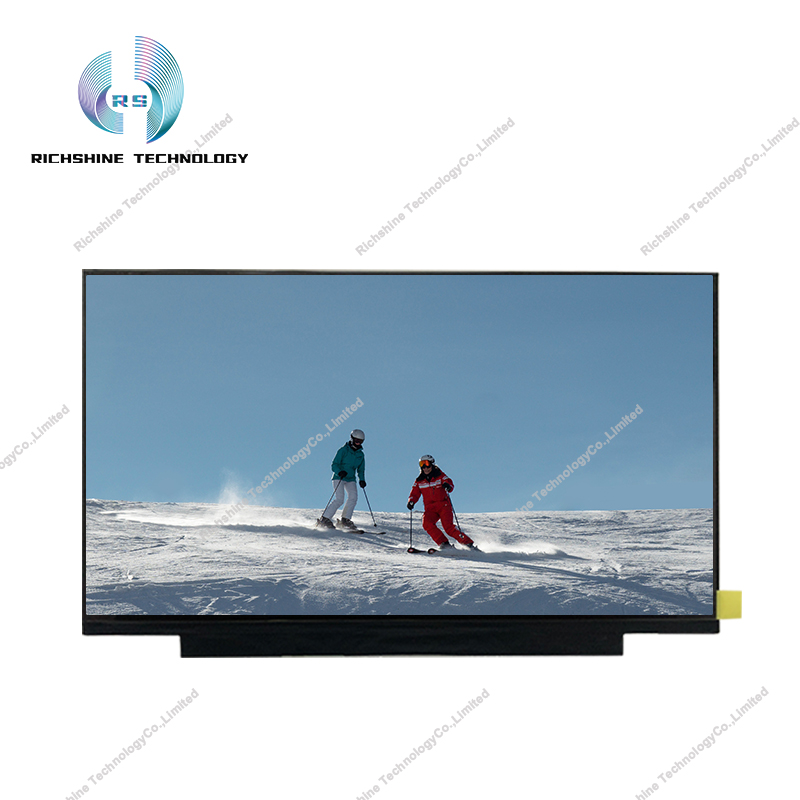

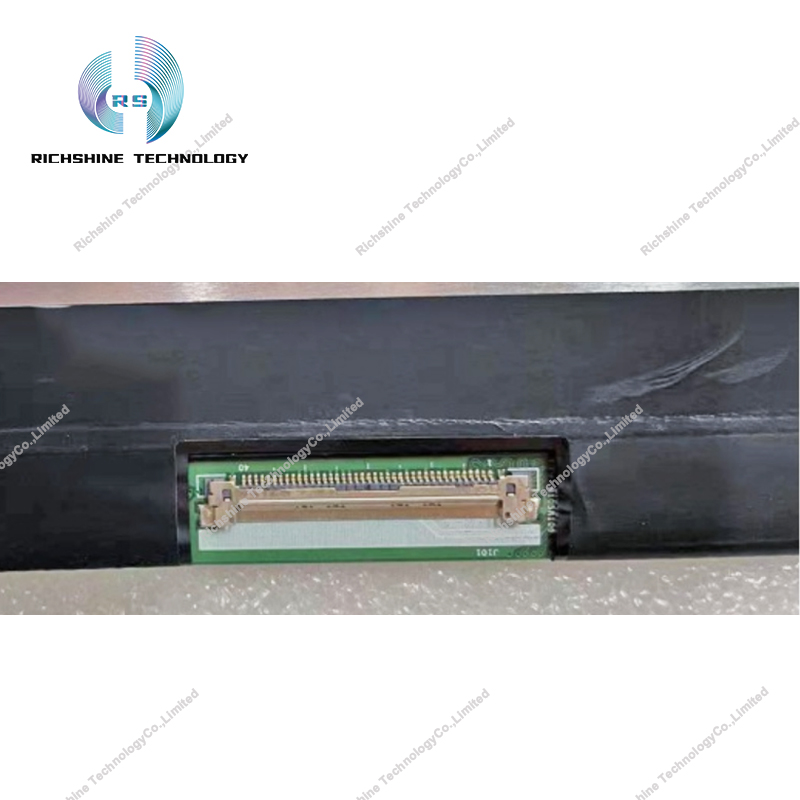

B156HAN10.2 (Product Code: AUO048E) is a 15.6-inch a-Si TFT-LCD liquid crystal module product from AUO that is fitted with WLED backlighting, LED-powered backlighting and touchless.The working temperature of this product is 0 ~ 50 ° C, the storage temperature is -20 ~ 60 ° C, and the vibration resistance is 1.5G (14.7m / s2). Its typical features are: 240 Hz, white LED backlight, including LED driver, terminal flip, 10-bit gray scale, surface fog, 240 Hz, HDR, Adobe RGB. This model is recommended for laptops, games. As an AHVA, constant black display, transmission liquid crystal module product, B156HAN10.2 can provide 500cd / m2 display brightness 1000: 1 transmission contrast,And 85 / 85 / 85 / 85 (Typ.) (CR ≥ 10) (left / right / up / down) viewing angle. The best viewing angle is the full viewing angle, which has a response time of 9 (Typ.)(Tr+Td), 3 (Typ.)(G to G)(OD) ms。Thanks to the 8-bit + Hi-FRC grayscale signal per pixel, this product can display 1.07B color, and its display color saturation reaches 100% (Adobe). Backlight aspect of this product uses WLED light source, the service life of the light source is 15K hours, including LED driver. The B156HAN10.2 features an eDP (4 Lanes) signal interface, 40 pins in total, with terminal connections, and a drive voltage of 3.3 V (Typ.). Its typical vertical refresh rate Fv is 240 Hz.
