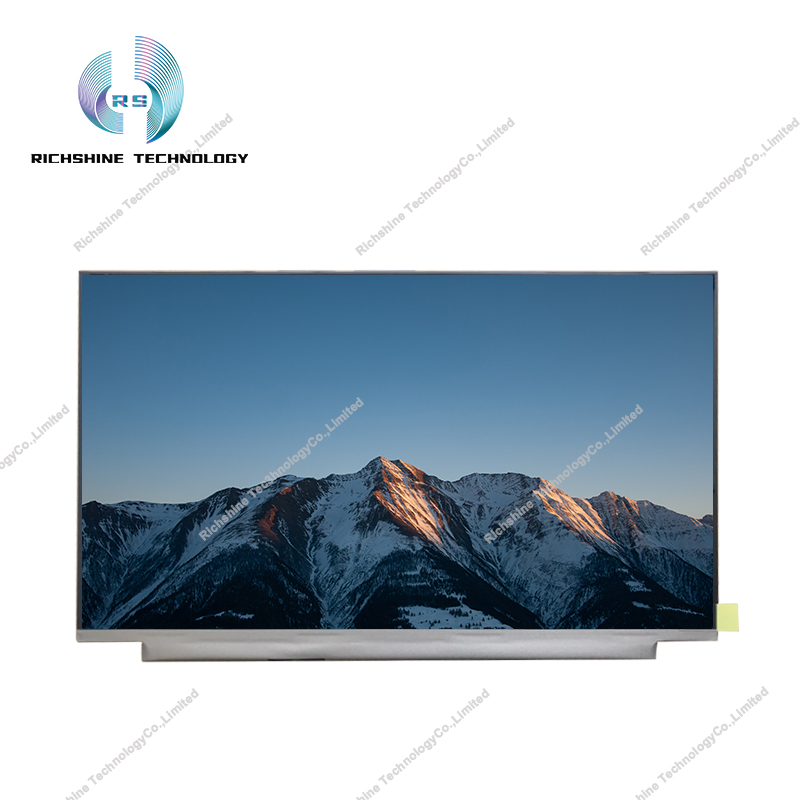

B156HAN08.2_2A (product code: AUO82ED) is a 15.6-inch a-Si TFT-LCD liquid crystal display module produced by AUO. It features WLED backlighting, including an LED driver for the backlight, and is non-touch. The operating temperature range is 0 to 50°C, the storage temperature range is -20 to 60°C, and it is resistant to vibrations with a vibration tolerance of 1.5G (14.7 m/s²). Its typical characteristics include: 144Hz, white light LED backlight, with an LED driver, reverse-mounted terminals, matte surface finish, eDP1.4, 144Hz. This model is used in laptops, gaming devices, and other products. B156HAN08.2 has a display resolution of 1920 (RGB) × 1080 (FHD), a 16:9 aspect ratio (width: height), with RGB vertical stripe pixel arrangement. The display area dimensions are 344.16 (width) × 193.59 (height) mm, and the physical dimensions are 350.66 (width) × 216.15 (height) × 2.8 (thickness) mm. The surface treatment is matte. The product weighs 310g (max.). The appearance style is thin (PCBA flat, thickness ≤3.2mm). In terms of backlighting, this product uses WLED-lit side-illumination sources. The lifespan of the light source is 15K hours, with an LED driver included. B156AN08.2 uses an eDP (4 lanes) signal interface, with a total of 40 pins and is connected via terminals. The driving voltage for the screen is 3.3/3.6V (min./max.). Its typical vertical refresh rate Fv is 144Hz.
