ZE121BC-02A 12.1 inch XGA IPS
- Model:
- ZE121BC-02A
ZE121BC-02A - Related Model
| Model | Version | |
|---|---|---|
| ZE121BC-02A | Final V0.2 |

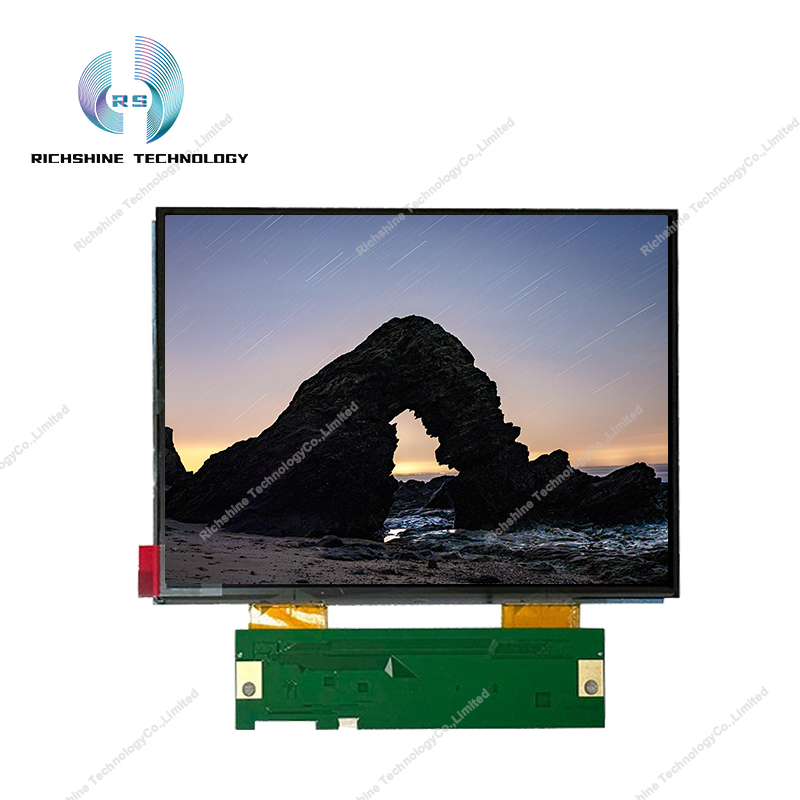

The ZE121BC-02A is a 12.1-inch liquid crystal glass product from Innolux that employs a-Si TFT-LCD technology. It lacks a backlight and touch functionality. Its typical features include wide temperature range, top/bottom, left/right flip display, 6/8-bit gray scale options, matte surface finish, and air bonding is recommended. Its operating temperature range is -30 to 80°C, and the storage temperature range is -30to 80°C. This model is suitable for use in vehicle displays. The product has been bonded with 2 source chips driving ICs. The ZE121BC-02 A has a display resolution of 1024 (RGB) × 768 (XGA), a 4:3 (width: height) aspect ratio, and RGB vertical bar-shaped pixel arrangement. Its display area dimensions are 245.76 × 184.32 (width × height) mm, and the physical dimensions are 256.18 (width) × 196.9 (height) × 1.27 (thickness) mm. The surface treatment is matte. The product weighs 157g (typical). It uses a glass substrate with a thickness of 0.50 + 0.50 mm. The product does not have a backlight. The ZE121 BC-02A utilizes an LVDS (1 channel, 6/8-bit) signal interface with a total of 20 pins, connected via terminals, and a driving voltage of 3.3V (typical). Its typical vertical refresh rate Fv is 60Hz.
- ZE121BC-02A Category :
- Laptop panel
- Specification
